Plastic Film Inspection
Plastic Film Surface Inspection
Plastic films are widely used in industries such as flexible packaging, food packaging, medical packaging, industrial materials, and agricultural films. These films are typically produced through continuous manufacturing processes such as extrusion, casting, coating, and laminating, where thin plastic layers are formed into large rolls of material.
Because plastic films are used in applications that require high reliability and visual quality, maintaining consistent surface integrity is essential. Defects such as holes, gels, contamination, scratches, coating defects, or thickness variations can affect product performance and lead to quality issues in downstream applications.
Lucid Imaging provides machine vision solutions designed for surface inspection of plastic films during manufacturing and converting processes. The system continuously monitors the moving film web and detects defects in real time, enabling manufacturers to maintain stable production processes and ensure consistent product quality.
inspection systems
Where This Inspection Is Used
Plastic film inspection systems are used in plastic film manufacturing plants and converting facilities where films are produced and processed at high speeds.
Typical inspection applications include:
Inspection Applications
- Inspection of plastic film during extrusion processes
- Detection of defects during coating or laminating operations
- Monitoring of film surface quality during roll-to-roll production
- Inspection of film during converting processes
Deployment Areas
- Flexible packaging films
- Barrier films for food and medical packaging
- Industrial plastic films
- Agricultural films
Automated inspection enables manufacturers to maintain high-quality film production across large volumes of material.
Inspection Scope
Verifying Surface Defects, Coating Integrity, and Uniformity
The Plastic Film Surface Inspection System verifies surface integrity, coating quality, and material consistency.
Typical inspection scope includes:
Surface Defect Detection
Holes or tears in the film
Scratches or surface marks
Gel particles or inclusions
Wrinkles or folds in the film web
Contamination Detection
Dirt or dust on the film surface
Embedded foreign particles
Contamination introduced during production
Coating & Lamination Inspection
Coating streaks or irregularities
Uneven coating distribution
Defects caused during laminating processes
Material Consistency Monitoring
Verification of film uniformity across the web
Detection of process-related surface variations
Monitoring of material consistency during production
These inspections ensure that plastic films meet the required quality standards for packaging, industrial, or specialty material applications.
System Architecture
Optimized Architecture for Precision Defect Detection

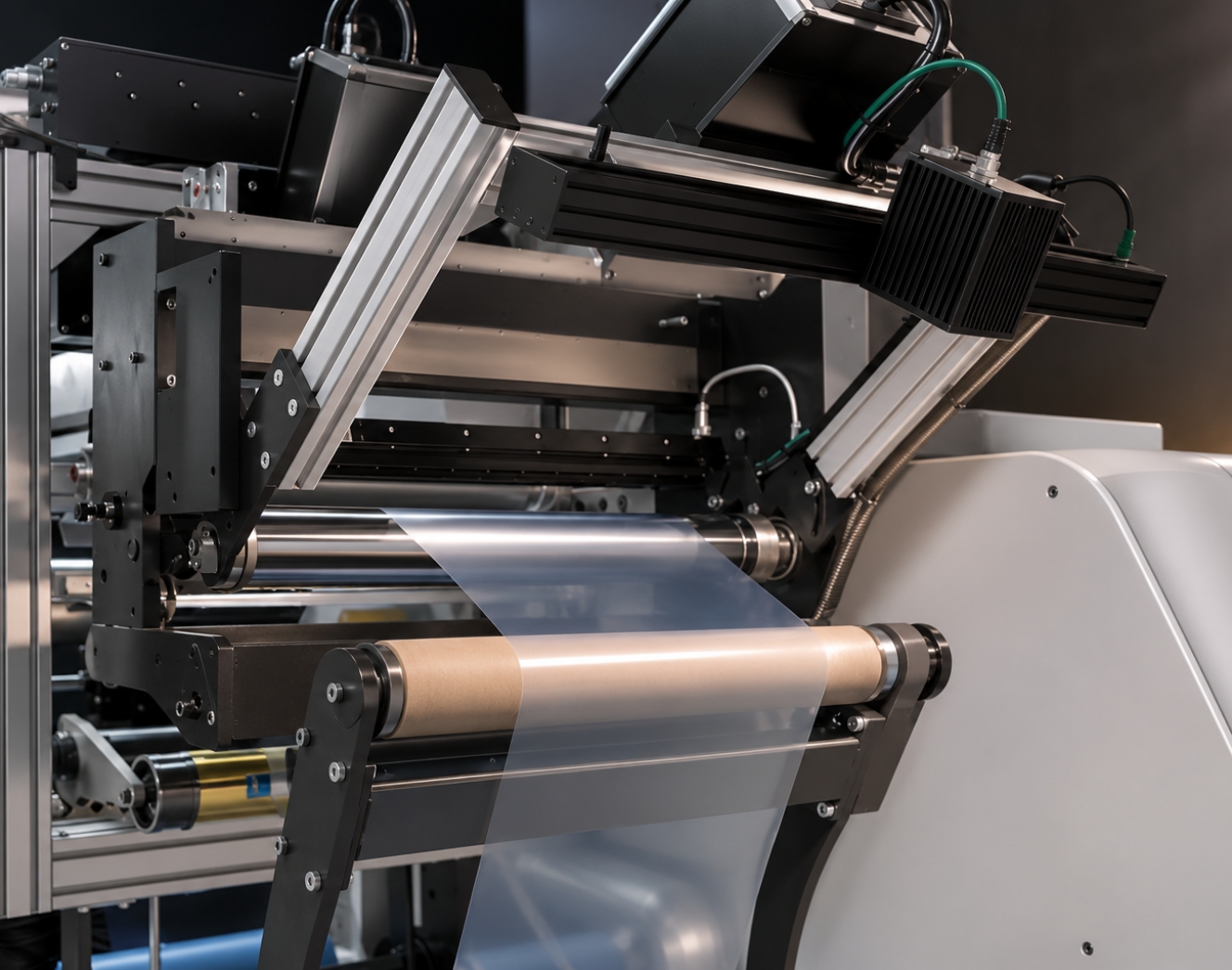

The Plastic Film Surface Inspection System is designed for continuous inspection in high-speed film manufacturing environments.
Line-Scan Camera Modules
High-resolution line-scan cameras capture detailed images of the moving film web across its full width.
Precision Illumination System
Specialized lighting systems highlight surface defects and variations in transparent or reflective film materials.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and identifies defects based on predefined detection parameters.
System Processing Unit
A high-performance processing system manages image acquisition, defect detection algorithms, and communication with the production line.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.
Key System Capabilities
The Plastic Film Inspection System provides capabilities designed for high-speed film production lines:
- Continuous inspection of plastic film during production
- Detection of holes, gels, and surface defects
- Monitoring of coating and lamination quality
- Automated defect classification and reporting
- Real-time alerts for production issues
- Statistical monitoring of film production quality
These capabilities allow manufacturers to maintain consistent film quality and stable production processes.
Integration with Film Production Lines
The inspection system integrates with plastic film extrusion, coating, and converting equipment.
Typical integration features include:
- Installation of camera modules across the film web
- Synchronization with web speed and line encoders
- Communication with extrusion or coating line control systems
- Automatic tracking of detected defects
This integration allows inspection to operate seamlessly within plastic film production workflows.

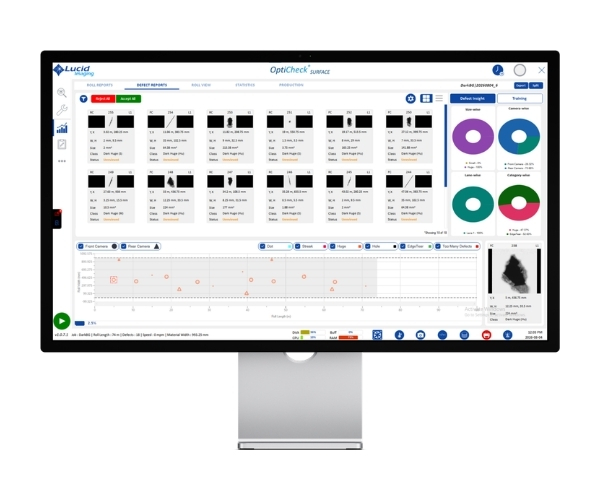

Operator Interface & Workflow
The operator interface provides tools for monitoring inspection results and maintaining film production quality.
Key features include:
- Real-time visualization of inspected film areas
- Defect image display and classification
- Configurable inspection parameters and thresholds
- Defect mapping across the film width
- Production statistics and inspection reports
Operators can quickly identify defect patterns and adjust production parameters to maintain stable film quality.
Benefits
Ensuring Reliable and High-Quality Film Output
Implementing a Plastic Film Surface Inspection System provides several advantages for film manufacturers:
01
Early detection of defects during film production
02
Improved monitoring of extrusion and coating processes
03
Reduced waste and defective material
04
Improved consistency of film products
05
Enhanced quality assurance for downstream applications
By inspecting the film surface continuously during production, manufacturers can ensure that only high-quality plastic film proceeds to packaging, industrial, or specialty applications.
