Lottery Inspection System – Inline Printing Press
Lottery tickets are security-sensitive printed products used in regulated gaming systems. Each ticket typically contains unique identifiers, validation codes, barcodes, and variable data that must be printed accurately to ensure the integrity of the lottery system.

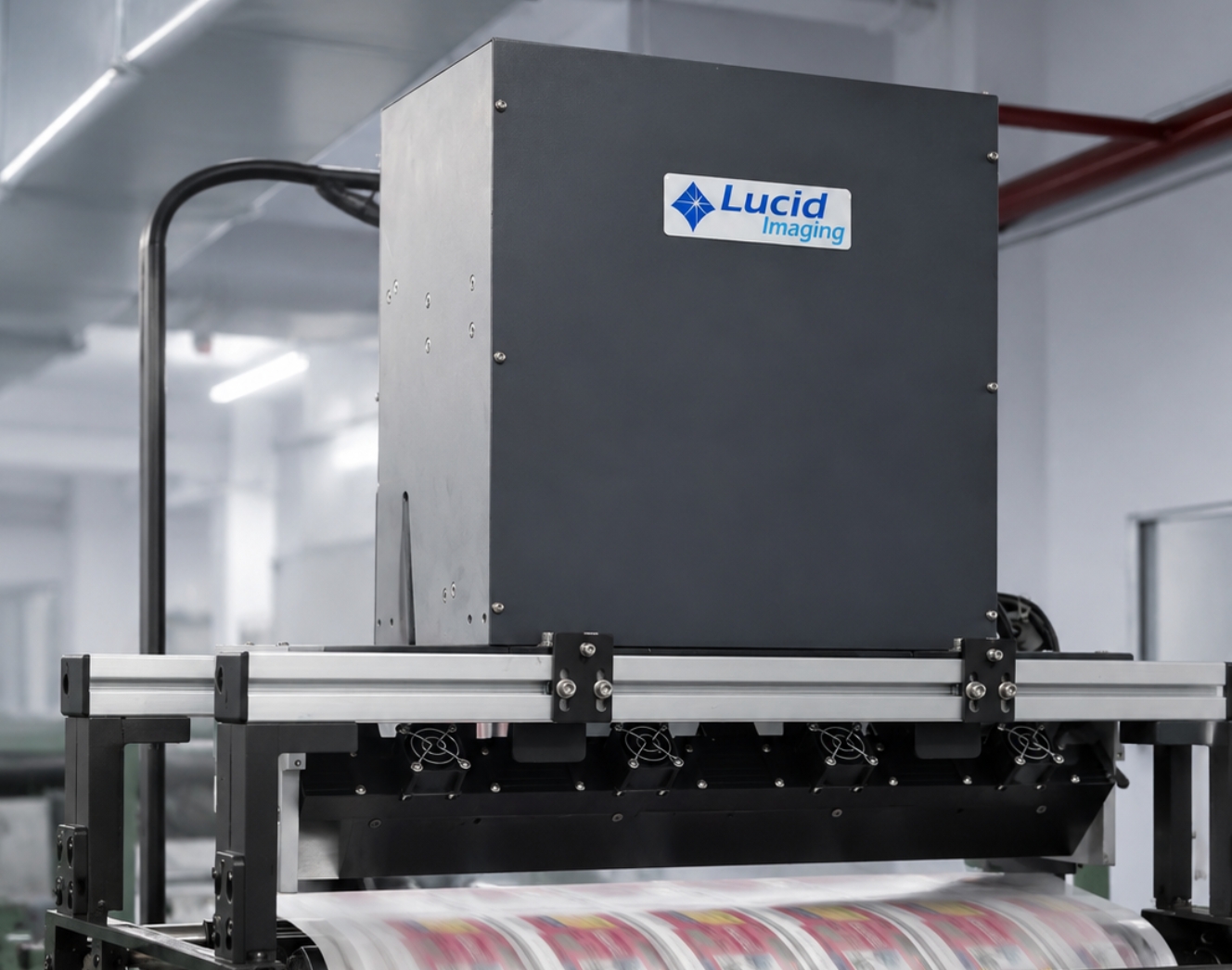

Lucid Imaging’s Lottery Inspection System – Inline Printing Press enables automated inspection of lottery tickets during the printing process. Installed directly on the printing press, the system continuously monitors printed tickets and verifies both print quality and variable data accuracy. By detecting defects and data errors in real time, the system ensures that only valid and correctly printed tickets proceed through the production workflow.
This automated inspection helps lottery ticket manufacturers maintain strict quality standards and prevent defective tickets from entering the distribution chain.
Printing Stage
Where This Inspection Is Used
Inspection is performed during the lottery ticket printing process, where artwork design, and variable data are printed onto sheets or continuous webs.
At this stage, the inspection system captures images of printed tickets and verifies that both the visual elements and variable information are printed correctly.
Inline Monitoring
- Verify the accuracy of variable numbers and codes
- Detect printing defects in ticket artwork
- Monitor barcode readability and validation codes
- Prevent defective tickets from continuing through production
This stage is essential for maintaining data integrity and print quality in lottery ticket production.
Inspection Scope
Comprehensive Print, Data, and Code Verification
The Lottery Inspection System verifies print quality, artwork consistency, and variable data accuracy on printed lottery tickets.
Typical inspection scope includes:
Print Quality Inspection

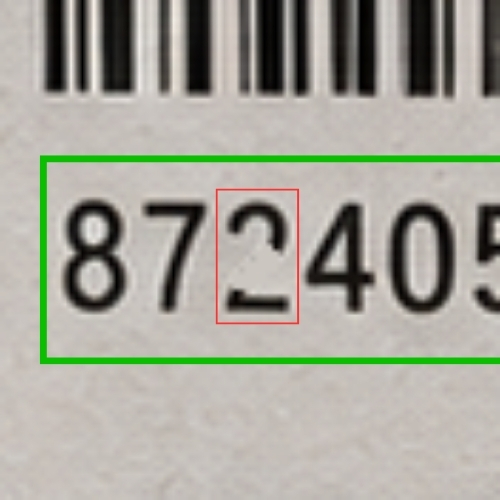

Missing print detection

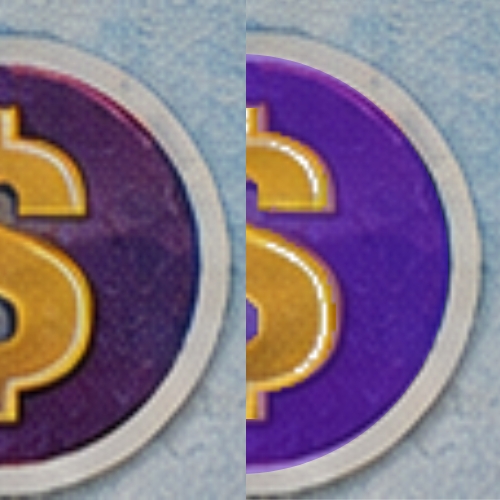

Colour variations and ink inconsistencies
Smudged or distorted graphics

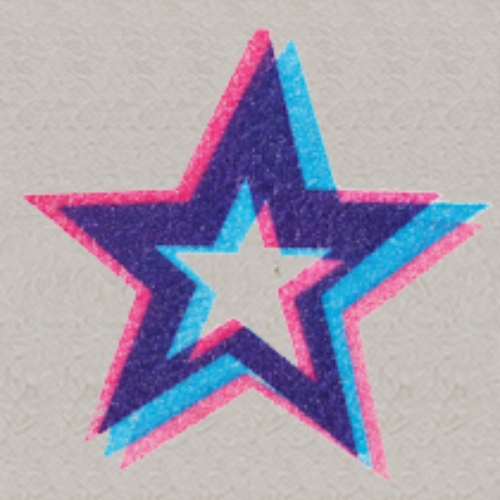

Detection of printing defects or mis-registration
Artwork & Design Verification
Verification of ticket design elements
Detection of missing logos or graphic components

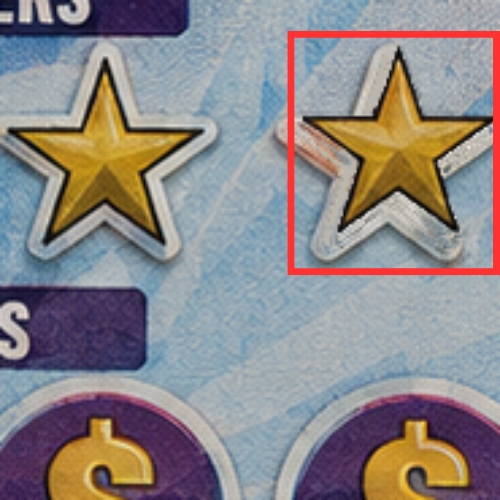

Alignment verification of printed artwork
Monitoring of design consistency across tickets
Variable Data Inspection
Verification of printed ticket numbers
Validation of unique codes

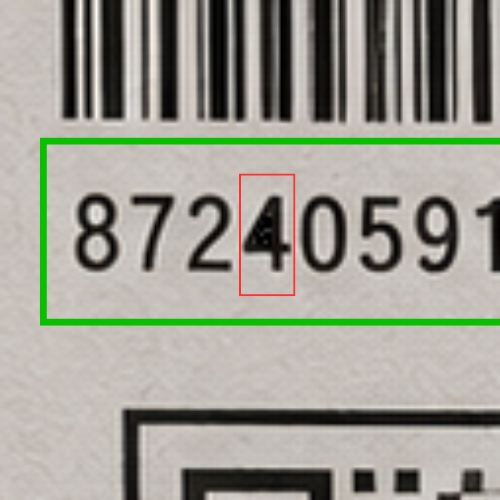

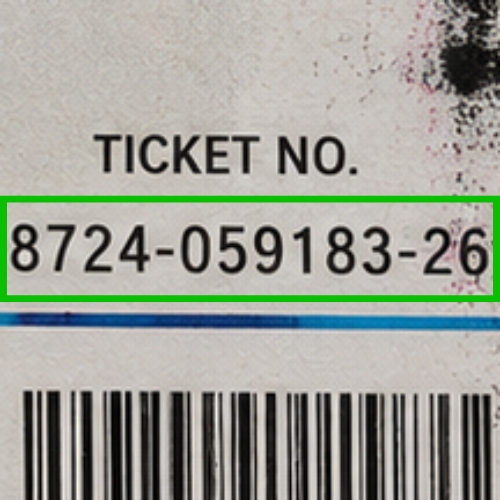

OCR / OCV inspection of printed text and numbers

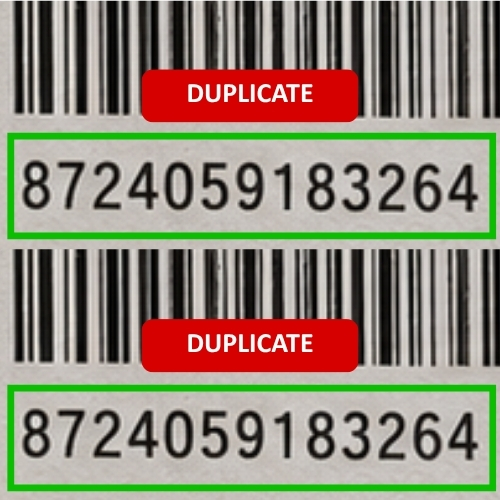

Detection of duplicate or missing codes
Barcode & Code Verification

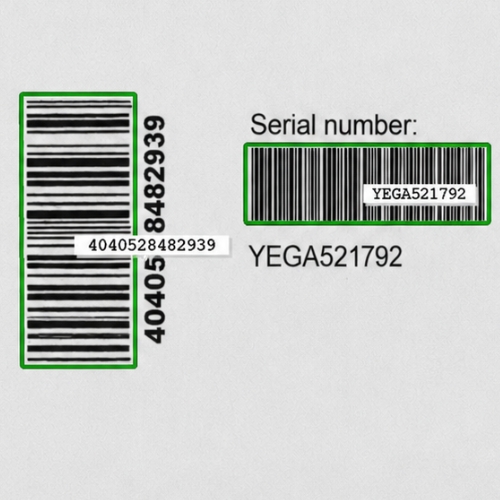

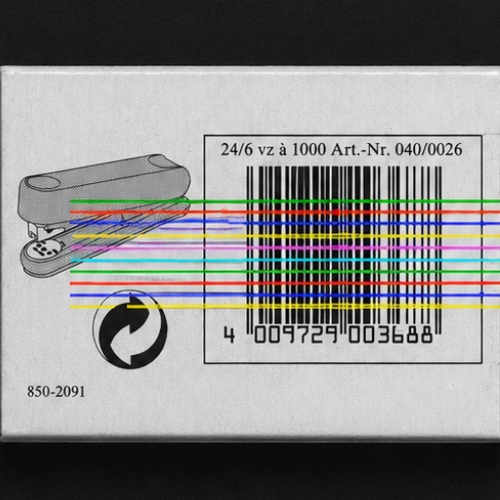

Barcode readability verification

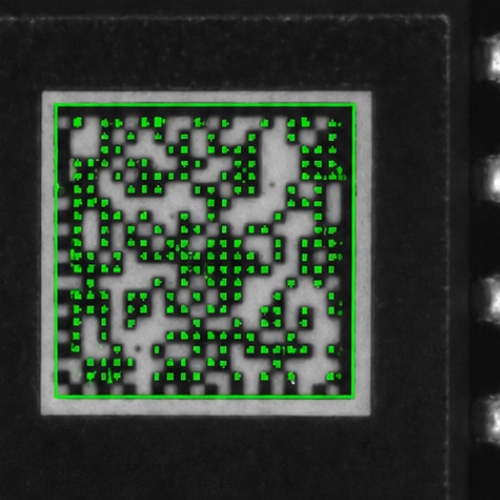

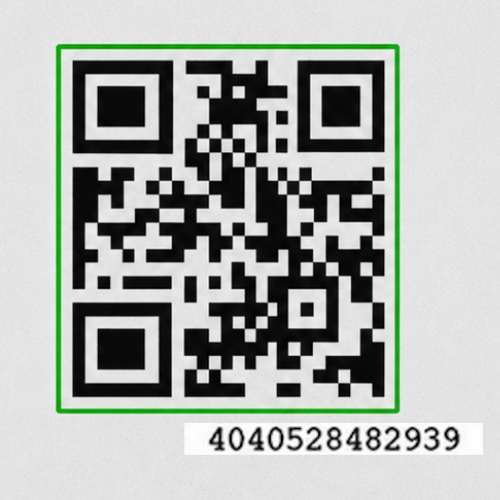

QR code verification where applicable
Validation of encoded ticket identifiers
These inspections ensure that printed lottery tickets meet strict quality, accuracy, and traceability requirements.
System Architecture
High-Speed Inspection System for Lottery Printing
The Lottery Inline Inspection System is designed for high-speed lottery ticket printing environments, where inspection must operate continuously without interrupting production.
High-Resolution Industrial Cameras
Industrial cameras capture images of printed lottery tickets as they pass through the inspection station on the printing press.
Precision Illumination System
Specialized lighting provides uniform illumination of the printed ticket surface, enabling reliable detection of defects and accurate reading of printed data.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and compares them with reference artwork and expected data patterns.
OCR / OCV Data Verification Engine
The system reads printed numbers, codes, and text fields using optical character recognition algorithms to verify data accuracy.
System Processing Unit
A high-performance processing system manages image acquisition, inspection algorithms, and communication with the printing press.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.

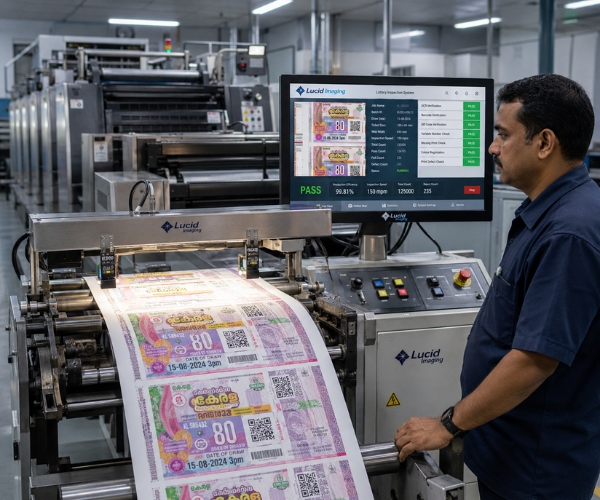

Key System Capabilities
The Lottery Inspection System provides capabilities specifically designed for lottery ticket production:
- Real-time inspection of printed lottery tickets
- Verification of variable numbers and game codes
- Barcode and QR code verification
- Detection of printing defects and artwork deviations
- Automated comparison with reference artwork
- Defect image recording and reporting
- Production statistics and quality monitoring
These capabilities help maintain the integrity and reliability of lottery ticket production.

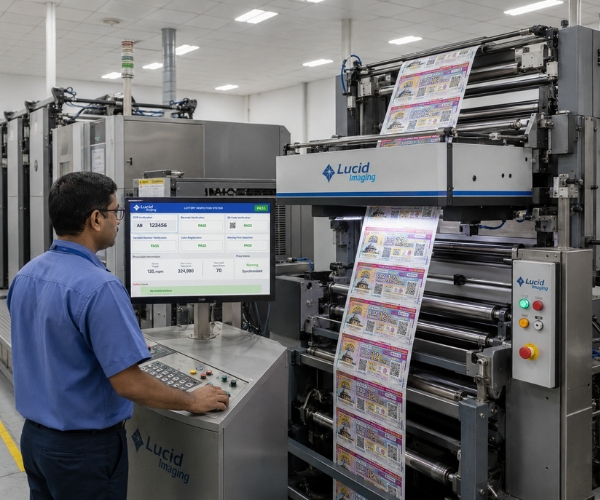

Integration with Lottery Printing Presses
The system integrates with lottery ticket printing presses used in security printing facilities.
Typical integration features include:

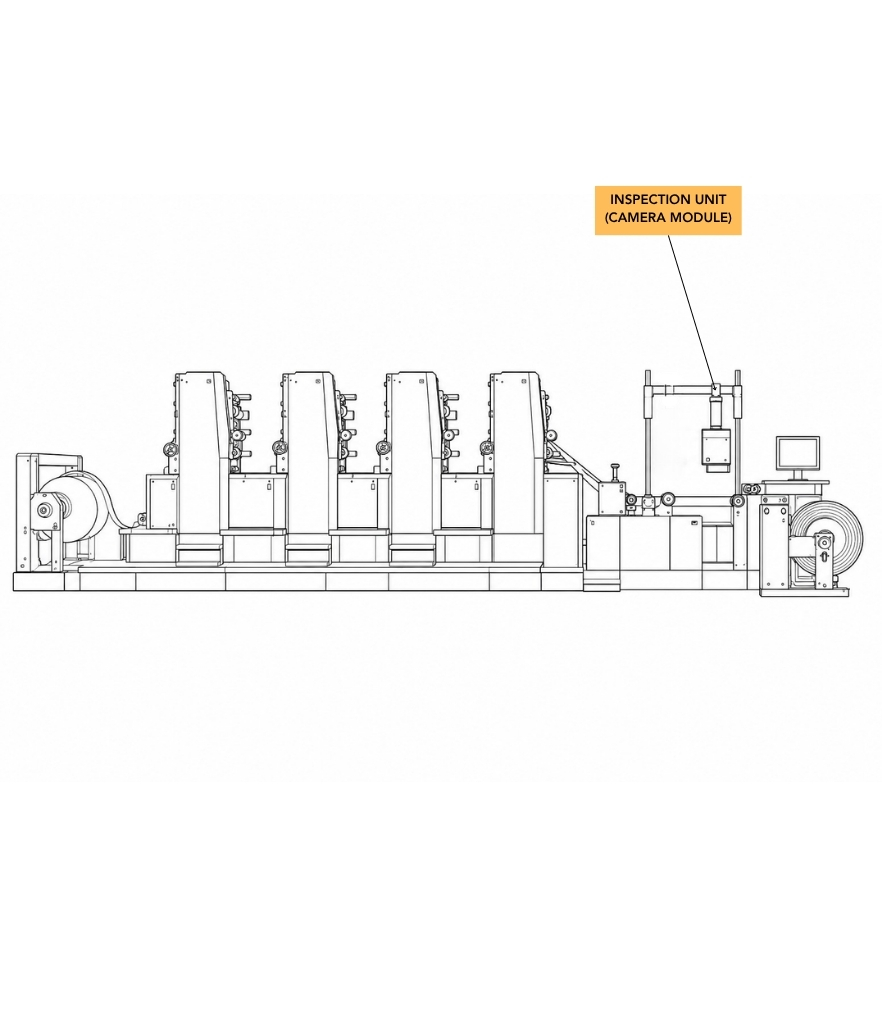

- Installation of camera modules along the print path
- Synchronization with press speed and ticket transport
- Integration with production control systems
- Automated alerts when defects or data errors are detected
This integration allows the inspection system to operate seamlessly within the lottery ticket production workflow.

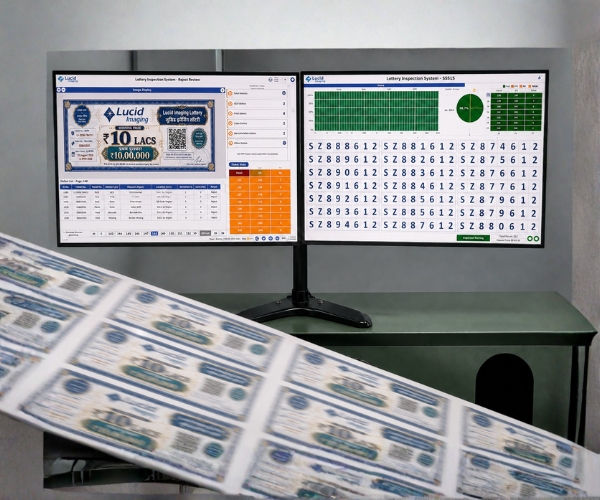

Operator Interface & Workflow
The operator interface provides a clear and efficient environment for monitoring inspection results during production.
Key features include:
- Real-time visualization of inspected tickets
- Display of detected defects and data errors
- Configurable inspection parameters
- Barcode and OCR verification results
- Production statistics and inspection reports
Operators can quickly identify production issues and take corrective action to maintain consistent ticket quality.
Benefits
Improved Accuracy, Traceability, and Print Quality Assurance
Implementing an Inline Lottery Inspection System provides several advantages for lottery ticket manufacturers:
01
Automated verification of ticket numbers and codes
02
Improved accuracy of variable data printing
03
Early detection of printing defects
04
Prevention of defective tickets entering distribution
05
Enhanced traceability and production reporting
By inspecting lottery tickets during the printing process, manufacturers can ensure that every ticket produced meets strict quality and data accuracy standards.
