Flexible Packaging Inspection System
Flexible packaging printing is widely used for products such as food packaging, pharmaceutical packaging, personal care products, and consumer goods. These packaging materials are typically printed on wide web presses operating at high speeds, where even small defects can lead to product rejection, regulatory issues, or brand damage.
Lucid Imaging’s Flexible Packaging Inspection System enables continuous inspection of printed flexible packaging materials during the printing process. By combining high-resolution industrial cameras with advanced image processing software, the system monitors the printed web in real time and detects defects such as missing print, colour variations, registration errors, and artwork inconsistencies. This ensures that packaging materials meet strict quality standards before moving downstream converting and packaging operations.
Printing Stage
Real-Time Inspection for Wide Web Printing
Inspection is performed inline on wide web printing presses used for flexible packaging production. The inspection system captures images of the printed web immediately after the printing units, allowing real-time verification of print quality across the entire web width.
Flexible packaging inspection helps manufacturers:
01
Real-Time Detection
Detect printing defects as soon as they occur
02
Printing Issue Analysis
Identify issues related to printing plates, ink distribution, or press alignment
03
Quality Consistency
Maintain consistent packaging quality across long production runs
This is particularly important for packaging used in food, pharmaceutical, and consumer product industries, where packaging quality and accuracy directly impact product safety and brand integrity
Inspection Scope
Comprehensive Inspection for Flexible Packaging
The Flexible Packaging Inspection System performs detailed inspection of print quality, artwork consistency, and machine-readable information on flexible packaging materials.
Typical inspection scope includes:
Print Quality Inspection
Missing Print Detection
Ink Smearing or Ink Spread
Colour Deviation Detection
Print Registration Errors
Print Streaks or Banding Defects
Artwork & Graphic Inspection
Logo Verification

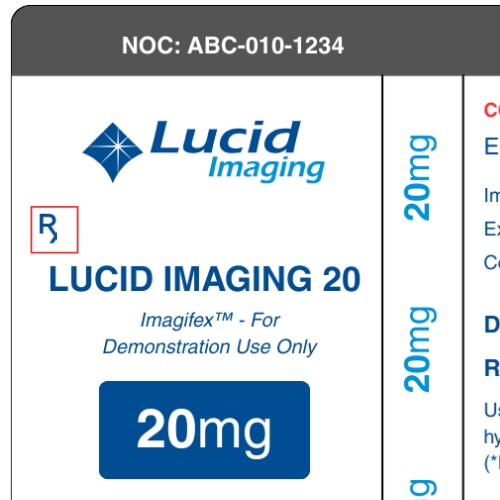

Detection of missing design elements
Graphic alignment verification

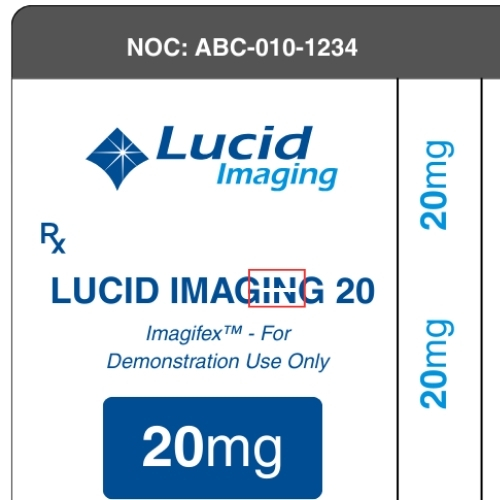

Detection of printing distortions
Code & Data Inspection
Barcode verification

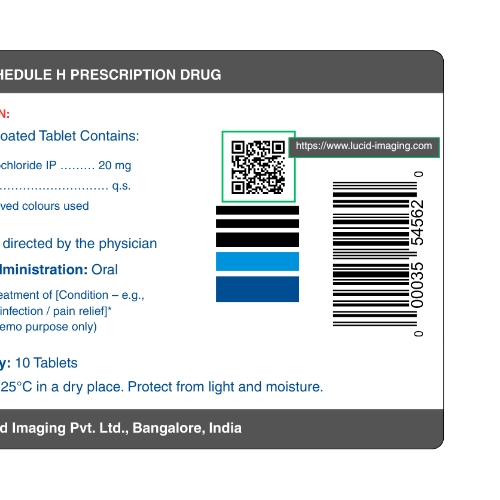

QR code inspection

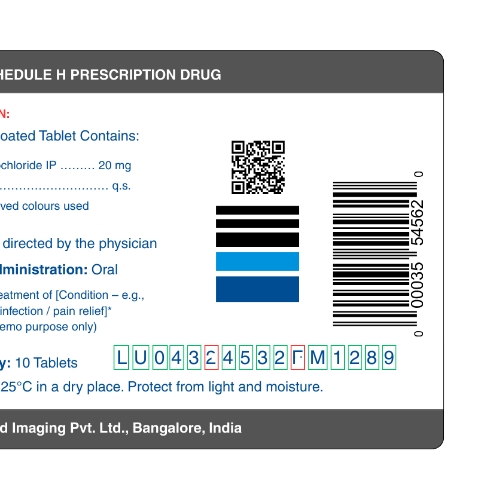

Text and character inspection
Variable data verification where applicable
This inspection ensures that both visual packaging quality and machine-readable information meet production standards.
System Architecture
Comprehensive Inspection for Flexible Packaging
The Flexible Packaging Inspection System is designed for wide web printing environments, where large web widths and high production speeds require robust inspection technology.

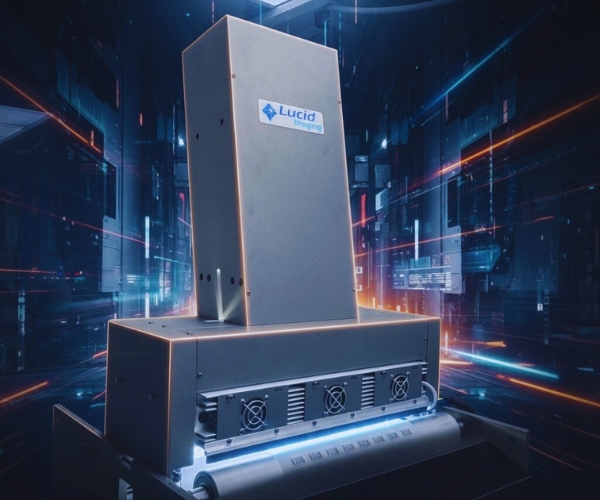

Wide Web Camera System
High-resolution line scan cameras are installed across the web width to capture detailed images of the printed material. These cameras ensure that every section of the web is inspected continuously during production.
High-Intensity Illumination
Uniform lighting systems provide consistent illumination across the entire web width. Proper lighting is essential for detecting subtle print defects and maintaining accurate colour inspection.
Real-Time Image Processing
Advanced image processing software analyzes captured images in real time. The software compares each printed section with a reference image and detects deviations based on predefined inspection criteria.
System Processing Unit
A dedicated processing unit manages image acquisition, defect detection, and system communication. It processes inspection data continuously and triggers alerts when defects are detected.
Operator Monitoring Station
The operator workstation provides real-time visualization of the inspection process. Operators can review detected defects, adjust inspection parameters, and monitor production quality.
Key System Capabilities
The Flexible Packaging Inspection System provides advanced capabilities designed for high-speed packaging production:
- Continuous inspection across wide web widths
- Real-time defect detection and alert generation
- Automated comparison with approved artwork
- Detection of printing defects and inconsistencies
- Barcode and code verification
- Defect image recording and reporting
- Production quality monitoring and statistics
These capabilities allow packaging manufacturers to maintain consistent print quality across long production runs.

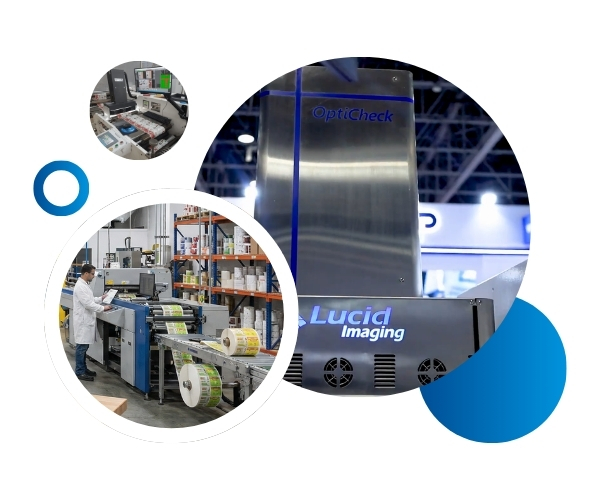

Integration with Production Lines
The inspection system integrates directly with wide web printing presses used for flexible packaging production.
Typical integration features include:

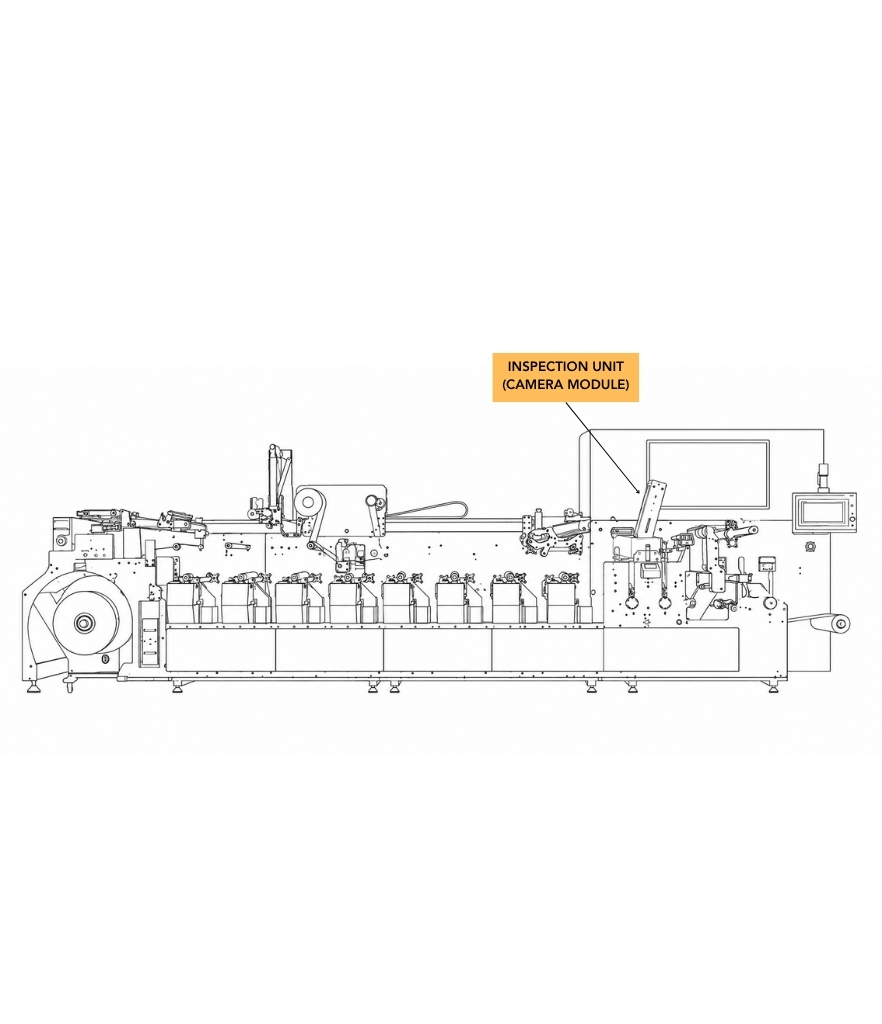

- installation of camera modules across the web width
- synchronization with web speed and encoder signals
- communication with printing press control systems
- optional defect marking or alert systems
The system operates continuously during production and helps maintain stable printing conditions and consistent packaging quality.
Operator Interface & Workflow

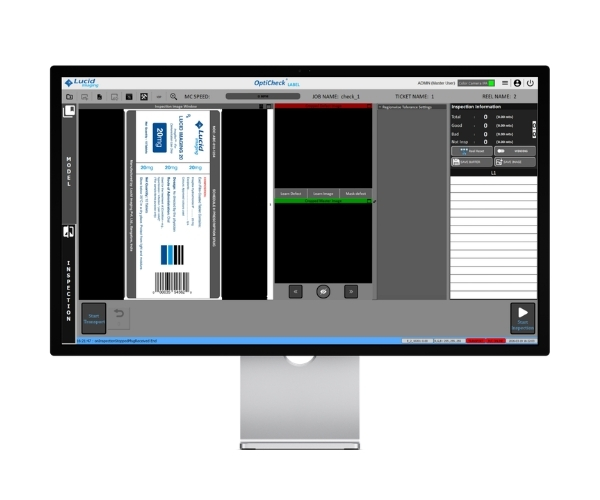

The operator interface provides a comprehensive view of the inspection process and enables efficient monitoring of production quality.
Key features include:
- real-time web inspection visualization
- defect image review and classification
- configurable inspection parameters
- defect mapping across the web width
- production reports and inspection statistics
Operators can quickly identify defect locations and make adjustments to the printing process to maintain optimal quality.
Benefits
Enhancing Efficiency in Packaging Operations
Implementing a Flexible Packaging Inspection System provides several advantages for packaging manufacturers:
01
Early detection of printing defects
02
Reduced material waste and rework
03
Improved packaging quality and consistency
04
Enhanced compliance with packaging standards
05
Better control over high-speed printing operations
By inspecting packaging materials during the printing process, manufacturers can ensure that only high-quality packaging materials proceed to downstream converting and packaging stages.
