Aluminum Foil Inspection

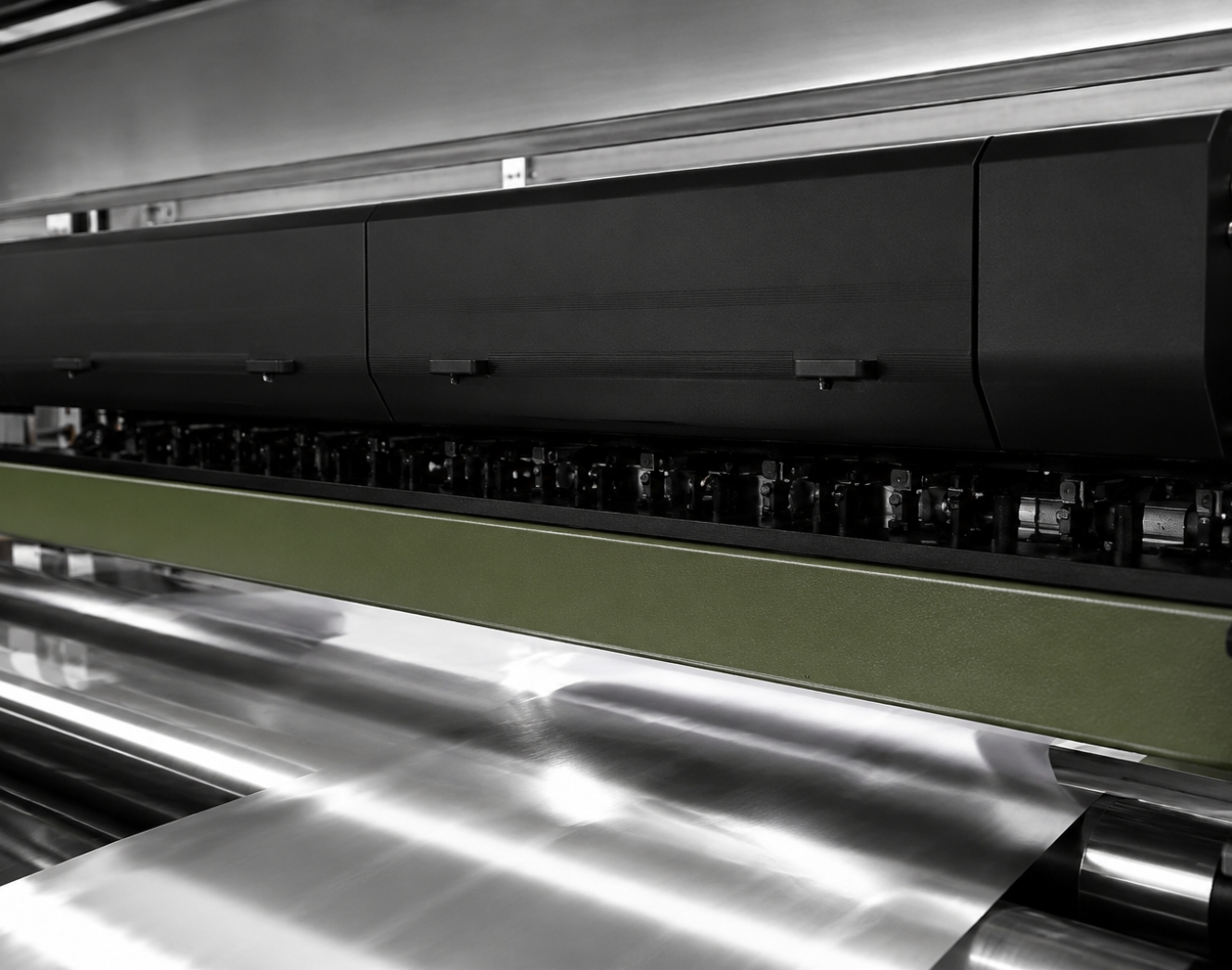

Aluminum Foil Surface Inspection
Aluminum foil is widely used in industries such as flexible packaging, pharmaceutical packaging, battery manufacturing, and industrial materials. In many of these applications, foil thickness and surface quality must be tightly controlled to ensure product performance and reliability.
Aluminum foil is typically produced through rolling processes followed by surface treatment, coating, or laminating operations. During these processes, surface defects can occur due to rolling imperfections, material contamination, or mechanical stress.
Lucid Imaging provides machine vision solutions designed for surface inspection of aluminum foil during manufacturing and processing operations. The system continuously monitors the moving foil web and detects defects in real time, enabling manufacturers to identify production issues early and maintain consistent material quality.
Automated inspection helps foil manufacturers improve process stability, reduce waste, and ensure that only high-quality material proceeds to downstream applications.
inspection systems
Where This Inspection Is Used
Aluminum foil surface inspection systems are used in foil rolling mills and foil processing facilities where thin aluminum sheets are produced and converted into finished materials.
Typical inspection applications include:
Inspection Applications
- Inspection of aluminum foil during rolling processes
- Detection of surface defects introduced during foil production
- Inspection of foil during coating or laminating operations
- Monitoring of foil quality during converting processes
Deployment Areas
- Flexible packaging foil
- Pharmaceutical blister foil
- Battery current collector foil
- Industrial aluminum foil materials
Automated inspection helps manufacturers maintain consistent foil quality across high-speed production lines.
Inspection Scope
Ensuring Defect-Free Aluminum Foil Surfaces
The Aluminum Foil Surface Inspection System verifies surface integrity and material consistency of the foil web.
Typical inspection scope includes:
Surface Defect Detection
Pinholes or micro-holes in the foil
Scratches or surface marks
Rolling marks or streaks
Wrinkles or folds in the foil web
Contamination Detection
Dirt or foreign particles on the foil surface
Oil or residue contamination
Embedded material inclusions
Material Consistency Monitoring
Detection of thickness-related surface variations
Monitoring of foil uniformity across the web width
Identification of process-related surface irregularities
These inspections ensure that aluminum foil meets the required quality standards for packaging, industrial, or energy storage applications.
System Architecture
Advanced Architecture for High-Speed Foil Inspection
The Aluminum Foil Surface Inspection System is designed for continuous inspection in high-speed foil production environments.
Line-Scan Camera Modules
High-resolution line-scan cameras capture detailed images of the moving foil web across its full width.
Precision Illumination System
Specialized lighting systems highlight small surface variations and reflective foil defects, enabling reliable detection of micro-defects.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and identifies surface defects based on predefined detection parameters.
System Processing Unit
A high-performance processing system manages image acquisition, defect detection algorithms, and communication with the production line.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.
Key System Capabilities
The Aluminum Foil Inspection System provides capabilities designed for high-speed foil production:
- Continuous inspection of aluminum foil during production
- Detection of pinholes, scratches, and rolling defects
- Monitoring of foil surface consistency
- Automated defect classification and reporting
- Real-time alerts for production issues
- Statistical monitoring of foil production quality
These capabilities allow manufacturers to maintain consistent material quality and stable foil production processes.
Integration with Foil Production Lines
The inspection system integrates with foil rolling mills and foil processing equipment.
Typical integration features include:
- Installation of camera modules across the foil web
- Synchronization with web speed and line encoders
- Communication with rolling mill control systems
- Automatic marking or tracking of detected defects
This integration allows inspection to operate seamlessly within the foil production workflow.

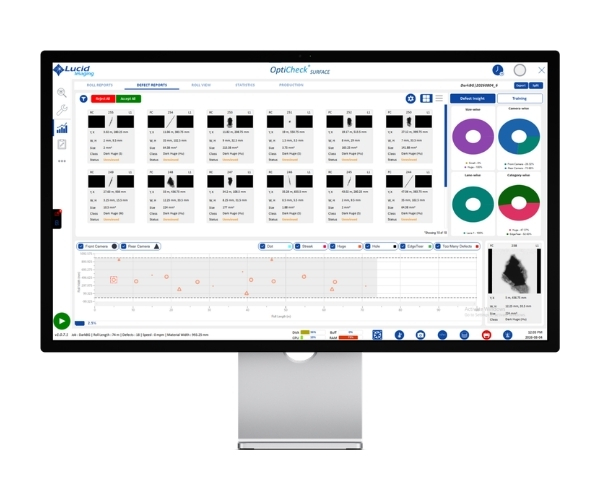

Operator Interface & Workflow
The operator interface provides tools for monitoring foil inspection results and maintaining production quality.
Key features include:
- Real-time visualization of inspected foil areas
- Defect image display and classification
- Configurable inspection parameters and thresholds
- Defect mapping across the foil width
- Production statistics and inspection reports
Operators can quickly identify defect patterns and adjust production parameters to maintain stable foil quality.
Benefits
Ensuring Reliable and High-Quality Foil Output
Implementing an Aluminum Foil Surface Inspection System provides several advantages for foil manufacturers:
01
Early detection of defects during foil production
02
Improved monitoring of rolling and processing operations
03
Reduced waste and defective material
04
Improved consistency of foil products
05
Enhanced quality assurance for downstream applications
By inspecting the foil surface continuously during production, manufacturers can ensure that only high-quality aluminum foil proceeds to packaging, battery, or industrial applications.
