Offset OEM Overview
Banknote Offset Inspection System - OEM Integration
Offset printing is one of the most critical stages in banknote production, where the base artwork, fine line structures, guilloche patterns, and multi-color backgrounds are printed onto security paper sheets. These elements form the visual foundation of the banknote and must be reproduced with extremely high precision.
Lucid Imaging’s Banknote Offset Inspection System (OEM Integration) is designed to operate directly within banknote offset printing presses as part of the machine architecture. The system performs real-time inspection of printed banknote sheets during production, detecting deviations in print quality, registration, and artwork consistency. By integrating the inspection system directly into the printing press, manufacturers can ensure that defects are detected immediately, and corrective action can be taken without interrupting production.
Printing Stage
Monitoring Print Accuracy and Consistency

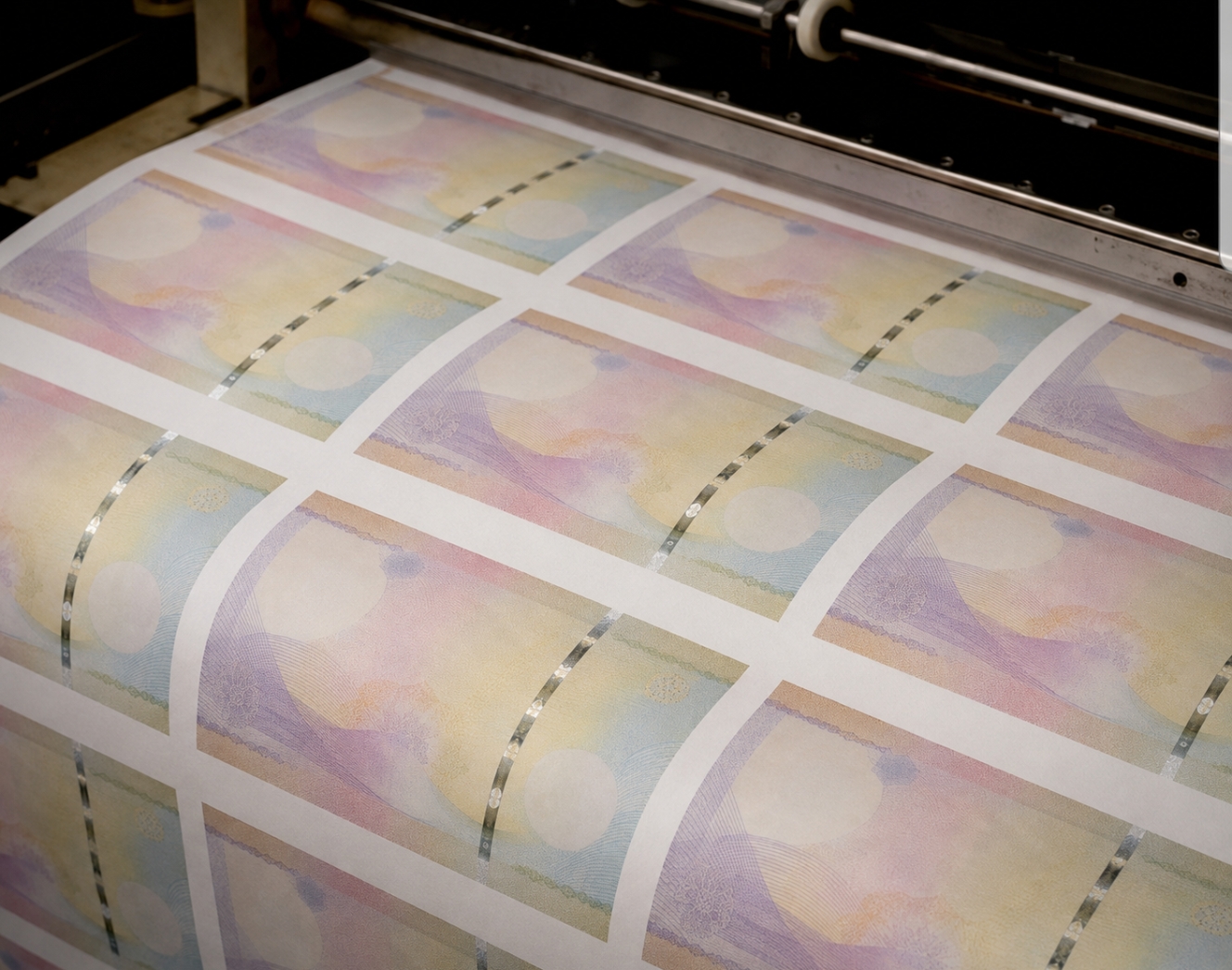

Inspection is performed during the offset printing process, where banknote sheets pass through multiple printing units to produce the base artwork of the currency.
At this stage, the inspection system monitors each printed sheet and verifies that the printed design matches the approved artwork and printing parameters.
Inline inspection during offset printing helps production teams to:
01
Real-Time Detection
Detect printing defects as soon as they occur
02
Registration Monitoring
Monitor print registration across multiple colour units
03
Design Consistency
Ensure consistent reproduction of fine design elements
04
Defect Prevention
Prevent defective sheets from proceeding to subsequent printing stages such as intaglio or numbering
This stage is essential in banknote printing workflows, where maintaining precise print quality is critical for both visual consistency and security integrity.
Inspection Scope
Inline Inspection for Print Consistency
The Banknote Offset Inspection System verifies print quality, artwork consistency, and printed information on banknote sheets during production.
Typical inspection scope includes:
Print Quality Inspection

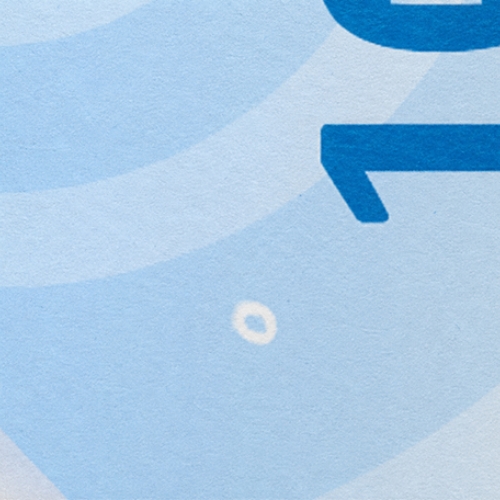

Missing print detection

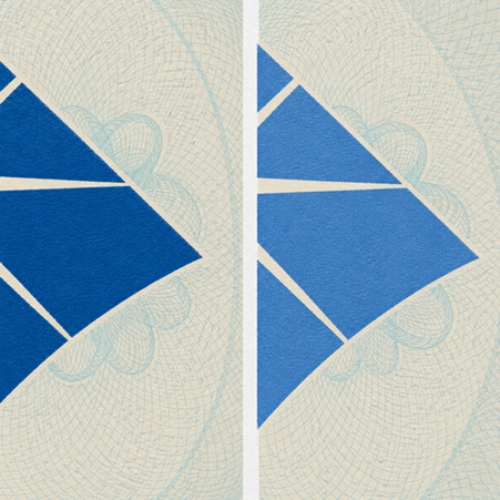

Colour variation detection
Ink density variations

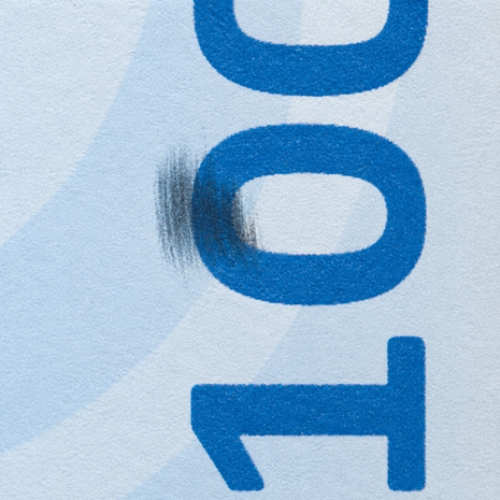

Print smearing or spreading
Print streaks or banding defects
Registration & Alignment Verification
Multi-colour print registration inspection
Alignment of design elements across printing units
Verification of sheet positioning during printing
Artwork & Design Verification
Verification of fine line structures and guilloche patterns
Detection of missing or distorted artwork elements
Monitoring of background patterns and design consistency
These inspections ensure that the printed banknote sheets meet the strict quality standards required in currency production.
System Architecture
High-Precision Banknote Inspection Setup
The Banknote Offset Inspection System is designed to operate in high-security printing environments and high-precision sheet-fed printing presses.
High-Resolution Camera Modules
Industrial cameras capture detailed images of printed banknote sheets as they pass through the inspection station. These cameras are capable of detecting very fine defects and deviations in printed artwork.
Precision Illumination System
Specialized lighting systems provide uniform illumination of the printed sheet surface, enabling accurate detection of subtle printing defects and variations.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and compares them with approved reference artwork. Any deviations from the reference design are automatically detected.
Press Synchronization Interface
The system synchronizes with the printing press transport mechanism and sheet movement to ensure precise timing of image acquisition and inspection.
System Processing Unit
A high-performance processing system manages image acquisition, defect detection algorithms, and communication with the printing press control system.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and manage inspection parameters during printing operations.

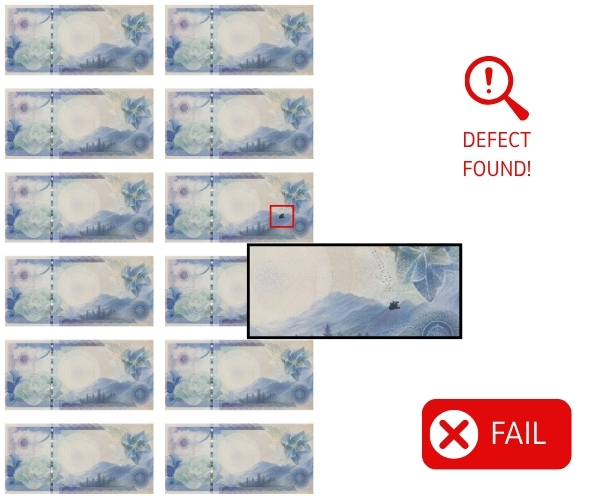

Key System Capabilities
The Banknote Offset Inspection System provides advanced capabilities designed for high-security printing environments:
- Inspection of every printed banknote sheet in real time
- Detection of print defects and artwork inconsistencies
- Monitoring of multi-colour print registration
- Automated comparison with reference artwork
- Defect image recording and classification
- Production quality monitoring and reporting
These capabilities allow banknote printing facilities to maintain extremely high-quality standards during currency production.

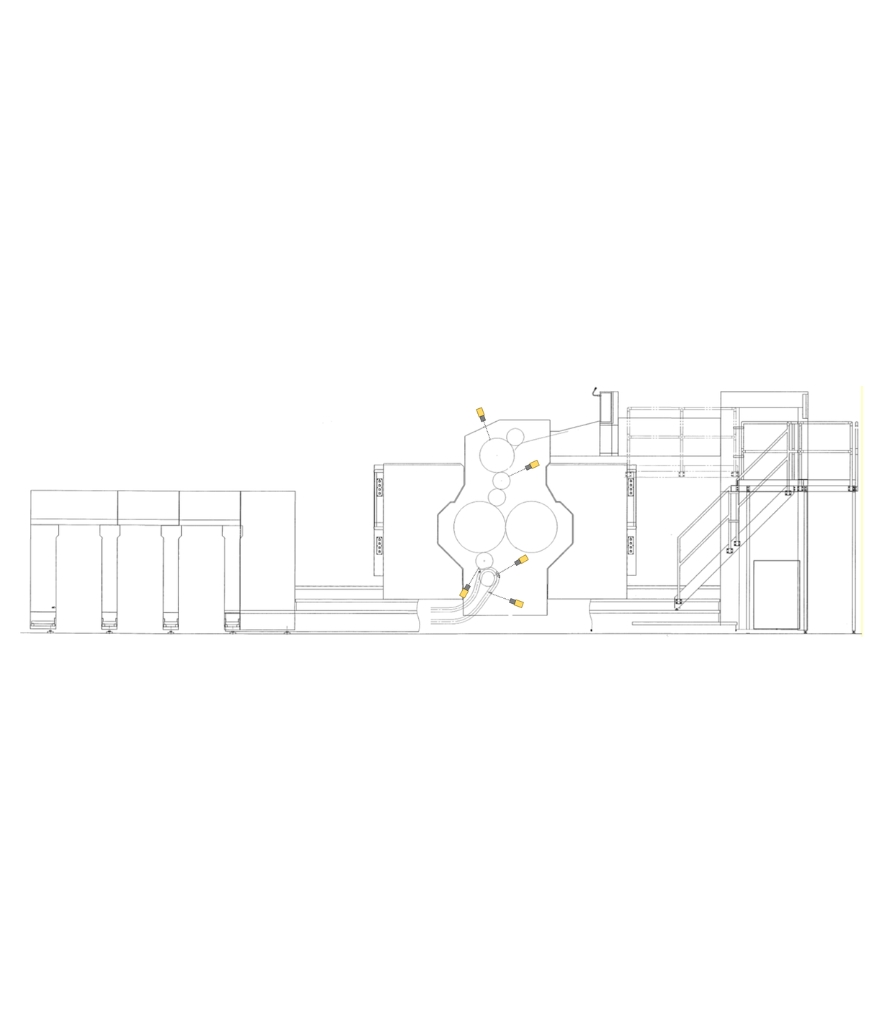

Integration with Banknote Printing Presses

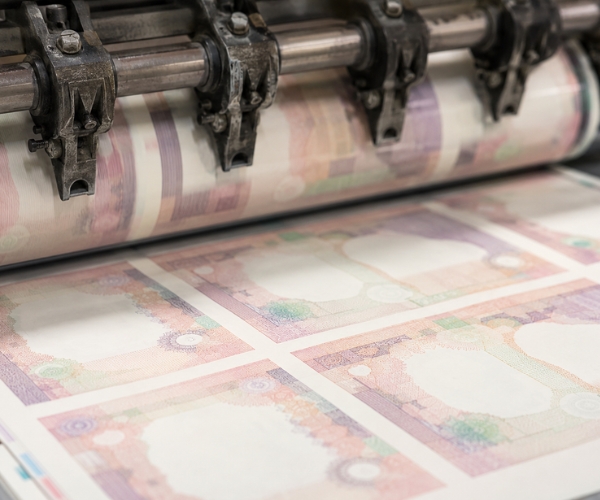

The OEM integration solution is designed to work as part of new banknote offset printing press installations.
Typical integration features include:
- Installation of inspection modules within the press architecture
- Synchronization with sheet transport systems
- Communication with press control systems
- Automated alerts when defects are detected
This integration enables the inspection system to operate seamlessly alongside the printing press without affecting production performance.

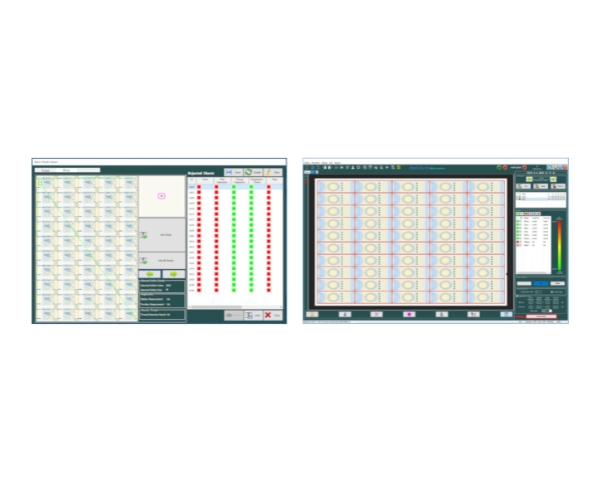

Operator Interface & Workflow
The operator interface provides a comprehensive view of the inspection process and supports efficient monitoring of production quality.
Key features include:
- Real-time visualization of inspected banknote sheets
- Defect image review and classification
- Configurable inspection parameters
- Inspection statistics and production reports
- Alerts for detected defects or deviations
Operators can quickly identify printing issues and take corrective action to maintain stable production quality.
Benefits
Advantages of Banknote Print Monitoring
Implementing an OEM-integrated Banknote Offset Inspection System provides several advantages for currency printing facilities:
01
Immediate detection of printing defects during production
02
Improved monitoring of print registration and artwork consistency
03
Reduced waste and production losses
04
Improved quality control in banknote printing
05
Enhanced reliability of currency production processes
By integrating inspection directly into the printing press, manufacturers can ensure that only high-quality banknote sheets proceed to the next stages of production.
