Paper Line Inspection
Paper Surface Inspection System - Paper Line
Paper manufacturing is a continuous high-speed process where large paper webs are produced on paper machines and processed into rolls or sheets for downstream applications. During production, variations in raw materials, machine conditions, or coating processes can introduce surface defects that affect product quality.
Defects such as holes, dirt, fiber clumps, streaks, wrinkles, coating irregularities, or inclusions can occur at different stages of paper production. If these defects are not detected early, they can lead to quality issues in printing, packaging, or other industrial applications.
Lucid Imaging’s Paper Surface Inspection System – Paper Line enables continuous monitoring of the paper web during the manufacturing process. Using high-resolution machine vision technology, the system detects surface defects in real time and provides immediate feedback to production teams. This allows manufacturers to identify process issues early, reduce waste, and maintain consistent paper quality.
Production Stage
Where This Inspection Is Used
Inspection is performed directly on the paper production line, where the paper web moves through various stages such as forming, pressing, drying, coating, and finishing.
At this stage, the inspection system continuously scans the moving paper web and identifies surface defects as they occur.
This inspection enables manufacturers to:
Inspection Stage
- Detect defects during paper formation or coating processes
- Monitor paper surface quality across the full web width
- Identify machine or process conditions causing defects
- Prevent defective material from continuing through production
Inline inspection at the paper line stage helps maintain stable production conditions and improves overall product quality.
Inspection Scope
Surface Quality and Web Integrity Verification for Paper
The Paper Surface Inspection System verifies surface quality and structural consistency of the paper web.
Typical inspection scope includes:
Surface Defect Detection
Holes or tears in the paper web

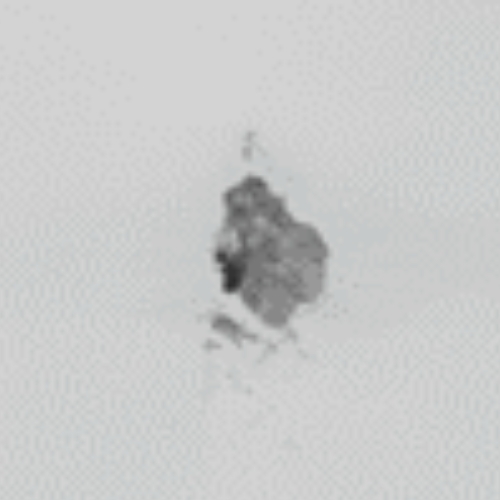

Dirt, dust, or foreign particles
Fiber clumps or inclusions

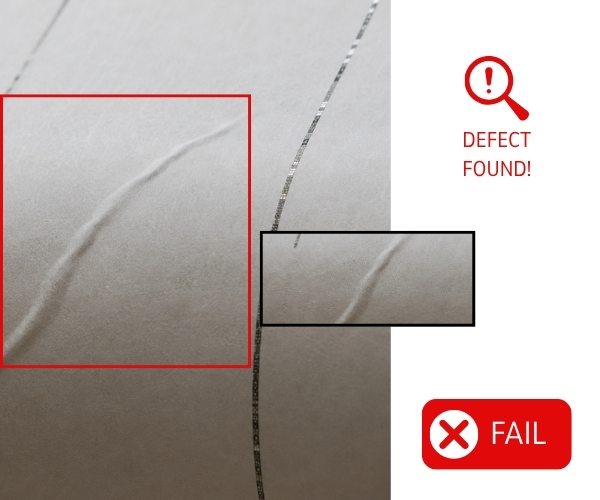

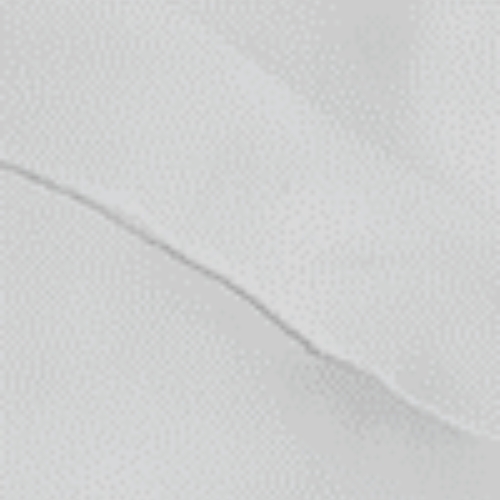

Wrinkles or folds in the web
Coating & Surface Quality Inspection
Coating streaks or irregularities
Surface texture variations
Uneven coating distribution
Coating defects caused by process instability
Web Integrity Monitoring
Detection of web breaks or damage
Monitoring of paper uniformity across the web width
Identification of process-related surface defects
These inspections ensure that the produced paper meets the required quality standards for downstream processing and applications.
System Architecture
Continuous High-Speed Imaging and Defect Detection for Paper Production
The Paper Surface Inspection System is designed for continuous inspection in high-speed paper manufacturing environments.
Line-Scan Camera Modules
High-resolution line-scan cameras capture detailed images of the moving paper web across its full width. Multiple cameras may be installed to ensure complete coverage.
Precision Illumination System
Specialized lighting systems provide uniform illumination of the paper surface, enabling reliable detection of subtle defects.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and identifies surface defects based on predefined detection parameters.
System Processing Unit
A high-performance processing unit manages image acquisition, defect detection algorithms, and communication with the paper production line.
Operator Monitoring Interface
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.
Key System Capabilities
The Paper Surface Inspection System provides several capabilities designed for high-speed paper manufacturing environments:
- Continuous inspection of the paper web during production
- Detection of surface defects and contamination
- Monitoring of coating quality and surface consistency
- Automated defect classification and reporting
- Real-time alerts for production issues
- Statistical monitoring of production quality
These capabilities allow manufacturers to maintain consistent product quality and efficient paper production processes.
Integration with Paper Production Lines
The inspection system integrates with paper manufacturing machines and coating lines used in paper mills.
Typical integration features include:
- Installation of camera modules across the paper web
- Synchronization with web speed and encoder signals
- Communication with paper machine control systems
- Automated alerts or markers for detected defects
This integration allows the inspection system to operate seamlessly with the paper production process without affecting production speed.
Operator Interface & Workflow
The operator interface provides tools for monitoring inspection results and managing production quality.
Key features include:

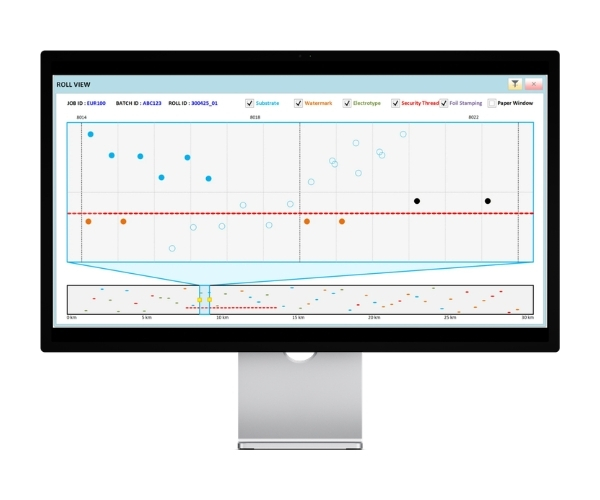

- Real-time visualization of inspected paper web sections
- Defect image display and classification
- Configurable inspection parameters and thresholds
- Defect mapping across the web width
- Production statistics and inspection reports
Operators can quickly identify defect patterns and adjust machine parameters to maintain stable production conditions.
Benefits
Improved Quality, Efficiency, and Waste Reduction in Paper Production
Implementing a Paper Surface Inspection System on the paper line provides several advantages for paper manufacturers:
01
Early detection of defects during production
02
Improved control of paper manufacturing processes
03
Reduced production waste and material losses
04
Improved product quality and consistency
05
Enhanced monitoring of production performance
By inspecting the paper web continuously during manufacturing, producers can ensure that only high-quality paper proceeds to downstream converting and processing operations.
Get the Full Guide
Paper Quality Control Solutions
Download the PDF to explore how our system detects surface defects like spots, scratches, and irregularities throughout the paper line.
