Numbering Retrofit Overview
Banknote Numbering Inspection System - Retrofit
Serial numbering is a critical stage in banknote production, where unique identification numbers are printed on each banknote sheet. These numbers enable traceability of every banknote produced and ensure strict control over currency production. Any errors in numbering, such as incorrect digits, missing numbers, or sequence deviations, can compromise the integrity of the production process.
Lucid Imaging’s Banknote Numbering Inspection System – Retrofit allows existing letterpress numbering presses to be upgraded with automated inspection capabilities. The retrofit solution integrates with the numbering press and performs real-time verification of serial numbers during production. By detecting numbering errors immediately, printing facilities can maintain strict numbering control and prevent incorrectly numbered sheets from entering subsequent production stages.
Printing Stage
Verifying Number Accuracy and Sequence
The retrofit inspection system operates during the letterpress numbering process, where serial numbers are applied to banknote sheets after the primary printing stages.
During production, the system captures images of the printed numbering fields and verifies that serial numbers are correctly printed and follow the required sequence.
Inspection at this stage allows production teams to:
01
Number Accuracy
Verify the accuracy of printed serial numbers
02
Sequence Control
Confirm correct numbering sequence progression
03
Duplicate Detection
Detect missing or duplicated numbers
04
Digit Clarity
Identify unreadable or distorted digits
This verification stage ensures that banknote sheets maintain the required traceability and production control standards.
Inspection Scope
Verification of Numbering and Print Quality
The Banknote Numbering Retrofit Inspection System verifies serial number accuracy, sequence integrity, and numbering print quality.
Typical inspection scope includes:
Serial Number Verification
OCR / OCV inspection of printed serial numbers
Detection of missing digits

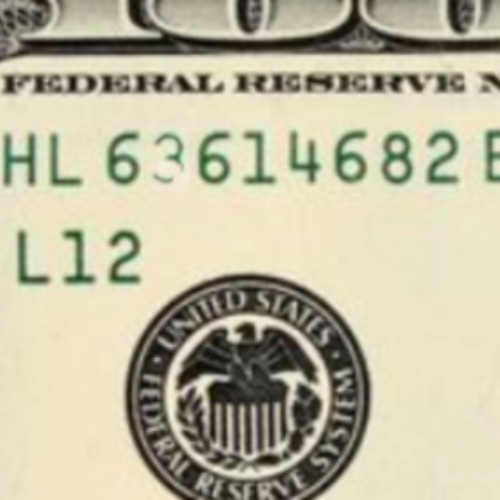

Identification of incorrect or unreadable characters
Verification of numbering format
Numbering Sequence Verification
Validation of serial number progression

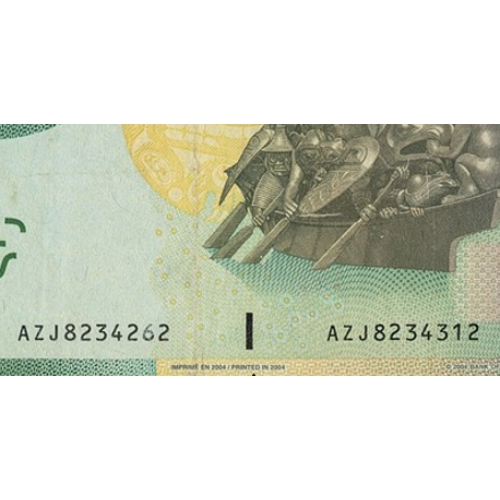

Detection of duplicated numbers

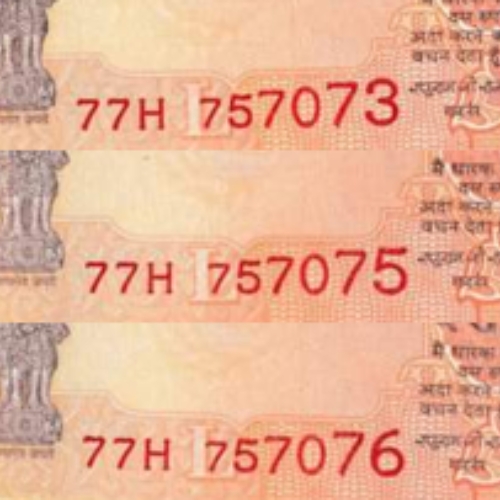

Detection of skipped numbers
Monitoring of numbering consistency across production batches
Print Quality Inspection
Detection of missing numbering print

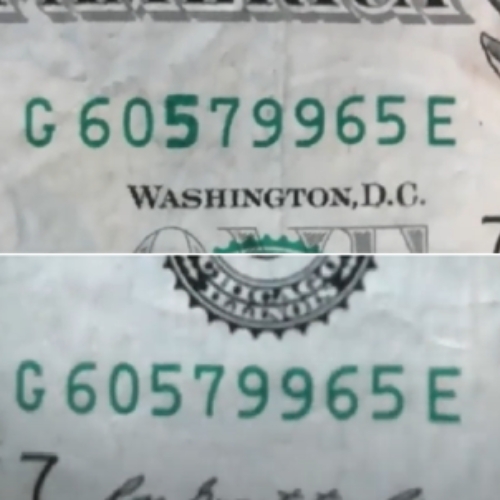

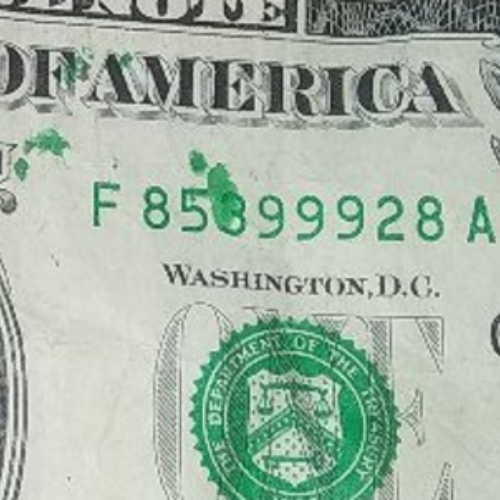

Identification of smudged or distorted digits

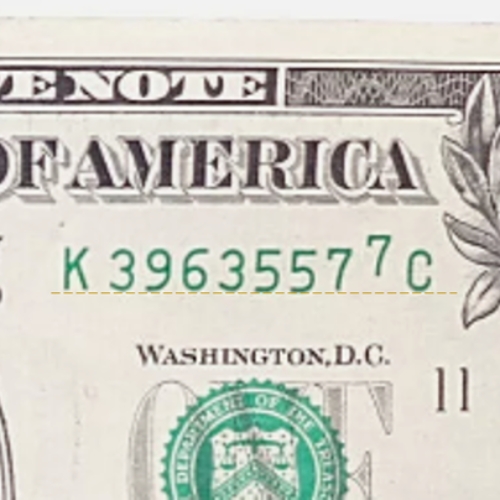

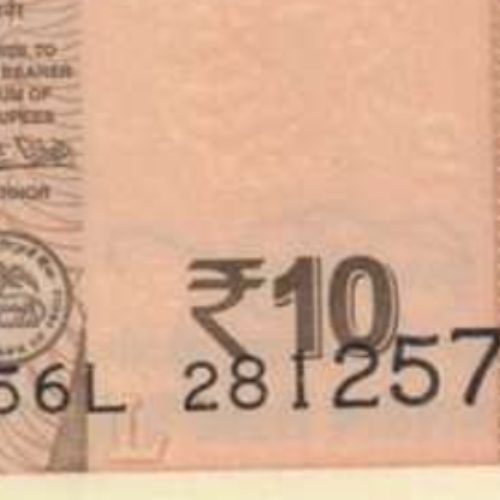

Verification of numbering alignment and positioning

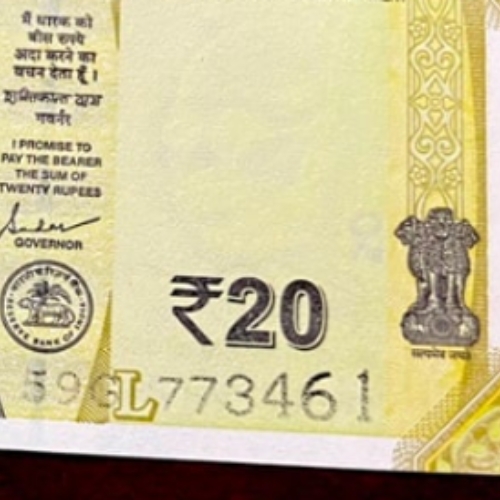

Monitoring of ink density in numbering areas
These inspections ensure that numbering operations meet the strict traceability and security requirements of banknote production.
System Architecture
Components of Retrofit Numbering Inspection

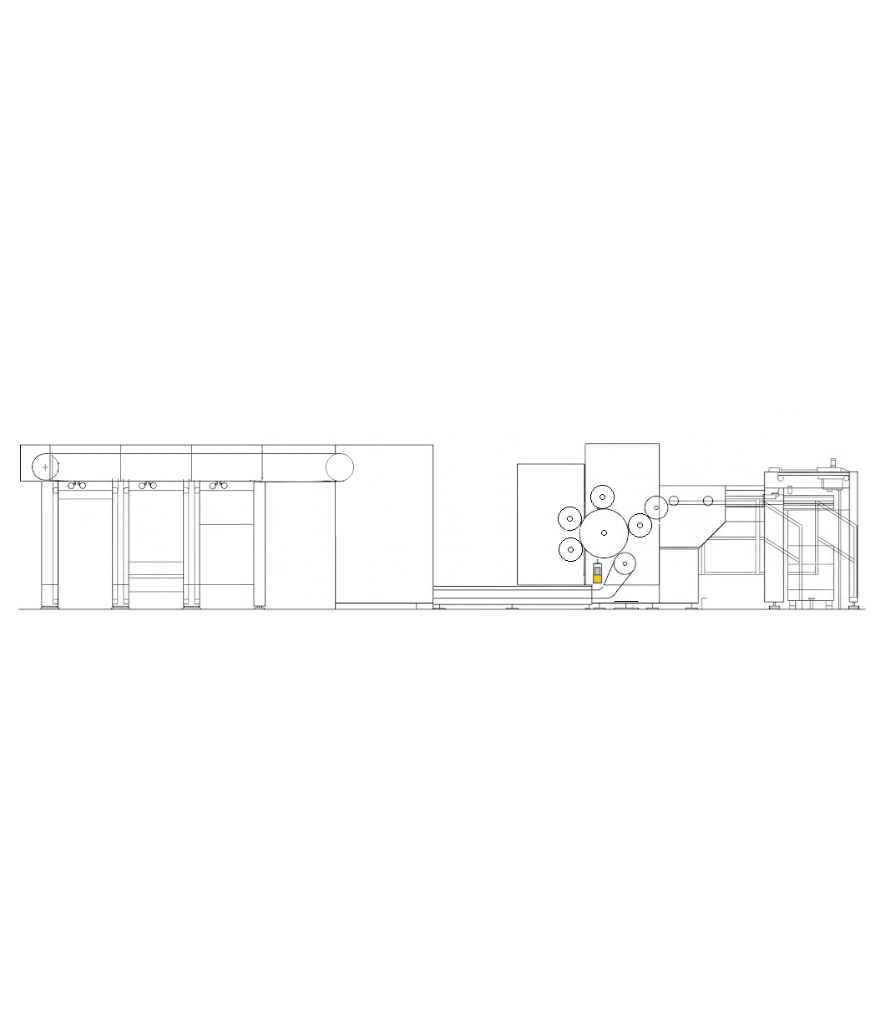

The retrofit inspection system is designed to integrate with existing numbering presses used in banknote production facilities.
Camera Inspection Modules
High-resolution cameras capture images of serial numbers printed on banknote sheets as they pass through the numbering press.
Precision Illumination System
Specialized lighting systems ensure clear illumination of the numbering area to enable accurate reading of printed digits.
OCR / OCV Processing Engine
Advanced optical character recognition algorithms read the printed serial numbers and verify their correctness.
Sequence Verification Module
The system monitors serial number progression and detects any sequence irregularities.
System Processing Unit
A high-performance processing system manages image acquisition, inspection algorithms, and communication with the numbering press.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results and review detected numbering errors.

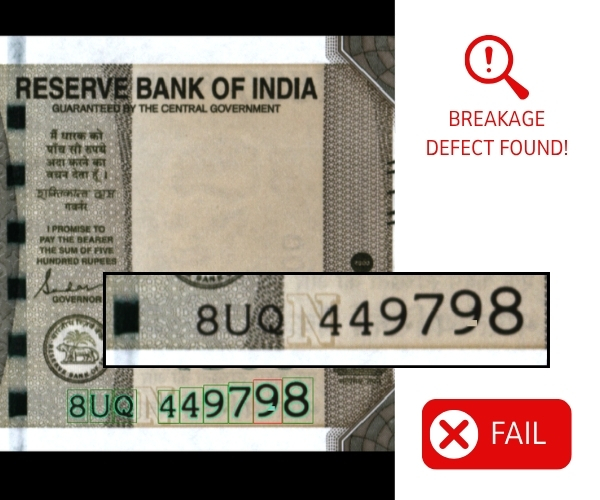

Key System Capabilities
The Banknote Numbering Retrofit Inspection System provides several capabilities designed to upgrade existing numbering presses:
- Automated OCR / OCV inspection of serial numbers
- Real-time verification of numbering sequence
- Detection of missing or duplicated numbers
- Identification of unreadable or distorted digits
- Defect image recording and reporting
- Production traceability and statistical monitoring
These capabilities allow existing numbering presses to achieve modern inspection performance and improved quality control.

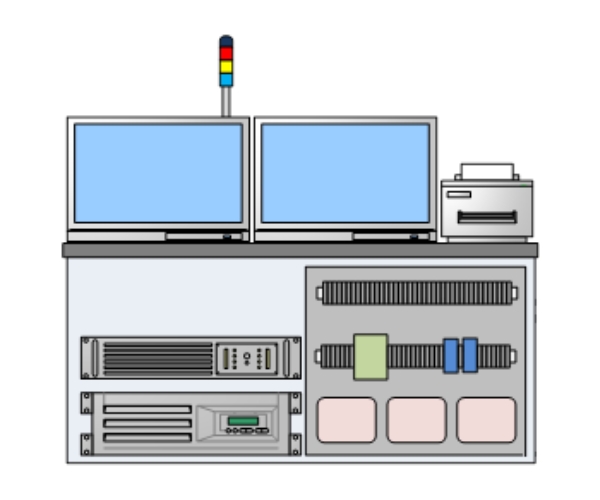

Integration with Existing Numbering Presses
The retrofit inspection system is designed to integrate with numbering presses already operating in banknote production facilities.
Typical integration features include:
- Installation of camera modules along the sheet transport path
- Synchronization with press speed and sheet movement
- Communication with numbering press control systems where required
- Minimal modification of the existing machine structure
This allows printing facilities to upgrade inspection capabilities while continuing to operate their existing equipment.

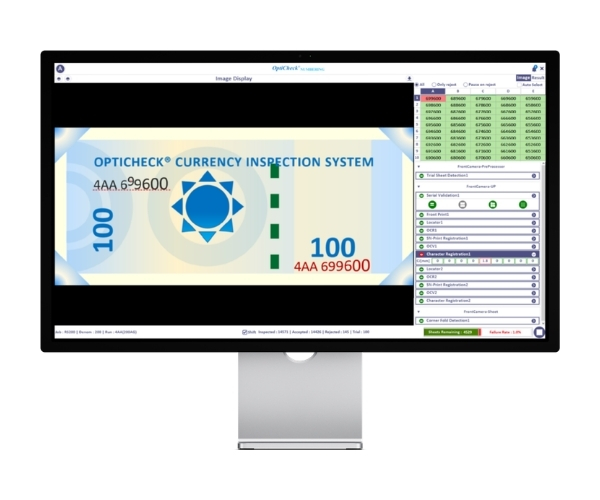

Operator Interface & Workflow
The operator interface provides an efficient environment for monitoring numbering inspection results during production.
Key features include:
- Real-time visualization of inspected serial numbers
- OCR result display and verification
- Defect image display and review
- Configurable inspection parameters
- Numbering sequence monitoring and reporting
Operators can quickly identify numbering issues and take corrective action to maintain accurate production.
Benefits
Improved Accuracy and Sequence Control
Implementing a retrofit numbering inspection system provides several advantages for banknote printing facilities:
01
Modernization of existing numbering presses
02
Improved verification of serial numbers during production
03
Prevention of incorrect numbering sequences
04
Improved traceability of banknote production
05
Extended operational life of existing numbering equipment
By upgrading existing numbering presses with automated inspection technology, manufacturers can ensure that every banknote sheet carries accurate and compliant serial numbers.
Get the Full Guide
Upgrade your Letterpress Numbering Systems
Get the detailed PDF to learn how our retrofit solutions enhance existing letterpress numbering machines with advanced inspection, ensuring accurate serialisation and consistent print quality.
