Cross Cutter Overview
Security Paper Inspection System - Cross Cutter

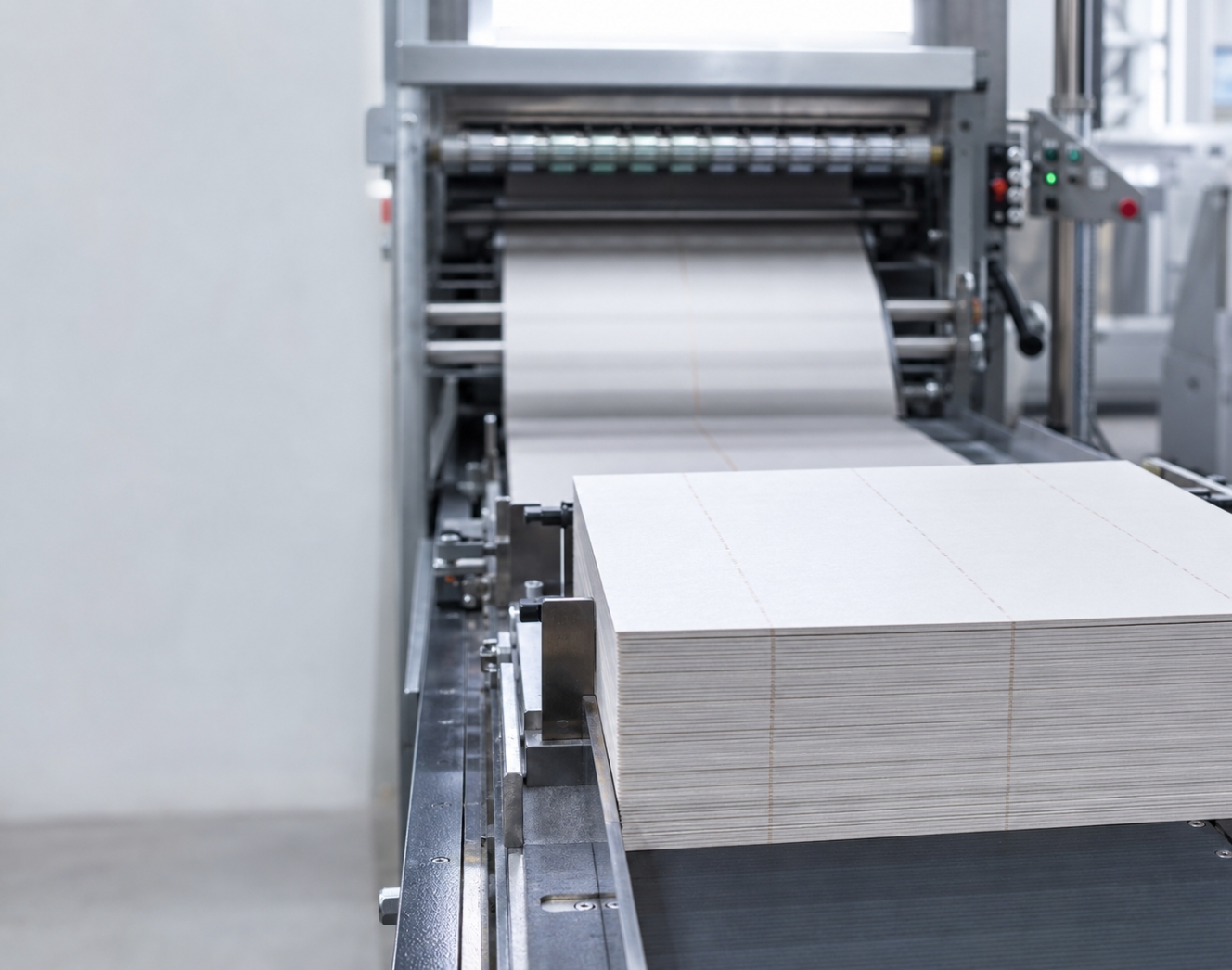

After security paper is manufactured on the paper production line, it is typically processed on cross cutter machines where large paper webs are cut into individual sheets for banknote printing. These sheets must meet extremely strict quality standards because any defects in the paper can directly impact the quality and security of the printed banknotes.
Lucid Imaging’s Security Paper Inspection System for Cross Cutter applications enables automated inspection of security paper sheets during the cutting process. The system monitors the paper as it passes through the cross cutter and detects defects related to paper surface quality, sheet integrity, and embedded security features. By identifying defective sheets at this stage, manufacturers can ensure that only compliant sheets proceed to banknote printing operations.
Processing Stage
Inspection During Cross-Cutting Process
Inspection is performed during the cross-cutting process, where the continuous paper web is cut into individual sheets.
At this stage, the inspection system verifies the quality of the paper immediately before or during sheet cutting. This allows manufacturers to:
01
Pre-Stack Inspection
Detect defects present in the paper web before sheets are stacked
02
Damage Identification
Identify damaged or contaminated sections of the paper
03
Format Verification
Ensure that sheet format and alignment meet printing requirements
Inspection at the cross-cutter stage serves as an important quality control step before sheets are delivered to banknote printing presses.
Inspection Scope
Comprehensive Sheet Quality Checks
The Security Paper Inspection System verifies both paper surface quality and the integrity of security features during the sheet cutting process.
Typical inspection scope includes:
Paper Surface Inspection

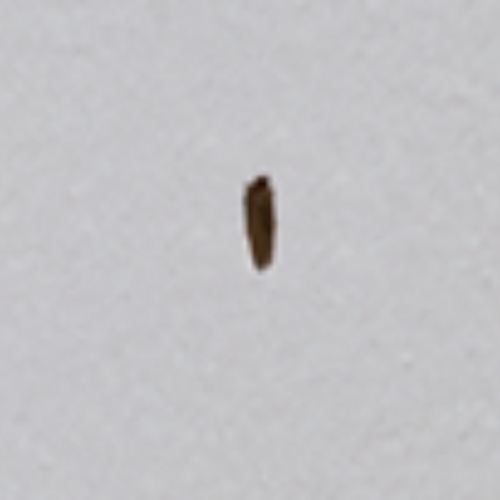

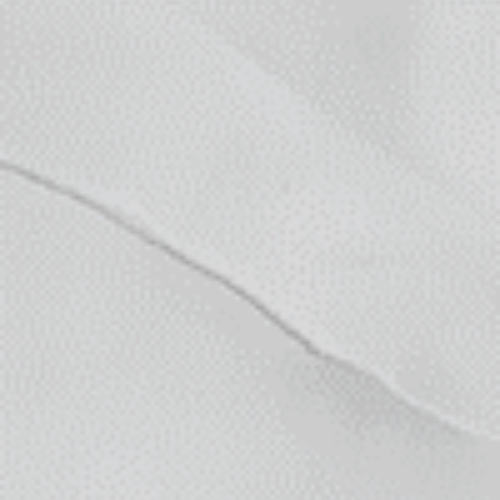

Holes or tears in the paper

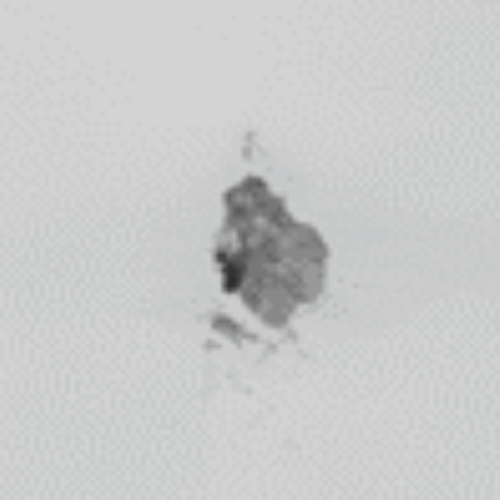

Contamination or foreign particles
Surface marks or scratches
Coating inconsistencies

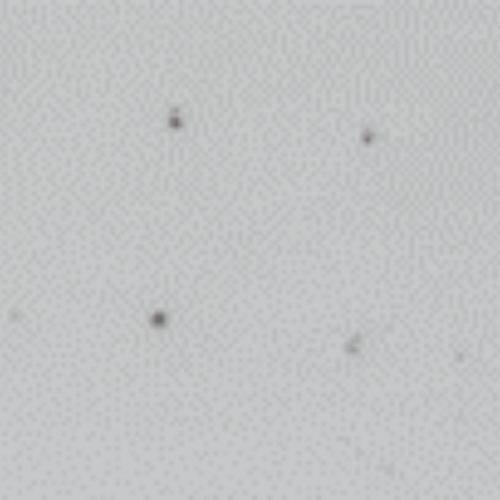

Paper formation defects

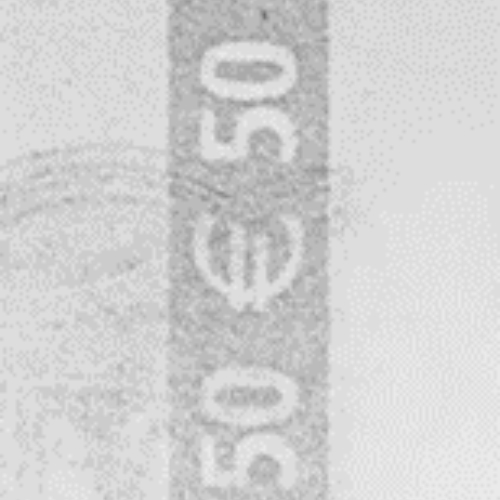

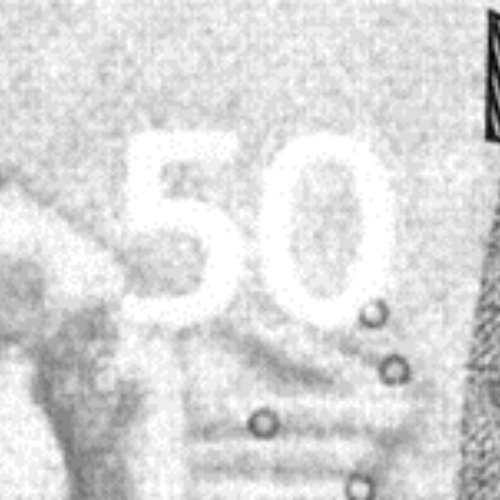

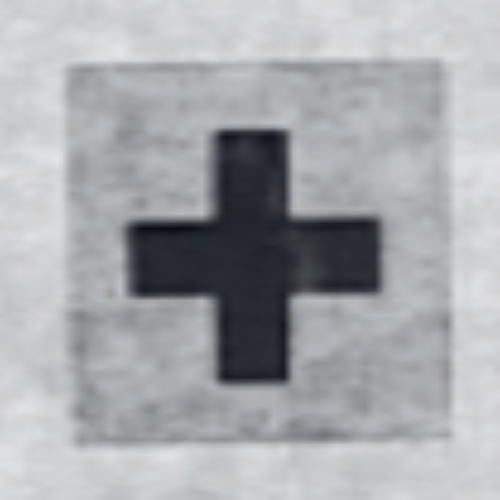

Security Feature Verification

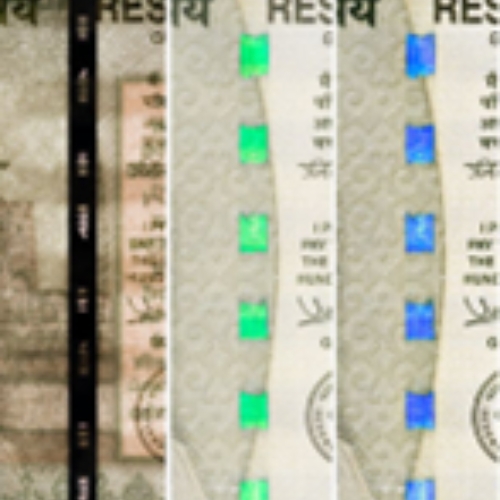

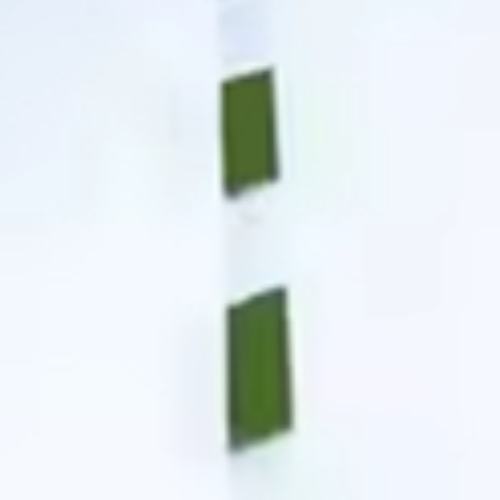

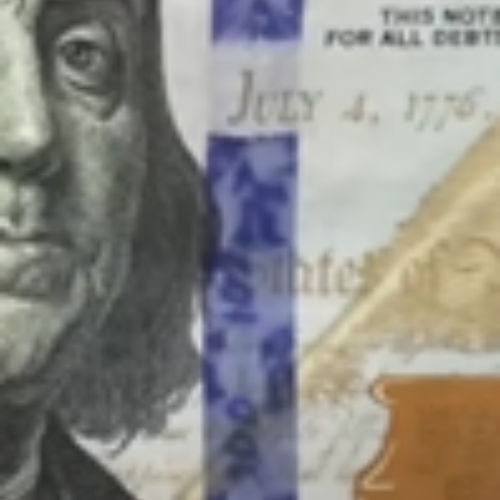

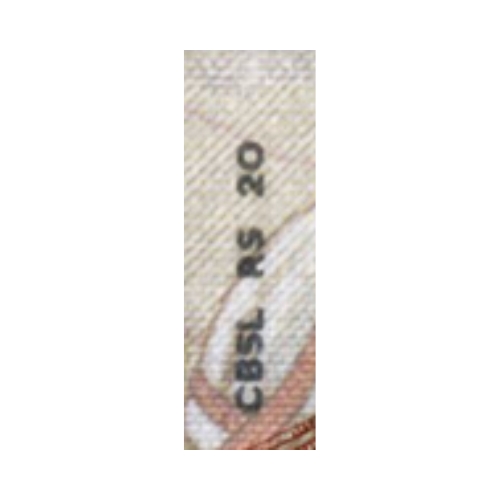

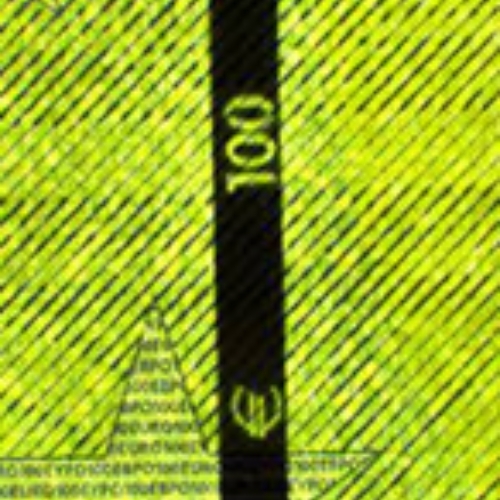

Detection of security threads within the sheet area

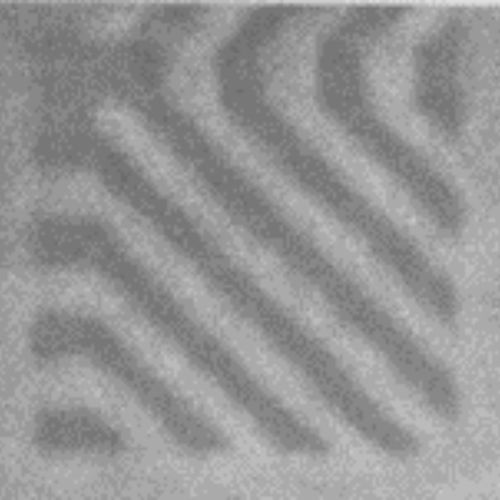

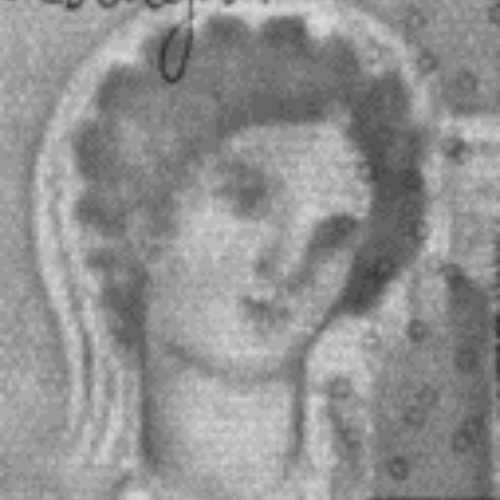

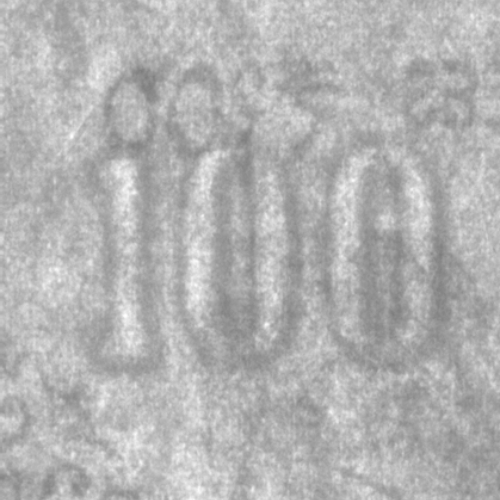

Verification of watermark regions

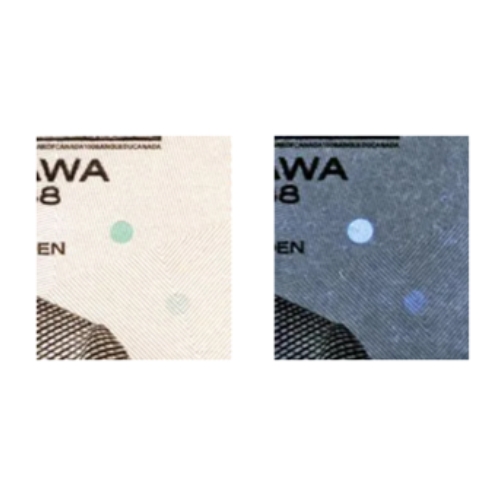

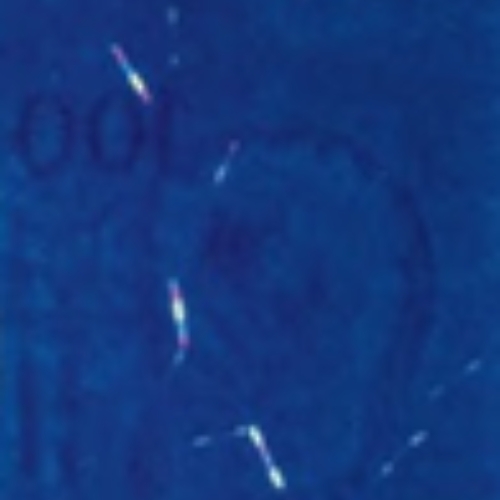

Inspection of embedded fibers
Detection of missing or misaligned security elements
Sheet Integrity Verification
Verification of sheet edges and cut quality
Detection of sheet damage during cutting
Monitoring of sheet uniformity and alignment
These inspections ensure that the sheets prepared for banknote printing meet the required quality and security standards.
System Architecture
Cross-Cutter Inspection System Components
The Security Paper Inspection System for cross cutter applications is designed to operate in high-speed sheet processing environments.
High-Resolution Camera Modules
Industrial cameras capture images of the paper web or sheets as they pass through the cross-cutter inspection zone. These cameras detect fine defects and verify security features within the paper.
Precision Illumination System
Specialized lighting systems provide uniform illumination of the paper surface. Proper lighting conditions allow the inspection system to detect subtle defects and verify embedded security elements.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and identifies deviations from predefined quality criteria.
System Processing Unit
A dedicated processing unit manages image acquisition, inspection algorithms, and communication with the cross-cutter machine.
Operator Monitoring Interface
The operator interface enables production teams to monitor inspection results, review detected defects and manage inspection parameters during sheet cutting operations.

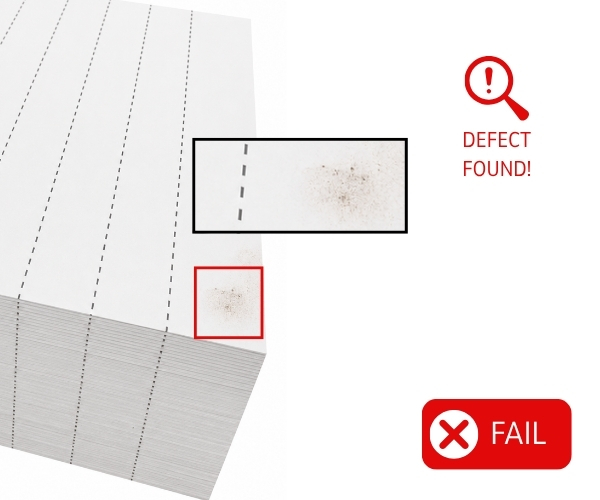

Key System Capabilities
The system provides several capabilities designed for security paper processing environments:
- Continuous inspection during cross-cutting operations
- Real-time detection of paper defects
- Monitoring of embedded security features
- Verification of sheet integrity and surface quality
- Defect image recording and reporting
- Production quality monitoring and statistical analysis
These capabilities ensure that defective sheets are identified before they enter the banknote printing workflow.

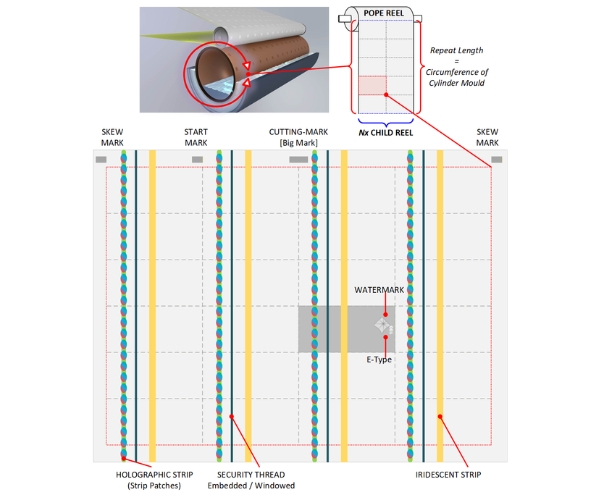

Integration with Cross Cutter Machines
The inspection system integrates with cross cutter machines used in security paper processing.
Typical integration approaches include:

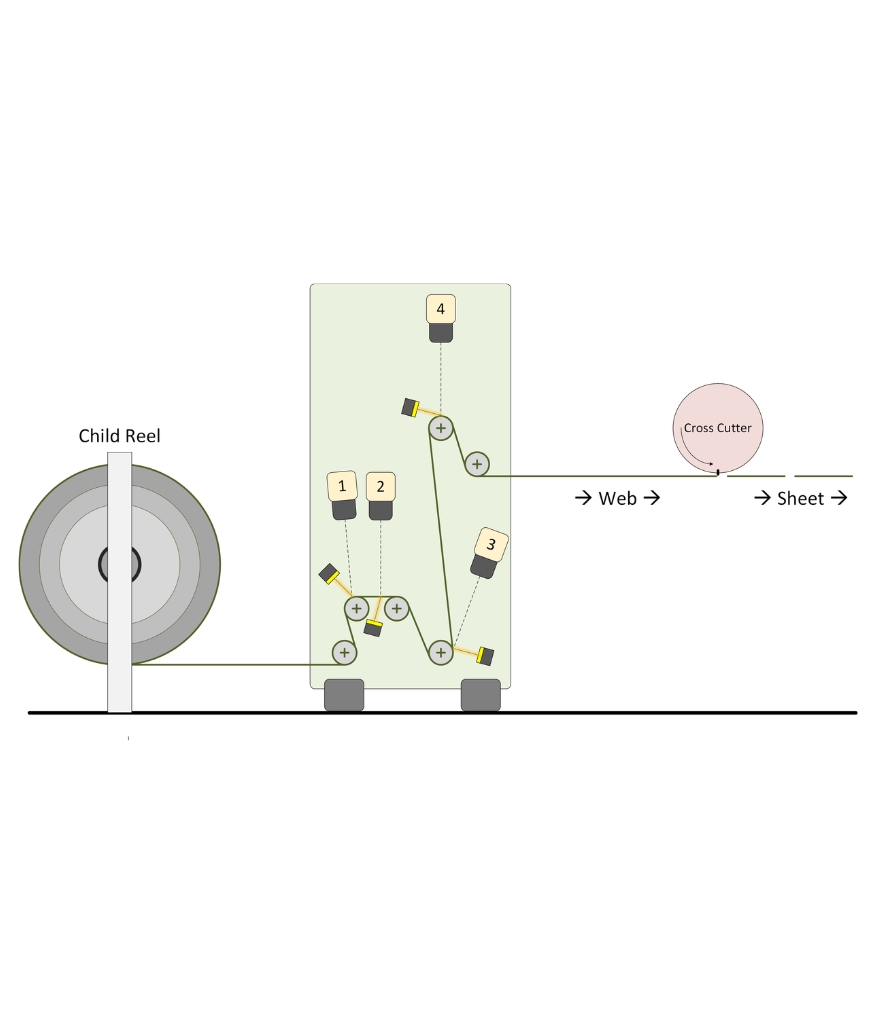

- Camera installation along the paper web path before or after cutting
- Synchronization with machine speed and encoder signals
- Communication with cross cutter control systems
- Automated alerts when defects are detected
This allows inspection to operate seamlessly alongside the sheet cutting process without affecting production speed.

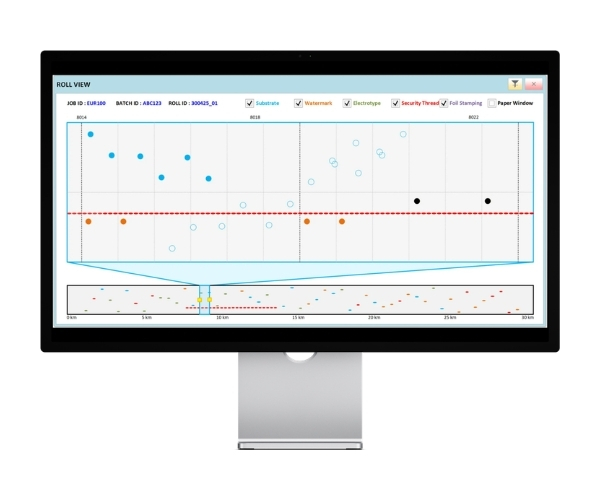

Operator Interface & Workflow
The operator interface provides a clear view of the inspection process and supports efficient monitoring of sheet quality.
Key features include:
- Real-time visualization of inspected paper sheets
- Defect image display and review
- Configurable inspection parameters
- Defect classification and reporting
- Production statistics and inspection reports
Operators can quickly identify defective sheets and remove them before they proceed to print operations.
Benefits
Advantages of Security Paper Inspection
Implementing a Security Paper Inspection System at the cross-cutter stage provides several advantages for banknote paper manufacturers:
01
Early detection of defects before banknote printing
02
Improved quality control of security paper sheets
03
Reduced risk of defective sheets entering printing operations
04
Improved reliability of banknote production materials
05
Enhanced monitoring of security feature integrity
By verifying paper sheets during the cutting process, manufacturers can ensure that only high-quality security paper sheets proceed to banknote printing presses.
