Intaglio Retrofit Overview
Banknote Intaglio Inspection System - Retrofit
Many banknote printing facilities operate intaglio printing presses that have been in service for many years. While these presses continue to deliver reliable production performance, older installations may not include modern automated inspection capabilities required to maintain today’s stringent quality and security standards.
Lucid Imaging’s Banknote Intaglio Inspection System – Retrofit enables existing intaglio printing presses to be upgraded with advanced machine vision inspection technology. The retrofit solution integrates with the press and performs real-time inspection of printed banknote sheets during production. This allows printing facilities to detect printing defects, monitor tactile design consistency, and maintain high production quality without replacing existing equipment.
Printing Stage
Monitoring Tactile Print Quality
The retrofit inspection system operates during the intaglio printing process, where security paper sheets receive the raised tactile printing elements that characterize banknotes.
During production, the inspection system captures images of each printed sheet and verifies that the printed design and tactile features match the approved artwork and production parameters.
Inspection at this stage enables production teams to:
01
In-Process Detection
Detect printing defects during production
02
Tactile Monitoring
Monitor consistency of tactile print structures
03
Issue Identification
Identify issues related to engraving plates, ink transfer, or printing pressure
04
Defect Prevention
Prevent defective sheets from proceeding to numbering and finishing stages
This inspection capability is essential for maintaining the visual and tactile integrity of banknotes.
Inspection Scope
Monitoring Print Quality and Registration
The Banknote Intaglio Retrofit Inspection System verifies print quality, tactile design elements, and sheet alignment during intaglio printing operations.
Typical inspection scope includes:
Print Quality Inspection
Missing print detection

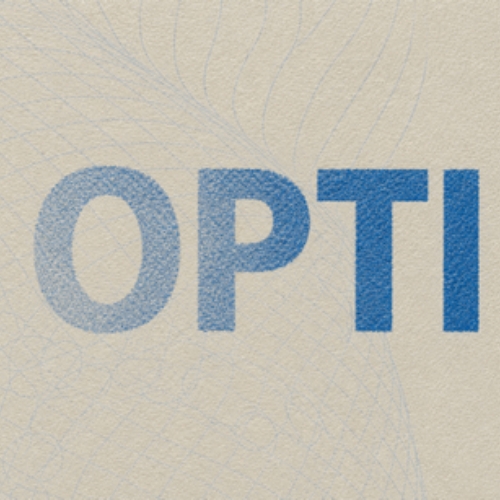

Incomplete ink transfer

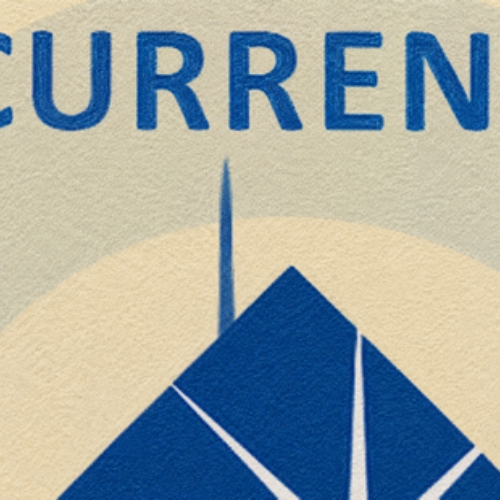

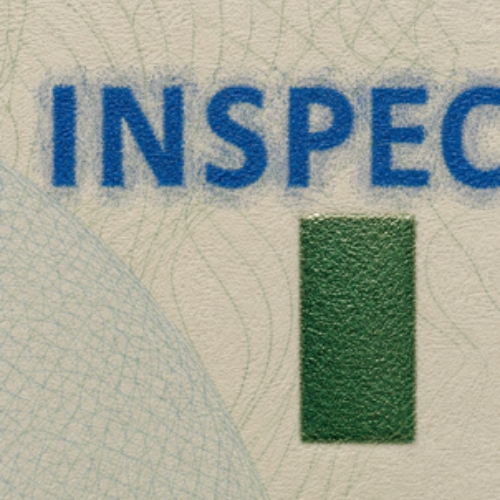

Ink smearing or spreading

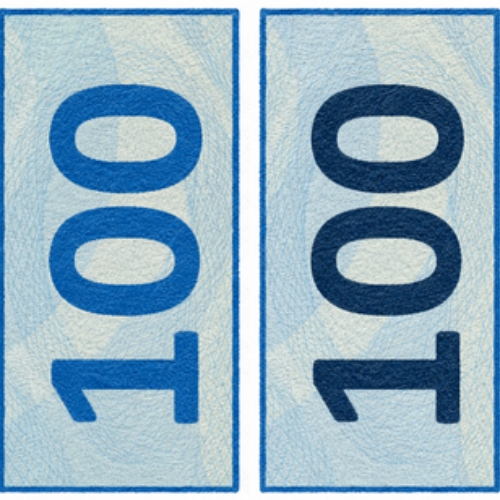

Ink density variations
Print streaks or surface defects
Artwork & Design Verification
Verification of engraved design elements

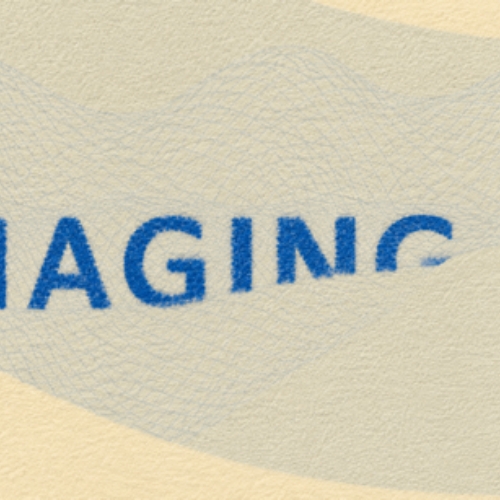

Detection of missing or distorted artwork features
Inspection of portraits, numerals, and key design structures
Monitoring of artwork consistency across sheets

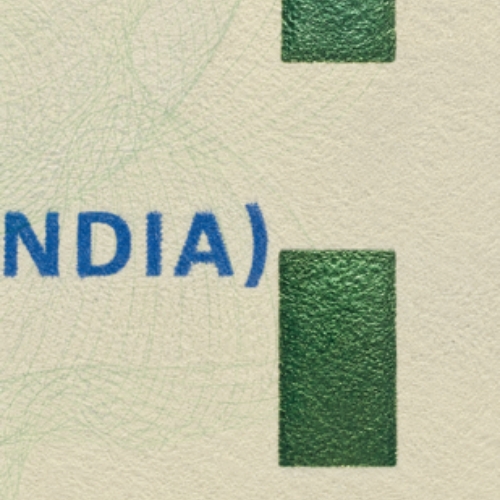

Registration & Alignment Verification
oAlignment of intaglio print with previously printed layers
Verification of sheet positioning during printing
Monitoring of print registration accuracy
These inspections ensure that printed sheets meet the strict quality and security standards required in banknote production.
System Architecture
Components of Retrofit Intaglio Inspection
The retrofit inspection system is designed to integrate with existing intaglio printing presses while maintaining stable production performance.
Camera Inspection Modules
High-resolution industrial cameras are installed along the sheet transport path to capture detailed images of printed banknote sheets during production.
Precision Illumination System
Specialized lighting systems provide uniform illumination of the printed sheet surface, allowing accurate detection of printing defects and artwork inconsistencies.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and compares them with reference artwork to detect deviations.
System Processing Unit
A high-performance processing unit manages image acquisition, inspection algorithms, and communication with the printing press.
Operator Monitoring Station
The operator interface enables production teams to monitor inspection results, review detected defects, and configure inspection parameters.

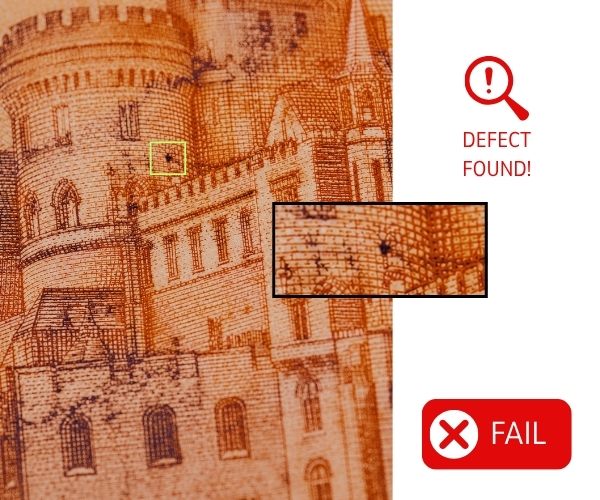

Key System Capabilities
The retrofit inspection solution provides several capabilities designed to upgrade existing banknote printing lines:
- Real-time inspection of printed banknote sheets
- Automated comparison with reference artwork
- Detection of printing defects and artwork deviations
- Monitoring of tactile print feature consistency
- Defect image recording and reporting
- Production quality monitoring and statistical analysis
These capabilities allow older intaglio presses to achieve modern inspection performance and improved quality control.

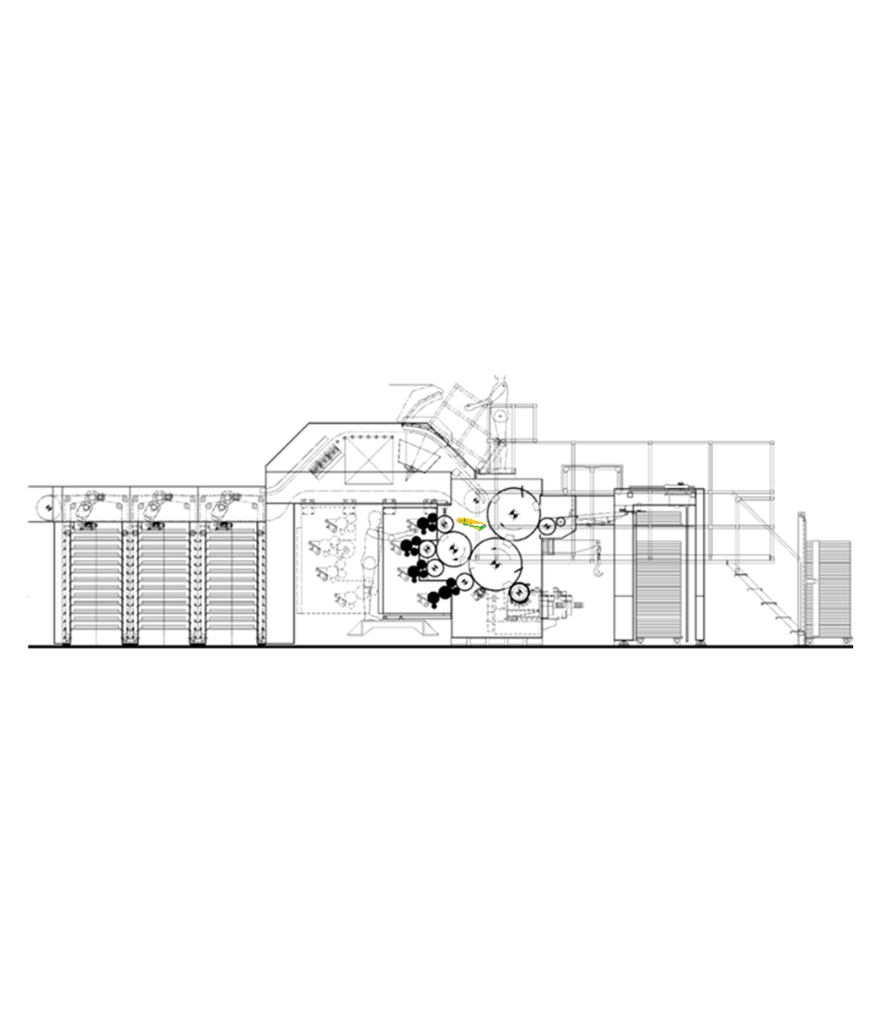

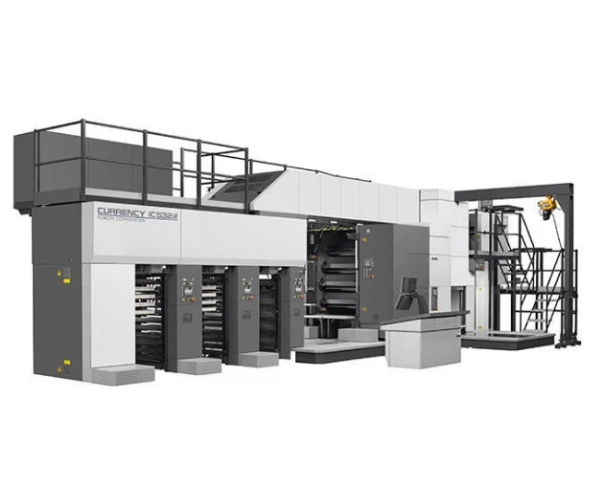

Integration with Intaglio Printing Presses
The retrofit inspection system integrates with intaglio printing presses already operating in banknote production facilities.
Typical integration features include:
- Installation of camera modules along the sheet transport path
- Synchronization with sheet movement and press speed
- Integration with press control systems where required
- Minimal modification of the existing press structure
This allows printing facilities to enhance inspection capabilities while continuing to operate their existing equipment.
Operator Interface & Workflow
The operator interface provides a clear and efficient environment for monitoring inspection results during production.
Key features include:
- Real-time visualization of inspected sheets
- Defect image display and review
- Configurable inspection parameters
- Inspection statistics and production reports
- Alerts for detected defects or deviations
Operators can quickly identify printing issues and take corrective actions to maintain stable production quality.
Benefits
Advantages of Upgraded Intaglio Systems
Implementing a retrofit inspection system provides several advantages for banknote printing facilities:
01
Modernization of existing intaglio printing presses
02
Improved detection of printing defects during production
03
Enhanced monitoring of tactile print quality
04
Reduced waste and production risks
05
Extended operational life of existing printing equipment
By upgrading existing intaglio presses with advanced inspection technology, manufacturers can ensure that banknote production continues to meet the highest quality and security standards.
