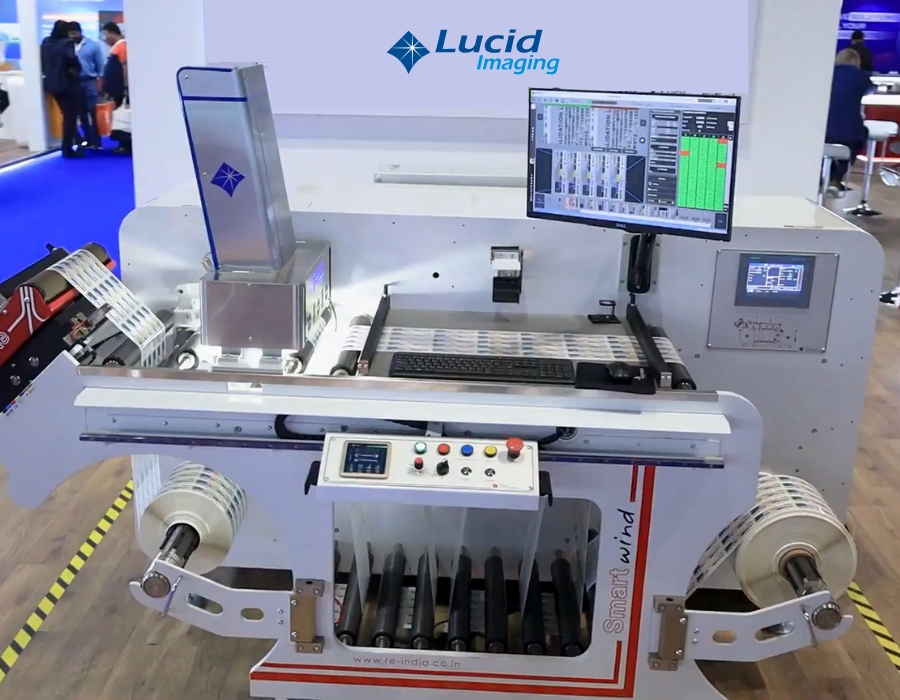

Label Inspection System - Slitter Rewinder
The Label Inspection System for Slitter Rewinder is designed to perform 100% inspection of printed labels during the converting stage. After labels are printed on presses, they are typically processed on slitter rewinders where large rolls are slit into smaller rolls for final packaging and distribution.
Lucid Imaging’s label inspection integrates directly with slitter rewinder to verify print quality and detect defects before the labels are delivered to customers or used in packaging operations. By inspecting labels during the rewinding process, manufacturers can ensure that defective labels are detected and removed before shipment, maintaining product quality, and preventing downstream packaging errors.
Converting Stage
Final Quality Inspection During Label Converting
Inspection in slitter rewinder occurs after the printing process, during the converting stage where printed label rolls are slit, inspected, and rewound.
This stage is particularly important because it allows manufacturers to:
01
Final Print Check
Verify print quality after the complete printing process to ensure labels meet required standards.
02
Hidden Defect Detection
Detect defects that were not visible during printing to prevent faulty labels from reaching production.
03
Pre-Delivery Inspection
Inspect labels before sending them to packaging lines or delivering them to customers.
The slitter rewinder inspection process enables final quality assurance for printed label rolls, ensuring that only approved labels move forward in the supply chain.
Inspection Scope
Comprehensive Label Quality Inspection
The Label Inspection System verifies both print quality and label consistency during the converting process.
Typical inspection scope includes:
Print Quality Inspection

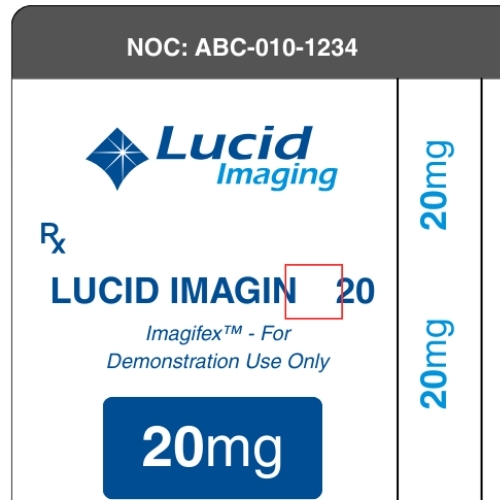

Missing Print Detection

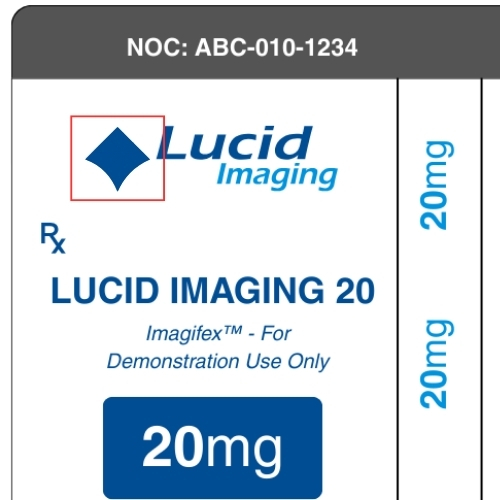

Ink Smearing or Ink Spread

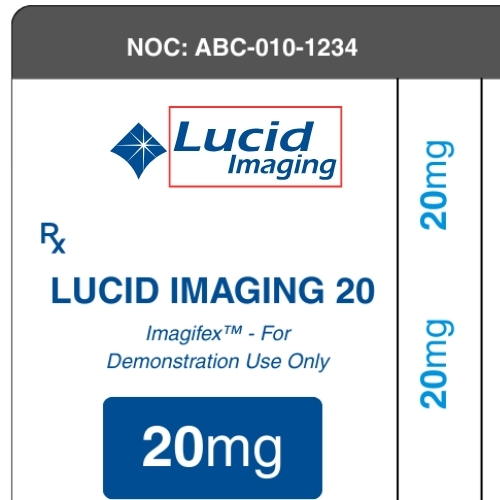

Colour Deviation Detection

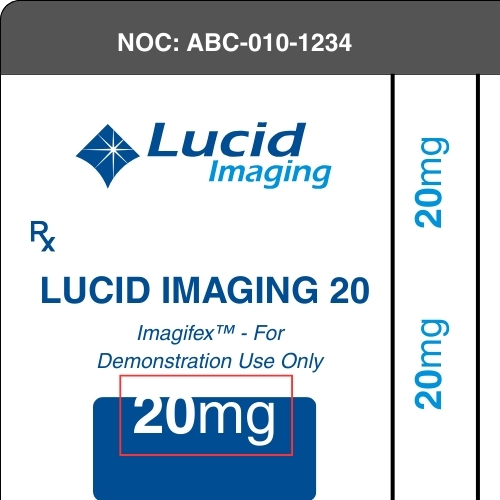

Print Registration Errors

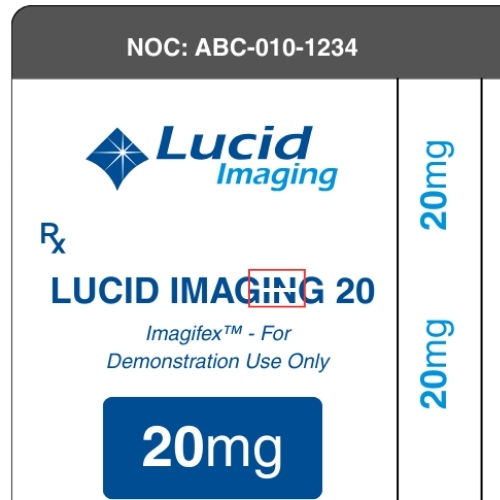

Broken or Distorted Characters
Artwork & Graphic Inspection
Logo Verification

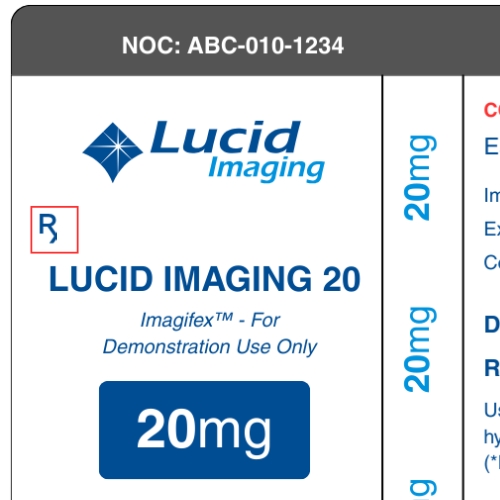

Detection of Missing Design Elements

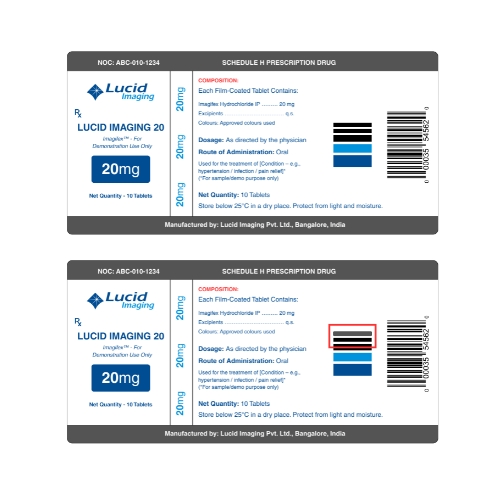

Artwork Alignment Verification
Print Consistency Monitoring
Code & Data Inspection

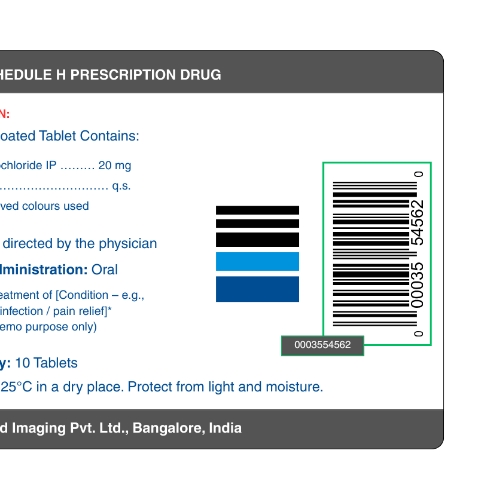

Barcode Reading and Verification

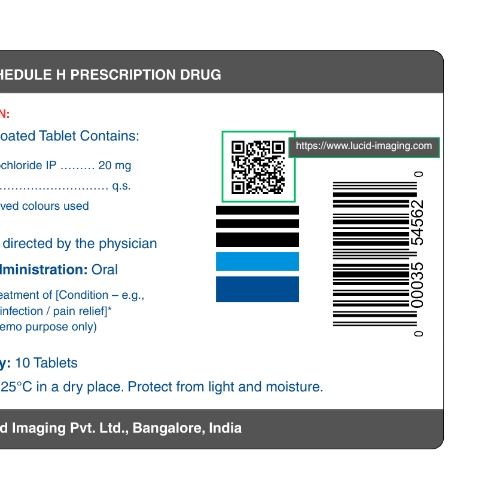

QR Code Inspection

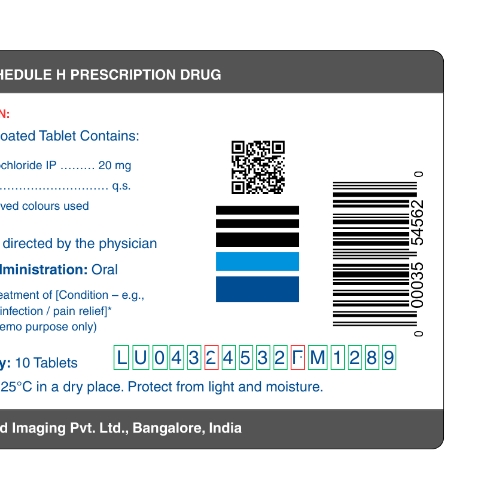

OCR / OCV Verification

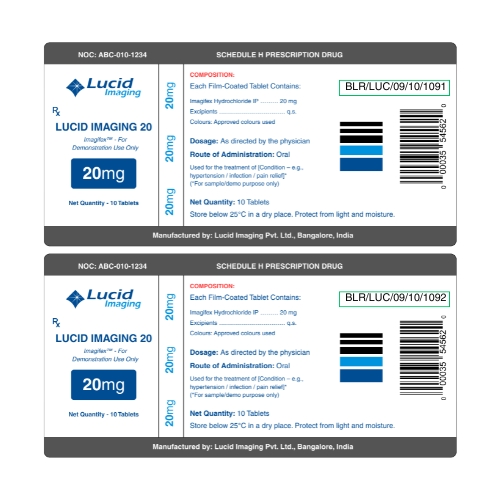

Serial Number Verification

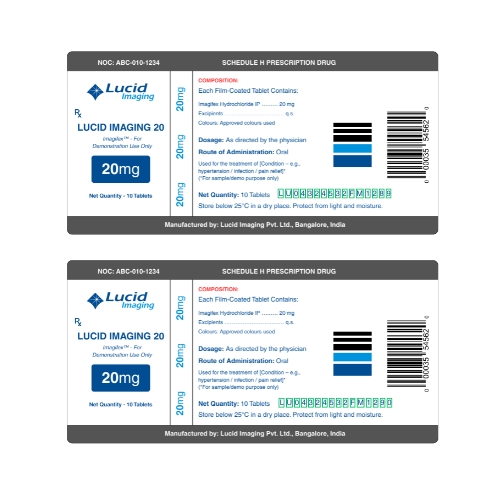

Variable Data Inspection
This comprehensive inspection ensures that every label on the roll meets the required quality standards.
System Architecture
Optimized for High-Speed Label Inspection
The Label Inspection System for slitter rewinder is designed to operate reliably in high-speed roll-to-roll converting environments.

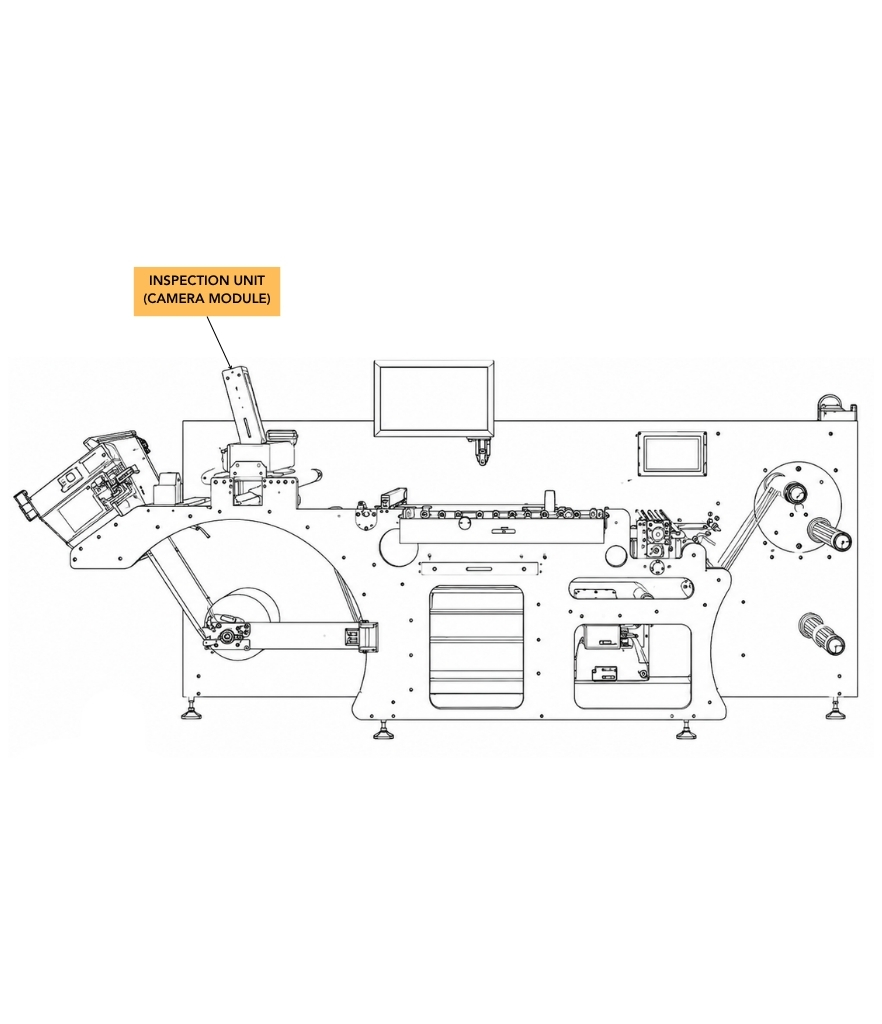

Industrial Camera Modules
High-resolution line scan cameras capture images of printed labels as the web moves through inspection, accurately detecting fine print details even at high production speeds.
Advanced Lighting System
Precision illumination ensures uniform lighting across the web, enabling accurate detection of print defects, colour variations, and surface inconsistencies during inspection.
Image Processing Software
Real-time image processing software analyzes captured images and compares them with a master image, automatically detecting and flagging any deviations from approved artwork.
System Controller
The inspection controller processes image data in real time, manages system communication, detects defects, and records information for quality tracking.
Operator Workstation
The operator interface allows production teams to monitor inspection results, review detected defects, and adjust inspection parameters during the rewinding process.

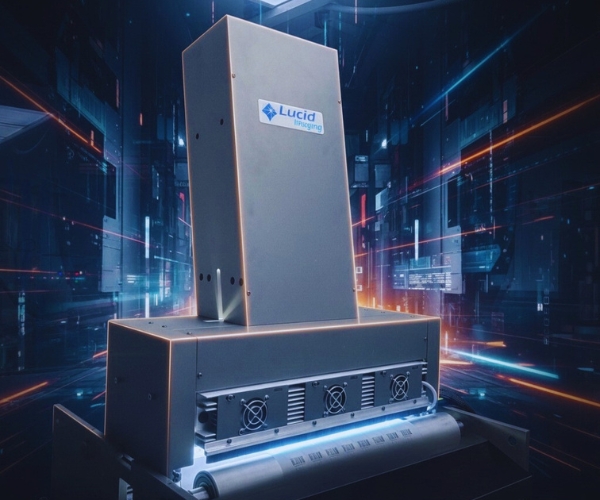

Key System Capabilities
The inspection system provides several capabilities that support high-quality label converting operations:
- Continuous roll-to-roll inspection of printed labels
- Real-time defect detection and alarm generation
- Automated comparison with reference artwork
- Barcode and 2D code verification
- Variable data verification
- Defect image recording and reporting
- Production statistics and inspection reports
These capabilities help converting operations maintain consistent label quality before final delivery.
Integration with Converting Lines

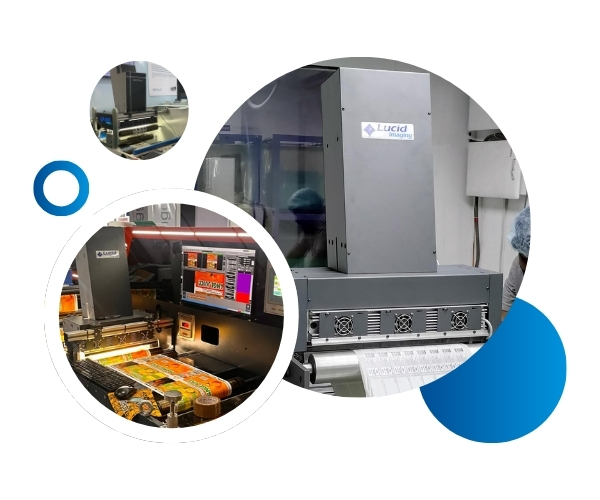

The inspection system is designed to integrate with slitter rewinder machines and roll-to-roll converting equipment used in label production.
Typical integration features include:
- Camera installation along the web path
- Synchronization with web speed and encoder signals
- Automatic defect marking or stop signals
- Integration with inspection and rewinding workflows
This allows manufacturers to inspect labels while maintaining normal converting speeds and production efficiency.

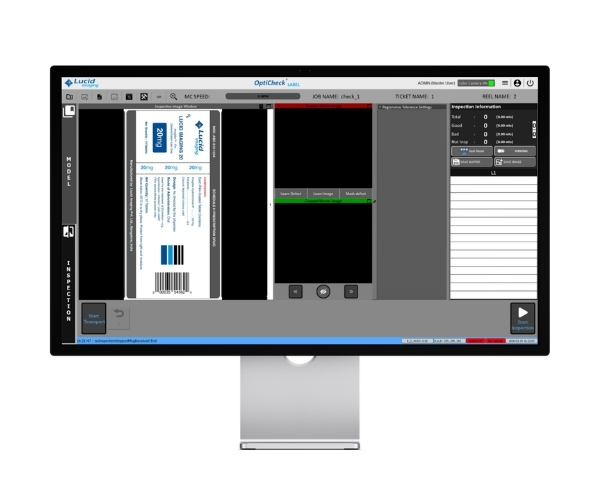

Operator Interface & Workflow
The operator interface provides a clear and intuitive environment for monitoring the inspection process.
Key features include:
- Real-time display of inspected labels
- Defect image visualization
- Defect classification and review
- Inspection parameter configuration
- Production reporting and quality statistics
Operators can quickly identify defect locations and take corrective action during the rewinding process.
Benefits
Improve Label Quality and Production Reliability
Implementing a slitter rewinder inspection system provides several advantages for label manufacturers:
01
Final quality verification before shipment
02
Early detection of print defects in finished rolls
03
Reduced risk of defective labels reaching customers
04
Improved quality assurance in label production
05
Enhanced traceability and production reporting
By inspecting labels during the converting process, manufacturers can ensure that only defect-free label rolls are delivered for packaging or distribution.
