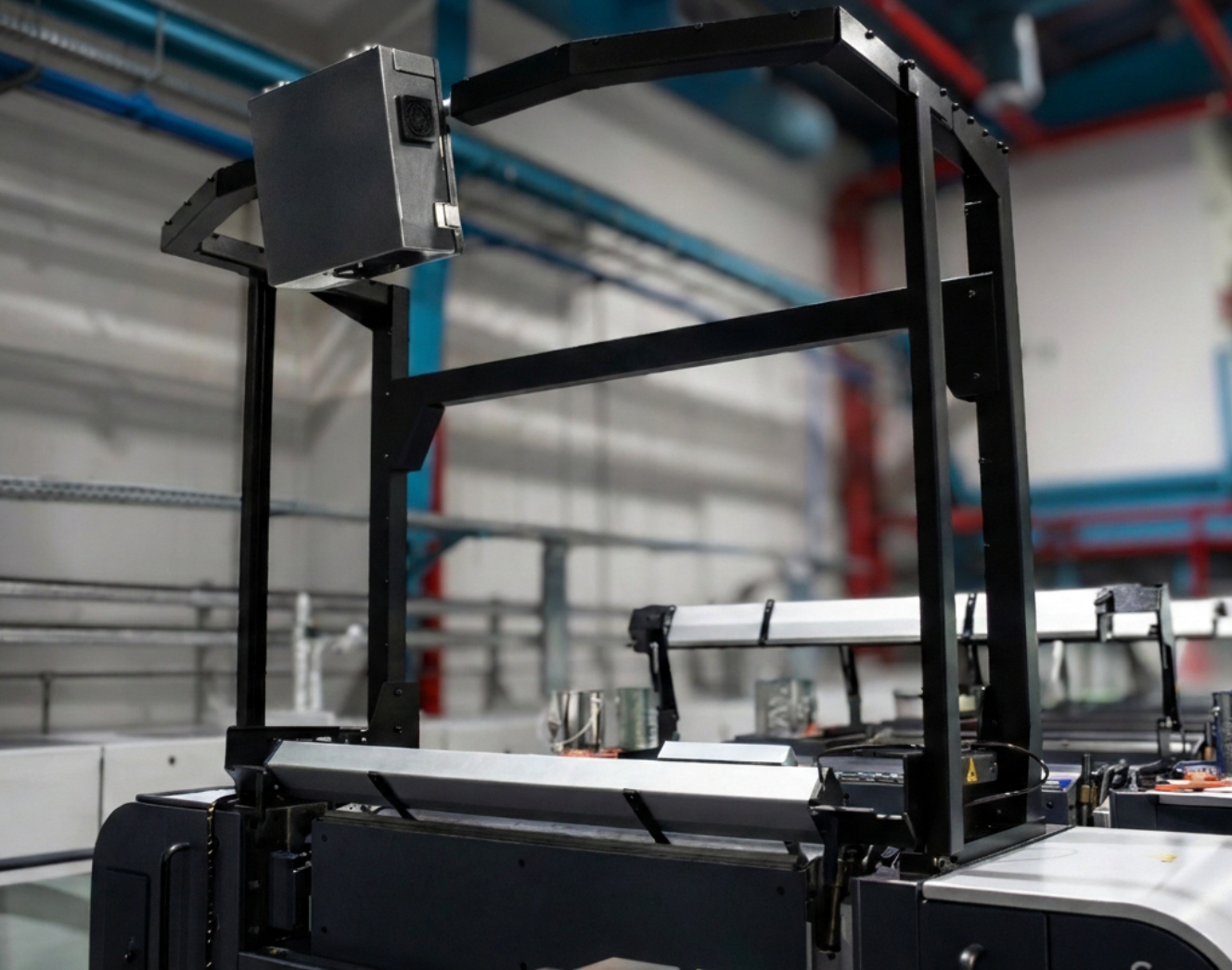

Passport Sheet Inspection System - Retrofit
Passport documents are among the most secure identity documents issued by governments. The printing of passport pages requires extremely precise reproduction of security design elements such as microtext, guilloche patterns, background security graphics, fine line structures, and machine-readable zones (MRZ). Any deviations in printing quality or inaccuracies in printed information can compromise the reliability and usability of the document.
Lucid Imaging’s Passport Sheet Inspection System – Retrofit enables automated inspection of printed passport sheets during production. The system integrates with existing security printing presses and monitors printed sheets in real time to detect defects, verify artwork consistency, and validate printed information fields. By identifying issues during production, the system ensures that only compliant passport sheets proceed to downstream processes such as personalization and booklet assembly.
Printing Stage
Where This Inspection Is Used
Inspection is performed during the passport sheet printing process, where security artwork and document structures are printed onto sheets that will later be processed into passport booklets.
During production, the inspection system captures images of printed sheets and verifies that the printed elements match the approved passport design.
Inspection at this stage enables production teams to:
Inspection Stage
- Detect printing defects during production
- Verify the accuracy of security artwork and background patterns
- Monitor consistency of printed design elements across sheets
- Ensure correct printing of machine-readable zones and text fields
This inspection stage helps maintain the strict quality and security standards required for passport production.
Inspection Scope
Comprehensive Verification of Print, Security Artwork, and Data Fields
The Passport Sheet Inspection System verifies print quality, security artwork, and printed data fields on passport sheets.
Typical inspection scope includes:
Print Quality Inspection
Missing print detection
Colour inconsistencies
Ink density variations
Smudged or distorted printing
Print streaks or surface defects

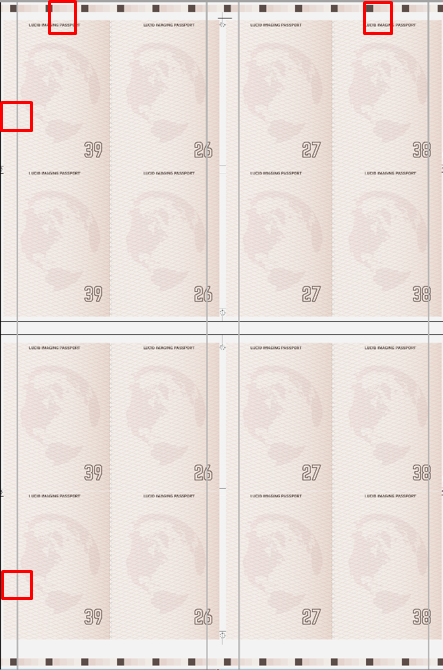

Security Artwork Verification
Verification of microtext and fine line structures
Inspection of guilloche patterns and background designs
Detection of missing or distorted design elements
Monitoring of artwork consistency across sheets
Data Field Verification
Inspection of printed text fields
OCR / OCV verification of printed characters
Verification of machine-readable zones (MRZ)
Validation of document layout elements
These inspections ensure that printed passport sheets comply with strict government security printing standards.
System Architecture
Integrated Inspection System for Secure Passport Printing
The Passport Sheet Inspection System is designed to integrate with existing security printing presses used for passport production.
High-Resolution Camera Modules
Industrial cameras capture detailed images of printed passport sheets as they pass through the inspection station.
Precision Illumination System
Specialized lighting systems provide uniform illumination of the printed sheet surface, allowing reliable detection of printing defects and artwork inconsistencies.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images and compares them with approved passport artwork to detect deviations.
OCR / OCV Data Verification Engine
Optical character recognition algorithms verify printed text fields and machine-readable zones to ensure correct information formatting.
System Processing Unit
A high-performance processing system manages image acquisition, inspection algorithms, and communication with the printing press.
Operator Inspection Interface
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.

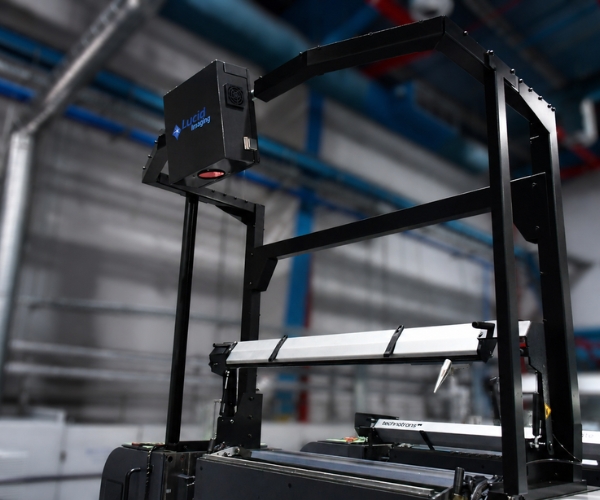

Key System Capabilities
The Passport Sheet Inspection System provides capabilities specifically designed for security document printing environments:
- Real-time inspection of printed passport sheets
- Verification of complex security artwork
- Detection of printing defects and inconsistencies
- OCR / OCV verification of text fields and MRZ zones
- Automated comparison with reference passport designs
- Defect image recording and reporting
- Production statistics and quality monitoring
These capabilities help ensure the accuracy and integrity of passport document production.

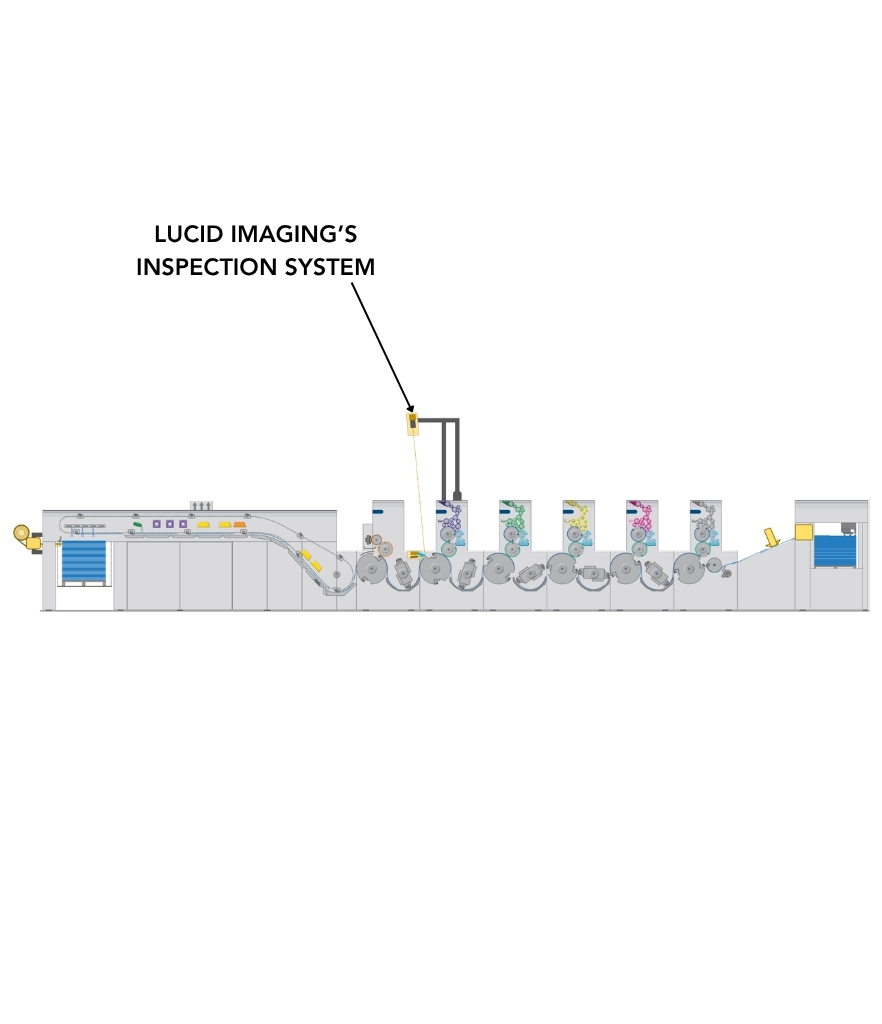

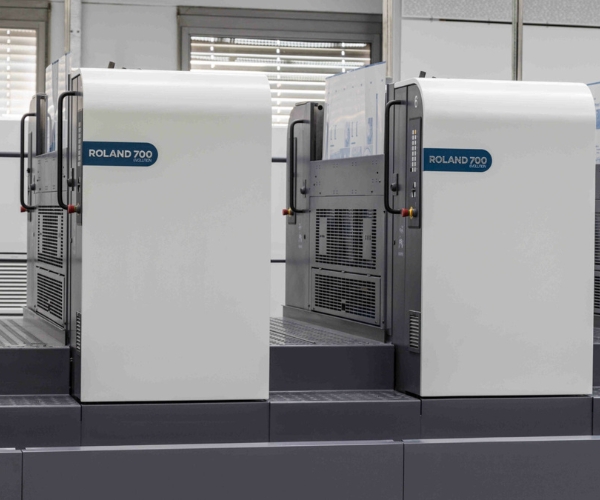

Integration with Security Printing Presses
The retrofit inspection solution integrates with existing printing presses used in passport sheet production.
Typical integration features include:
- Installation of camera modules along the sheet transport path
- Synchronization with press speed and sheet movement
- Communication with press control systems where required
- Minimal modification of the existing press architecture
The system can be integrated with security printing presses supplied by major manufacturers as well as other presses used in passport production facilities.

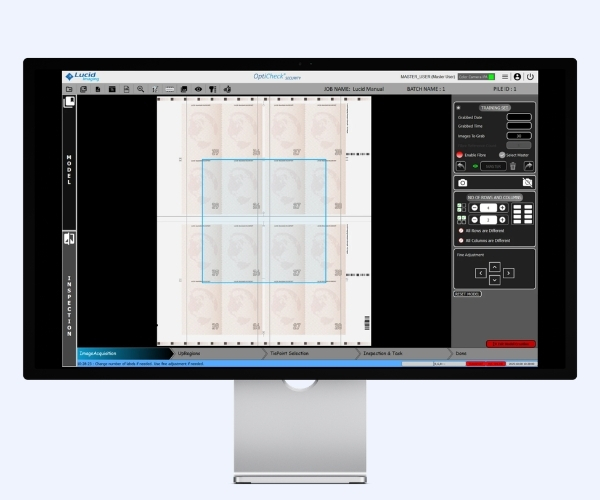

Operator Interface & Workflow
The operator interface provides an efficient environment for monitoring inspection results during passport sheet production.
Key features include:
- Real-time visualization of inspected sheets
- Defect image display and review
- OCR verification results display
- Configurable inspection parameters
- Inspection statistics and production reports
Operators can quickly identify printing issues and take corrective action to maintain stable production quality.
Benefits
Enhanced Compliance, Accuracy, and Security Assurance
Implementing a Passport Sheet Inspection System provides several advantages for security printing facilities:
01
Improved detection of printing defects during production
02
Automated verification of passport artwork and data fields
03
Improved compliance with government document standards
04
Reduced risk of defective passport pages entering production
05
Enhanced traceability and production documentation
By inspecting passport sheets during printing operations, manufacturers can ensure that only fully compliant and correctly printed documents proceed to passport assembly processes.
