Printing Overview
Inline Label Inspection System
The Inline Label Inspection System is designed to perform 100% inspection of printed labels directly on narrow web printing presses. Label printing is widely used in industries such as pharmaceuticals, food packaging, cosmetics, and consumer goods where even minor print defects can result in regulatory issues, product recalls, or brand damage.

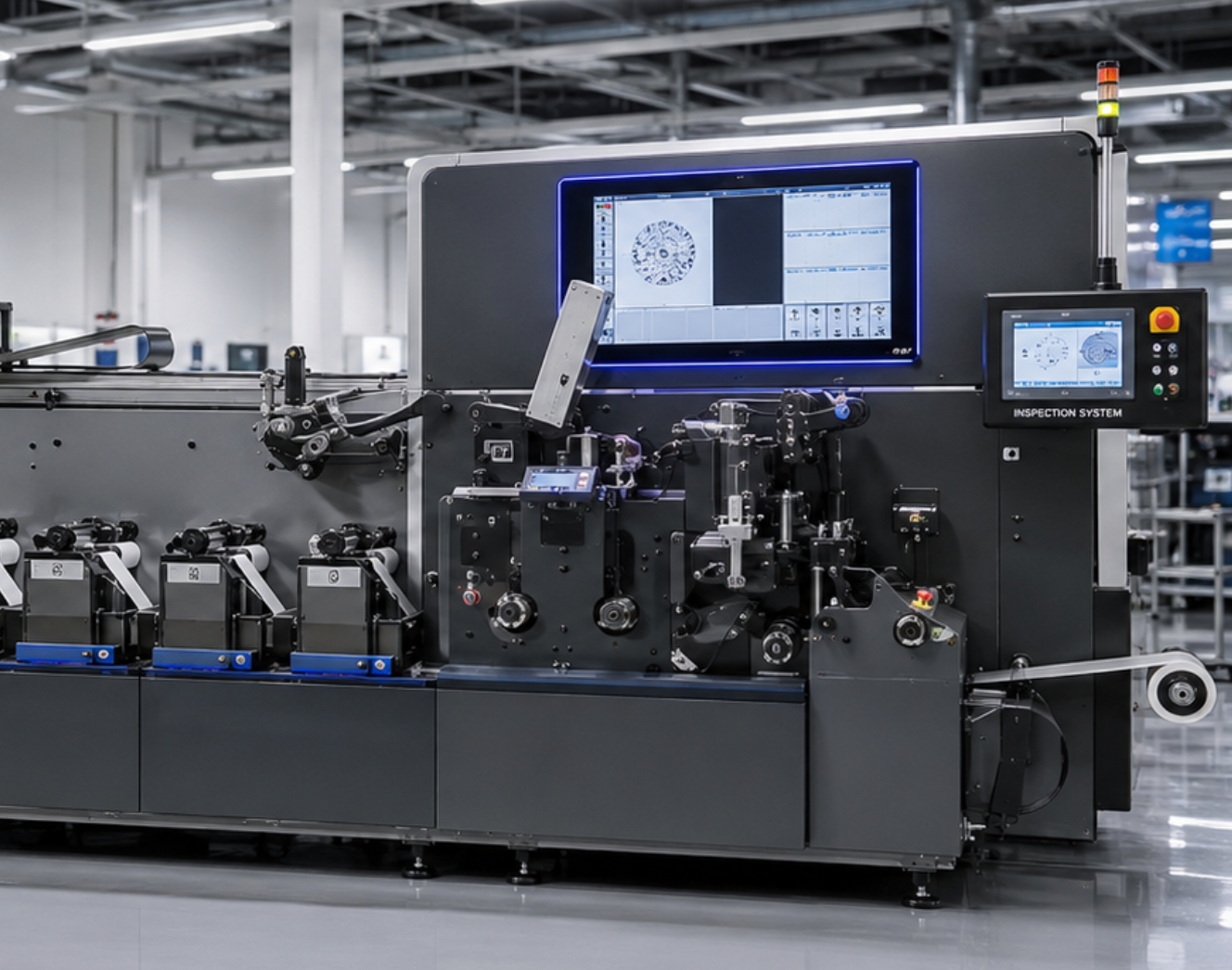

Lucid Imaging’s inline label inspection system continuously monitors the printed web during production and automatically detects printing defects in real time. By integrating high-resolution line scan camera and advanced image processing software with the printing press, the system ensures that every printed label meets strict quality requirements before it proceeds to downstream converting or packaging operations.
Printing Stage
Real-Time Inspection During Printing Process
Inline label inspection is performed during the printing process on narrow web presses. The system captures images of the printed web immediately after the printing units, enabling real-time verification of print quality.
This inspection stage allows manufacturers to:
01
Early Detection
Detect defects as soon as they occur
02
Print Issue Identification
Identify issues with printing plates, ink flow, or registration
03
Production Control
Stop production before large quantities of defective labels are produced
Inline inspection is particularly important for applications such as pharmaceutical labels and security labels, where print accuracy and traceability are critical.
Inspection Scope
Comprehensive Inspection of Print and Data
The Inline Label Inspection System verifies both print quality and printed information on every label.
Typical inspection scope includes:
Print Quality Inspection

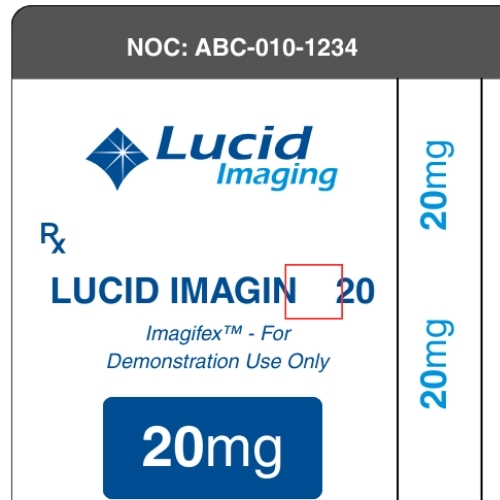

Missing Print Detection
Ink Smearing or Ink Spread

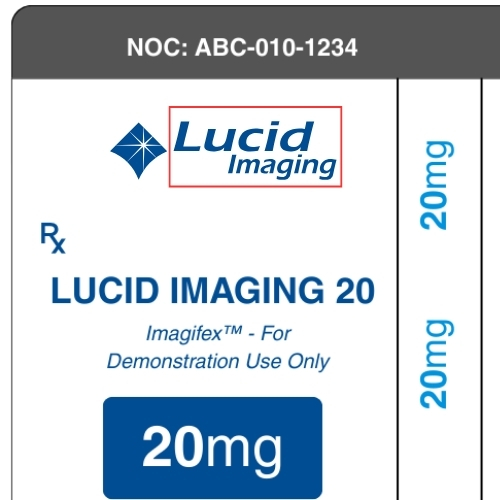

Colour Deviation Detection

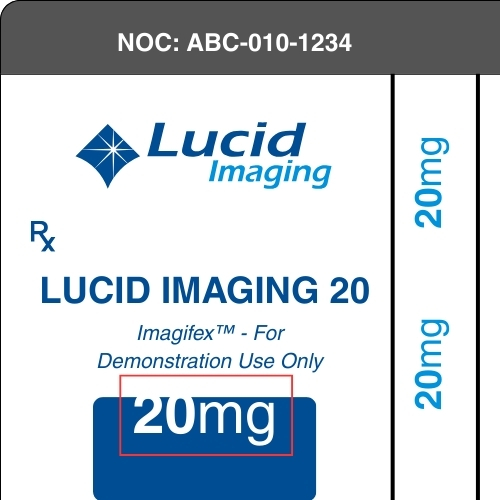

Print Registration Errors
Broken or Distorted Characters
Artwork & Graphic Inspection
Logo Verification

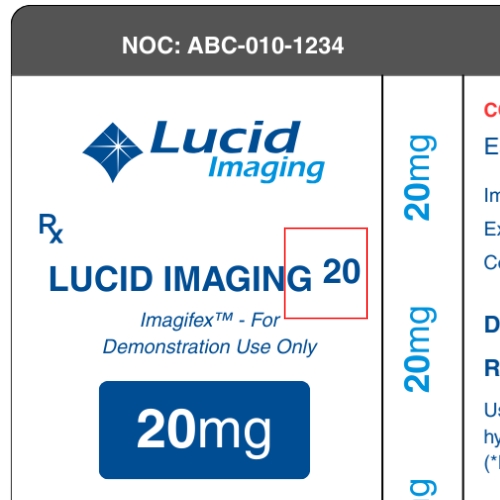

Graphic alignment verification
Detection of Missing Design Elements
Verification of artwork consistency

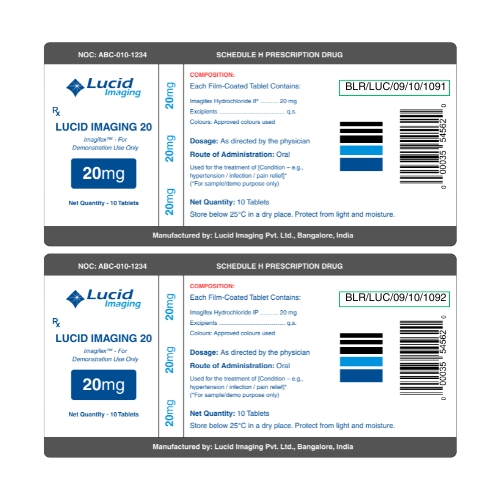

Code & Data Inspection
Barcode Reading and Grading
QR Code Verification

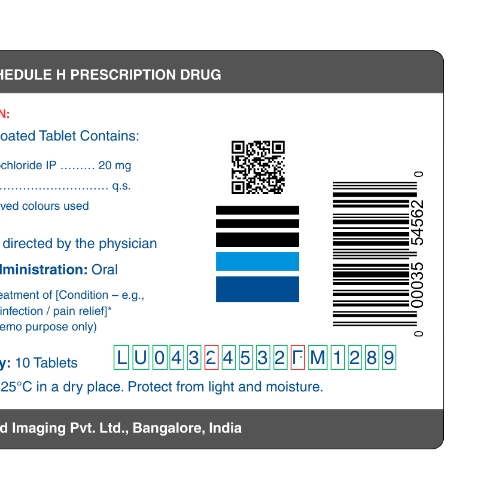

OCR / OCV Inspection

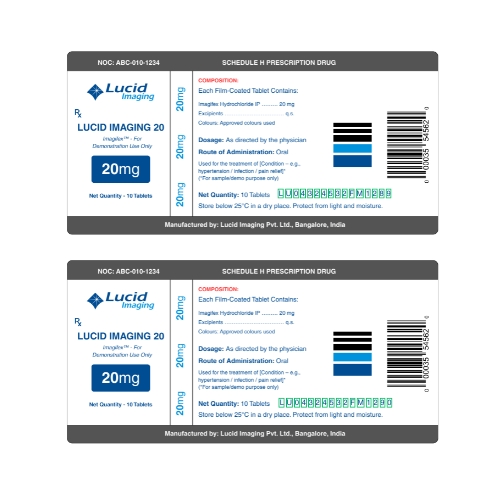

Variable Data Verification
Serial Number Verification
This comprehensive inspection ensures that both visual quality and machine-readable data are verified during production.
System Architecture
High-Performance Components for Print Inspection
The Inline Label Inspection System consists of multiple hardware and software components designed to operate reliably in high-speed printing environments.

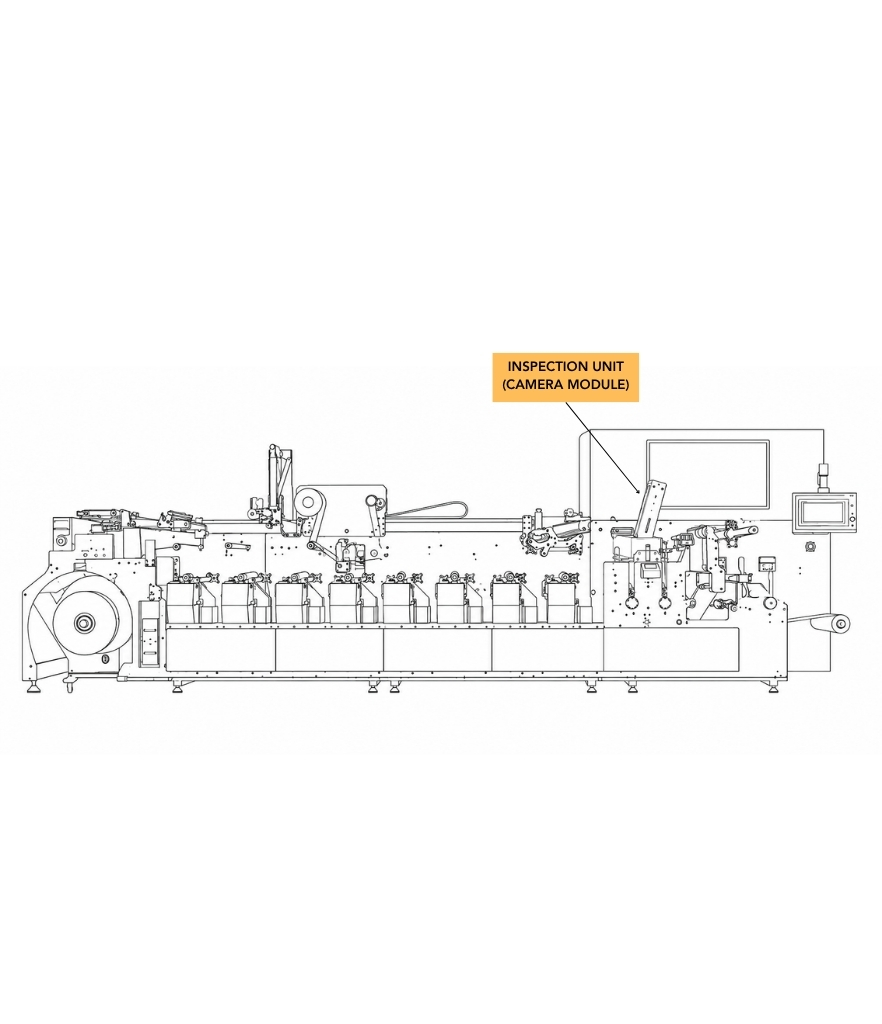

Industrial Camera Modules
High-resolution line scan camera capture images of the printed web as it moves through the printing press. The camera is capable of inspecting fine print details and detecting small defects at high production speeds.
Precision Illumination
Specialized lighting system ensures uniform illumination across the printed web. Proper lighting is critical for detecting colour variations, print defects, and surface irregularities.
Image Processing Software
Advanced inspection software analyzes captured images in real time. The software compares each printed label with a reference image and detects deviations based on predefined inspection parameters.
Imaging Unit & System Controller
A dedicated imaging unit manages image acquisition, and defect detection. The system controller communicates with the press and also processes inspection data in real time and generates alerts when defects are detected.
Production Monitoring Interface
An operator workstation provides real-time monitoring of inspection results. Operators can view detected defects, adjust inspection parameters, and monitor production performance.

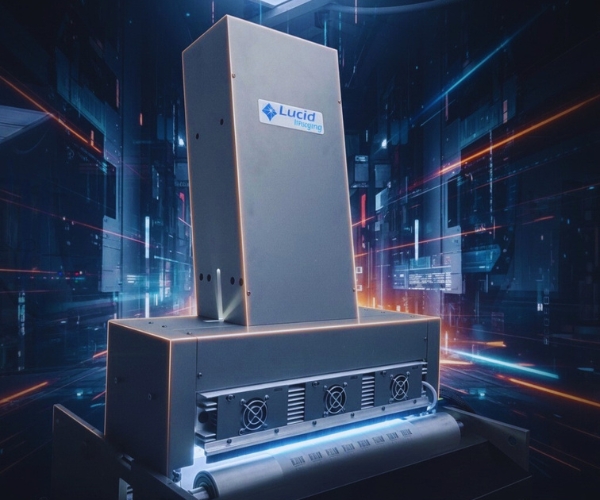

Key System Capabilities
The Inline Label Inspection System provides several advanced capabilities designed for high-speed label production.
- Continuous inspection of the printed web
- Real-time defect detection and alarm generation
- Automatic comparison with approved artwork
- Barcode and 2D code verification
- Variable data inspection
- Defect classification and reporting
- Production statistics and quality monitoring
These capabilities help manufacturers maintain consistent label quality while minimizing production losses.

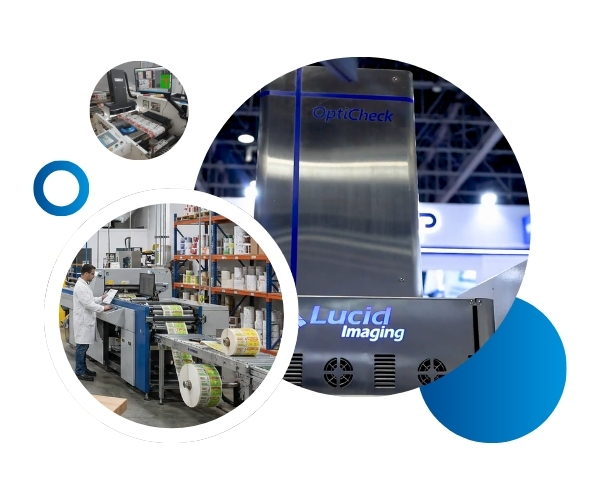

Integration with Production Lines
The system is designed to integrate seamlessly with narrow web printing presses and associated converting equipment.
Typical integration points include:
- Mounting camera modules along the printing line
- Synchronization with web speed and encoder signals
- Communication with press control systems
- Optional marking or rejection systems
The inspection system operates continuously during production and can trigger alerts or corrective actions when defects are detected.

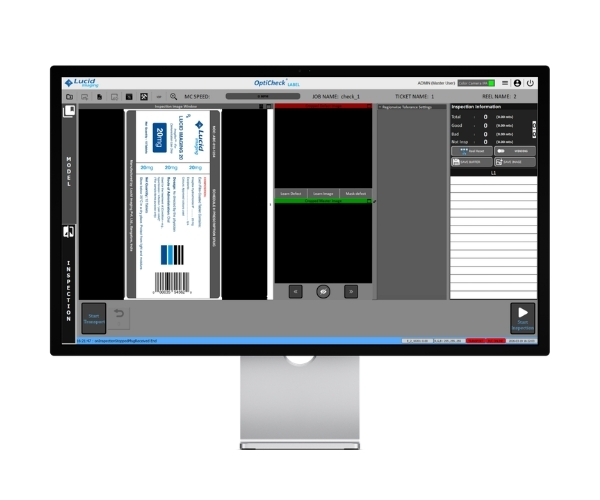

Operator Interface & Workflow
The operator interface allows production teams to monitor inspection results and manage the inspection process efficiently.
Key features include:
- Real-time defect visualization
- Defect image review
- Configurable inspection parameters
- Production statistics and reports
- Operator alerts and notifications
This interface enables operators to quickly identify production issues and maintain optimal print quality.
Benefits
Enhanced Quality Control and Waste Reduction
Implementing an Inline Label Inspection System provides several advantages for label manufacturers:
01
Early detection of printing defects
02
Reduced material waste
03
Improved production efficiency
04
Enhanced traceability and compliance
05
Consistent label quality across production runs
By inspecting every printed label during production, manufacturers can ensure that only high-quality labels proceed to downstream processes.
