Postpress / Converting Overview

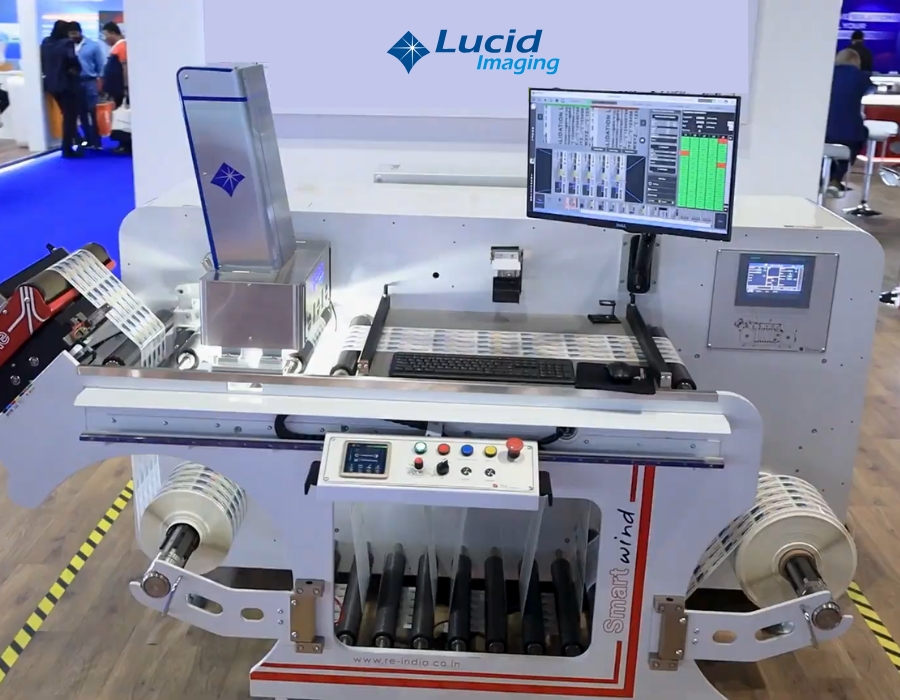

Wide Web Inspection System - Slitter Rewinder
Wide web printing processes such as flexible packaging production, publication printing, and industrial roll-to-roll printing often require post-printing inspection before materials are delivered to downstream operations. After printing, the large printed web rolls are typically processed on slitter rewinder machines, where the web is slit into smaller rolls and rewound for further processing or shipment.
Lucid Imaging’s Wide Web Inspection System for slitter rewinder applications enables 100% inspection of printed wide webs during the converting stage. The system continuously monitors the printed material as it passes through the rewinder, detecting defects such as missing print, registration errors, artwork inconsistencies, and barcode defects. This ensures that only defect-free rolls proceed to packaging, distribution, or further converting operations.
Converting Stage
Reliable Inspection During Slitting Process
Inspection at the slitter rewinder stage occurs after the printing process, when printed rolls are inspected and slit into smaller rolls for downstream use.
This inspection stage is important because it allows manufacturers to:
01
Final Verification
Verify print quality after the complete printing process
02
Defect Detection
Detect defects that may have occurred during long production runs
03
Final Quality Control
Perform final quality control before packaging or shipment
Post-printing inspection during rewinding helps ensure that defective sections of the web are detected and addressed before the rolls are used in packaging or other manufacturing processes.
Inspection Scope
Comprehensive Inspection During Converting Process
The Wide Web Inspection System verifies print quality, artwork consistency, and printed data during the converting process.
Typical inspection scope includes:
Print Quality Inspection
Missing Print Detection

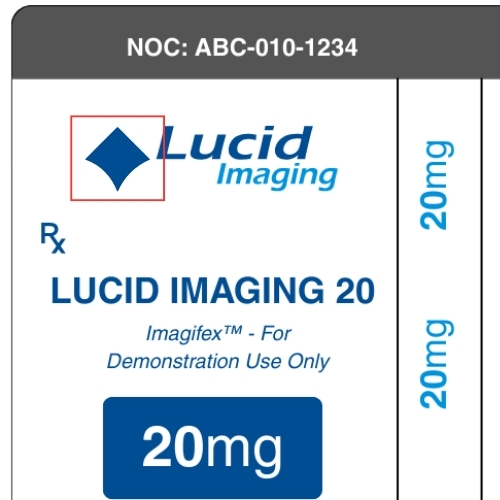

Ink Smearing or Ink Spread
Colour Deviation Detection
Print Registration Errors
Print Streaks or Banding Defects

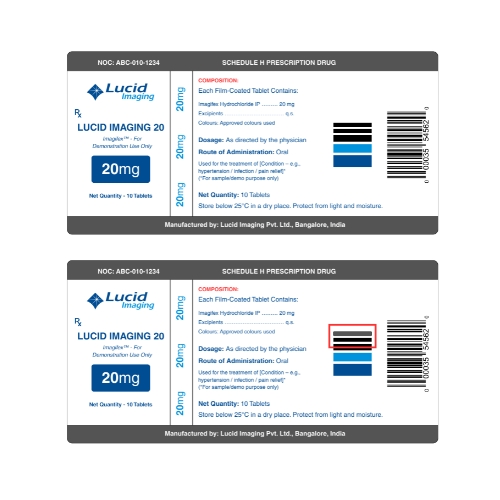

Artwork & Graphic Inspection
Logo Verification
Detection of missing design elements

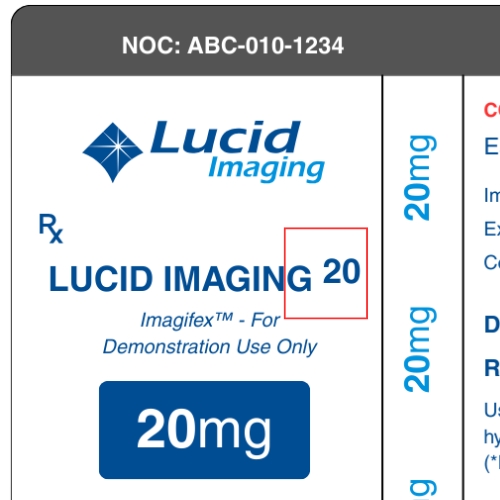

Graphic alignment verification
Print distortion detection
Code & Data Inspection

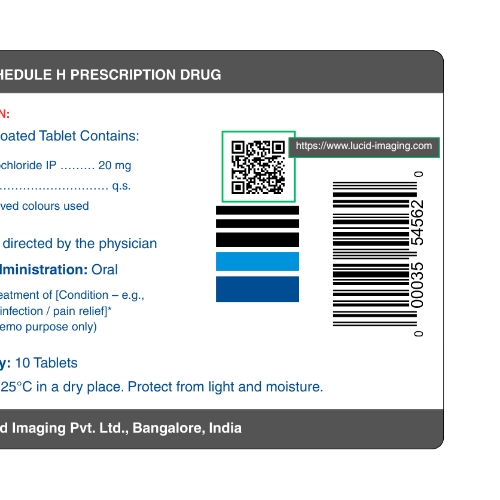

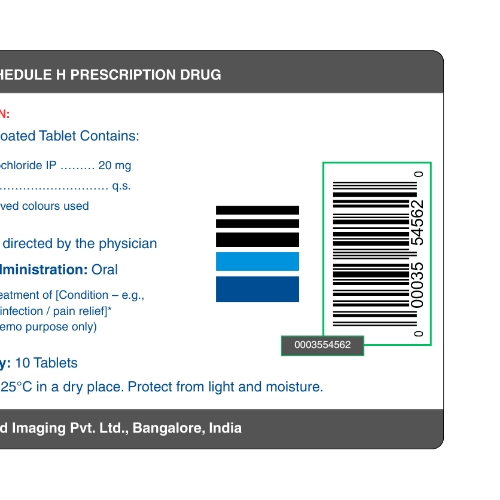

Barcode and QR code verification
OCR / OCV inspection
Serial number verification

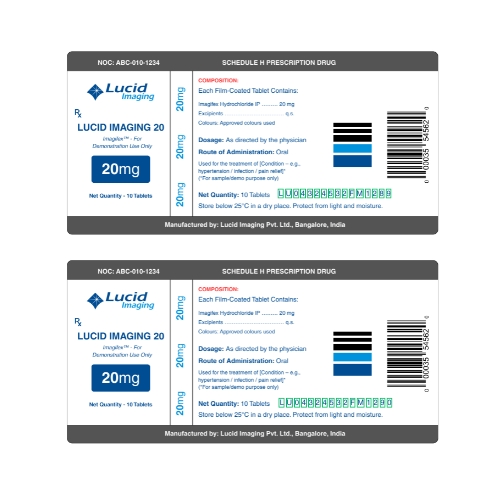

Variable data inspection where applicable
This inspection ensures that the printed material meets quality standards before it proceeds to further processing or distribution.
System Architecture
Advanced Architecture for Converting Inspection Systems
The Wide Web Inspection System for slitter rewinder applications is designed to operate reliably in high-speed roll-to-roll converting environments.
Wide Web Camera Modules
High-resolution cameras are installed along the web path to capture images of the printed material as it moves through the inspection station. The cameras inspect the web continuously across the full web width.
Precision Illumination System
Uniform lighting systems ensure consistent illumination of the web surface. Proper lighting allows the system to detect subtle printing defects, colour variations, and surface inconsistencies.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and compares them with reference artwork or templates. Any deviations from the approved print design are automatically detected.
System Processing Unit
A dedicated processing unit manages image acquisition, defect detection, and system communication. Inspection data is processed continuously to ensure accurate defect detection during high-speed rewinding operations.
Operator Monitoring Workstation
The operator interface allows production teams to monitor inspection results, review defect images, and manage inspection parameters during the rewinding process.

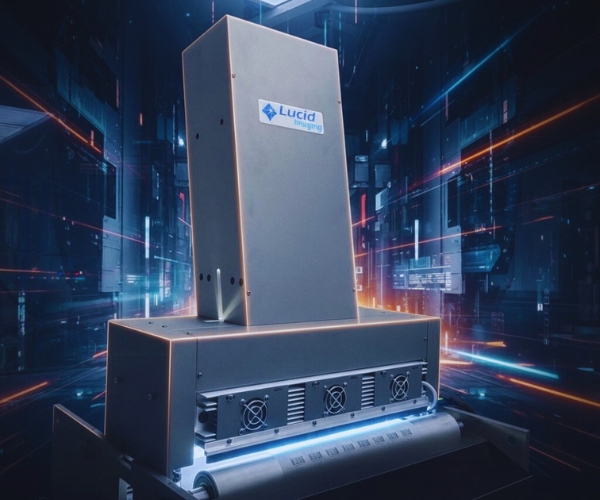

Key System Capabilities
The Wide Web Inspection System provides several capabilities designed for large roll-to-roll converting environments:
- Continuous inspection during slitting and rewinding
- Real-time defect detection and alert generation
- Automated comparison with approved artwork
- Barcode and code verification
- Variable data verification where required
- Defect image recording and reporting
- Production statistics and inspection reporting
These capabilities support high-quality converting operations while maintaining efficient production speeds.

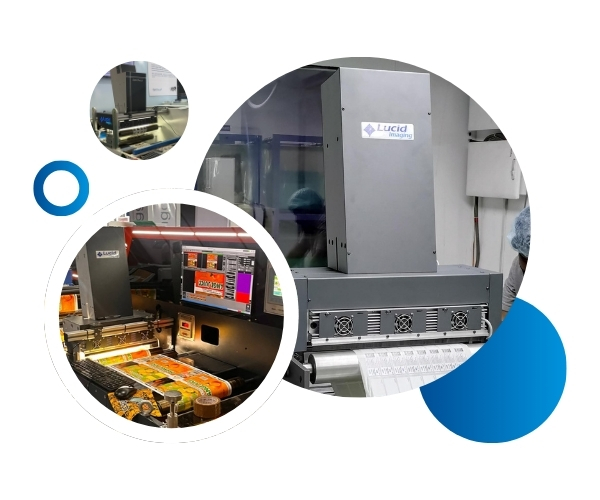

Integration with Converting Lines
The inspection system integrates with wide web slitter rewinder machines and roll-to-roll converting equipment used in flexible packaging and publication production.
Typical integration features include:
- Camera installation along the web inspection path
- Synchronization with web speed and encoder signals
- Communication with machine control systems
- Defect marking or alarm generation
This integration allows manufacturers to inspect printed rolls without disrupting converting operations.

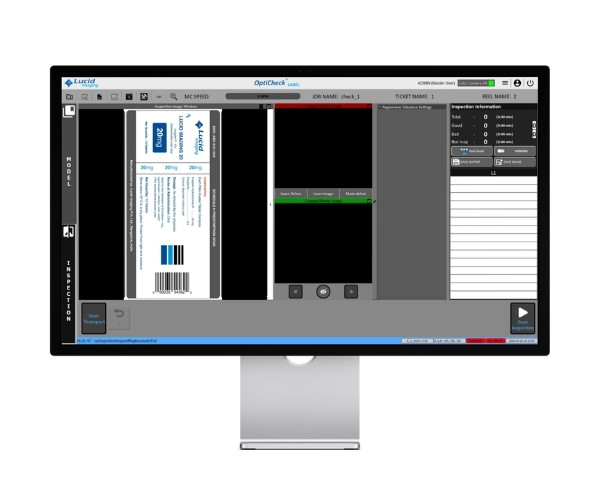

Operator Interface & Workflow
The operator interface provides real-time visibility into the inspection process and helps operators maintain consistent product quality.
Key features include:
- Real-time web inspection visualization
- Defect image display and review
- Defect classification and mapping
- Configurable inspection parameters
- Production statistics and reporting
Operators can quickly identify defect locations and take corrective actions to maintain optimal production quality.
Benefits
Improving Quality in Converting Operations
Implementing a Wide Web Inspection System for slitter rewinder applications provides several advantages for manufacturers:
01
Final quality verification before shipment
02
Detection of defects after long printing runs
03
Reduced risk of defective material reaching customers
04
Improved converting quality control
05
Enhanced traceability and production reporting
By inspecting printed webs during the rewinding process, manufacturers can ensure that only high-quality material rolls proceed to packaging, distribution, or further manufacturing stages.
