Offline Sheet Overview
Security Paper Offline Sheet Inspection System
Before security paper sheets are used in banknote printing operations, it is essential to verify that each sheet meets strict quality and security requirements. Defects in the paper surface or issues with embedded security features can directly affect the quality and authenticity of the final banknotes.
Lucid Imaging’s Security Paper Offline Sheet Inspection System provides automated inspection of individual security paper sheets in controlled inspection environments. The system analyzes scanned images of paper sheets and verifies surface quality, embedded security features, and sheet integrity. By performing detailed inspection before printing begins, manufacturers can ensure that only compliant security paper sheets proceed to banknote printing presses.
Inspection Stage
Final Verification of Paper Sheets
Offline sheet inspection is performed outside the production line, typically in dedicated inspection stations or quality control laboratories within security paper manufacturing or banknote printing facilities.
At this stage, inspection is used to:
01
Pre-Print Verification
Verify the quality of security paper sheets before printing
02
Hidden Defect Detection
Detect defects that may not have been identified during inline inspection
03
Security Feature Check
Confirm the presence and integrity of embedded security features
This inspection stage acts as a final verification step before sheets are approved for banknote printing.
Inspection Scope
Comprehensive Offline Sheet Verification
The Security Paper Offline Sheet Inspection System verifies both paper quality and embedded security elements present in each sheet.
Typical inspection scope includes:
Paper Surface Inspection

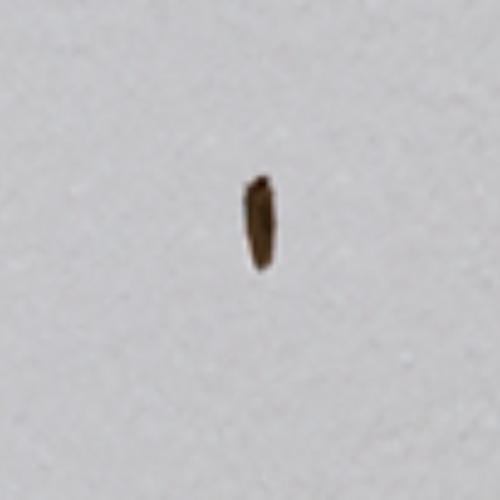

Holes or tears in the paper sheet

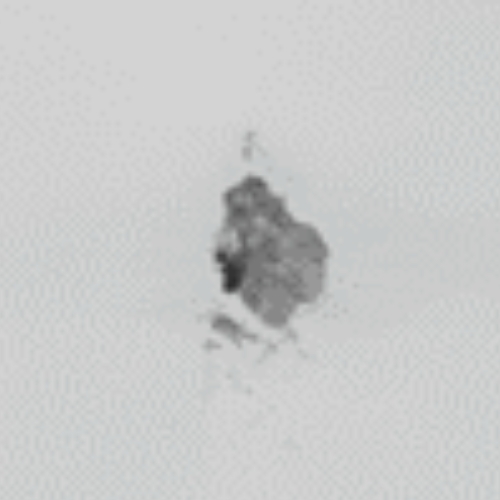

Contamination or foreign particles

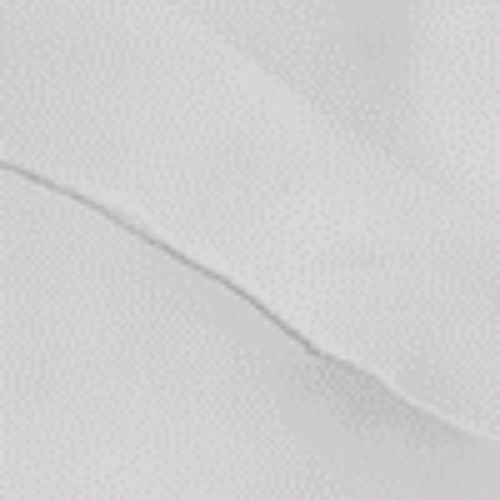

Scratches, marks, or surface damage
Coating defects or surface inconsistencies
Paper formation irregularities
Security Feature Verification

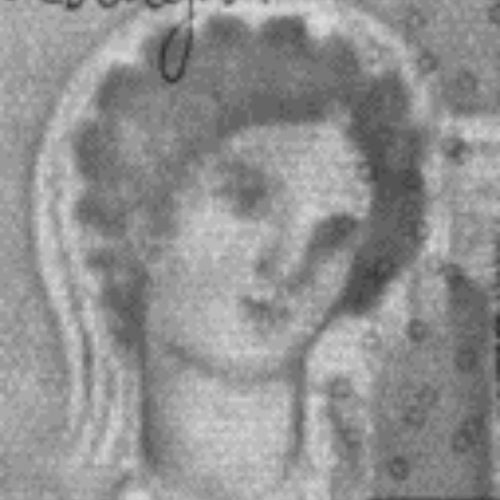

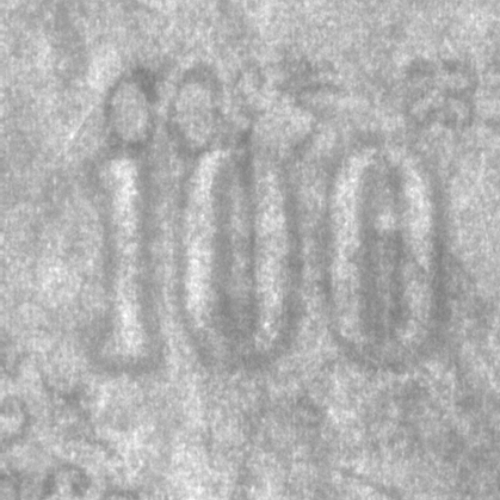

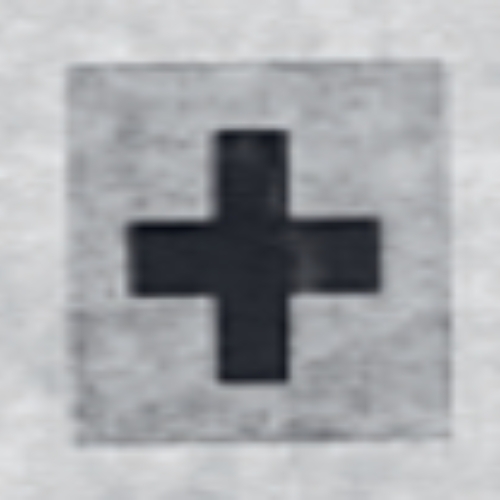

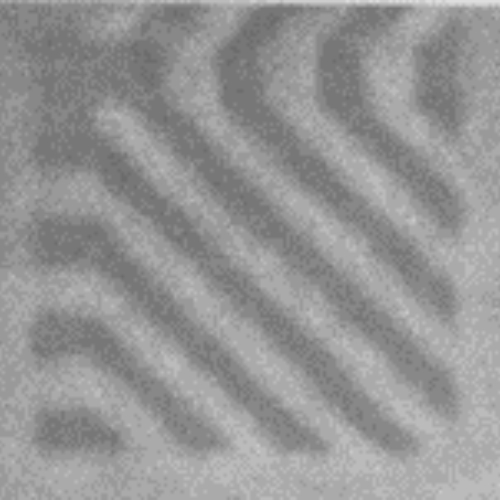

Verification of watermark regions

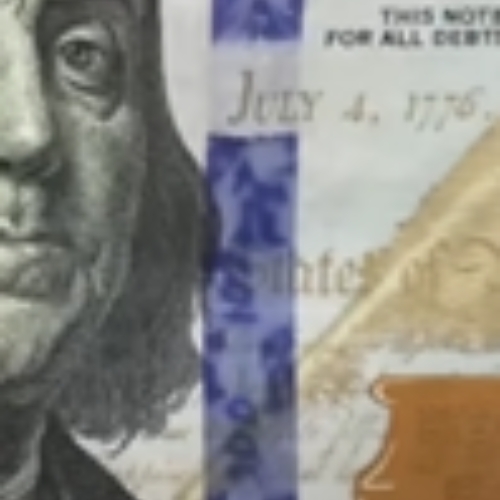

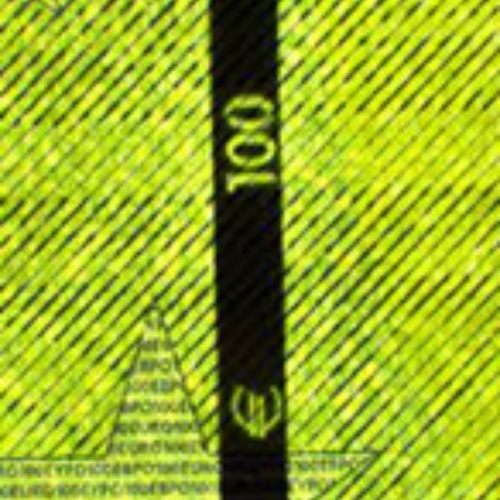

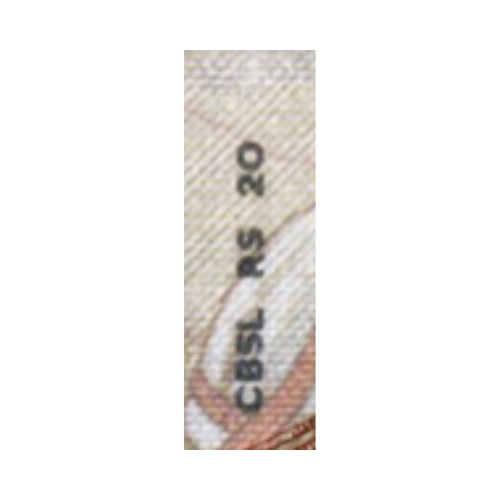

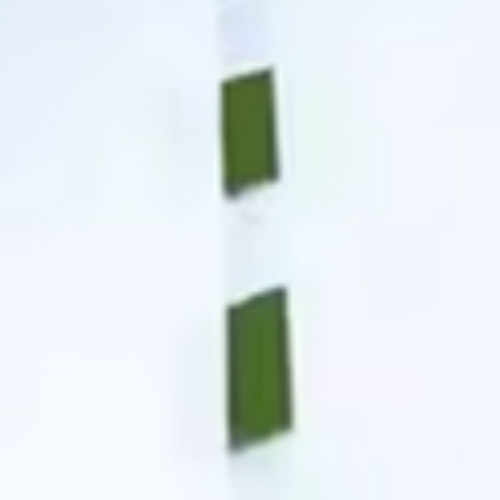

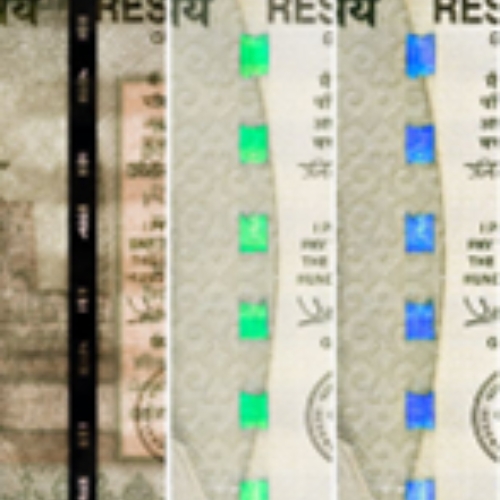

Detection of embedded security threads

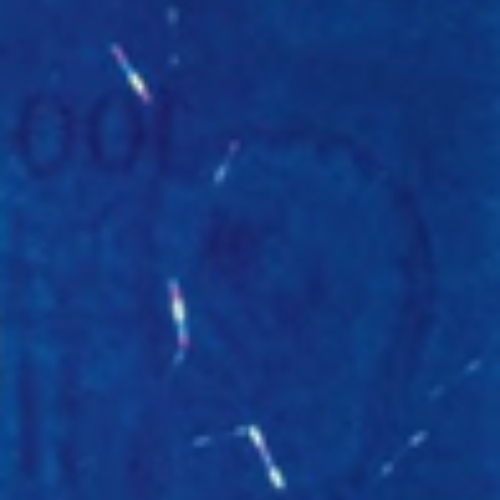

Inspection of security fibers

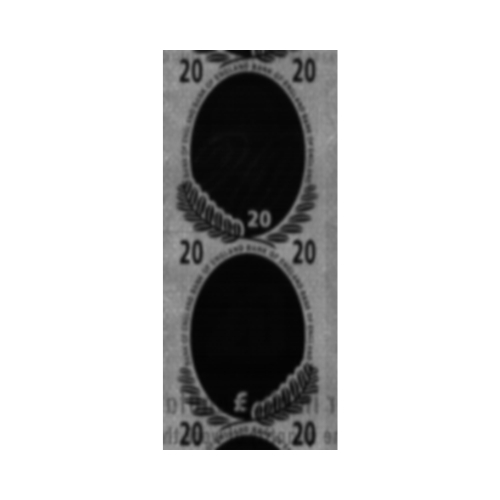

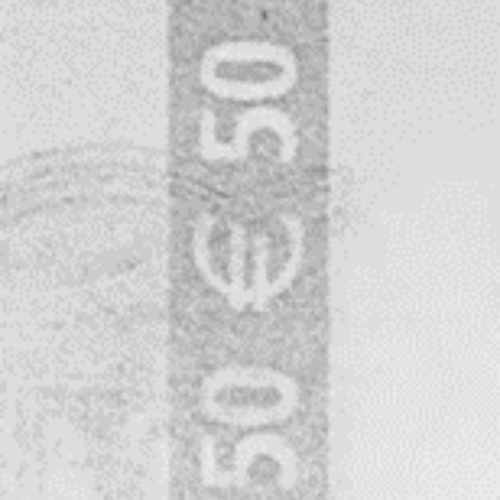

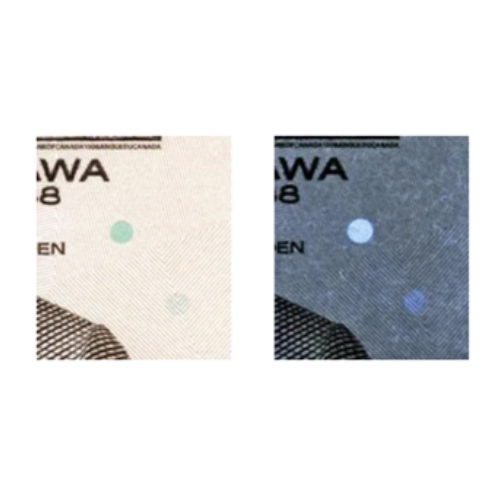

Validation of other embedded security elements
Sheet Integrity Verification
Verification of sheet dimensions and alignment
Detection of damaged sheet edges
Inspection of sheet uniformity
These inspections ensure that the sheets used for banknote printing meet the required quality and security standards.

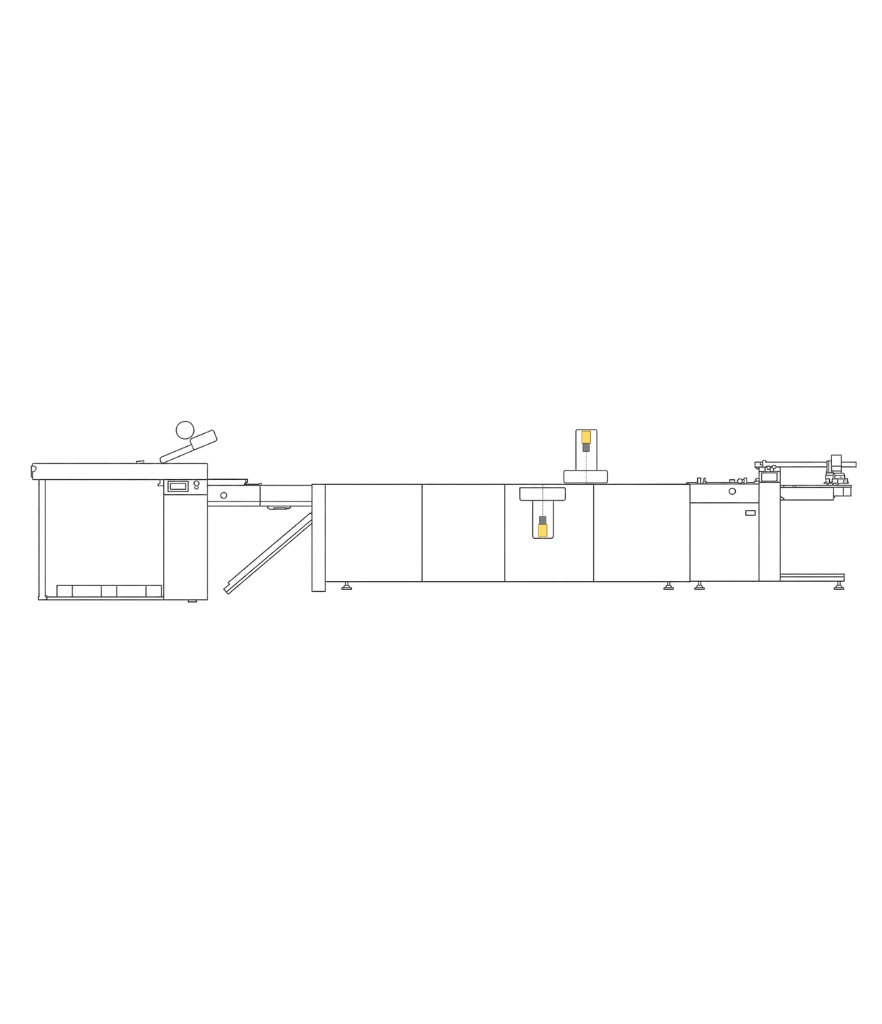

System Architecture
Components of Offline Inspection System
The Security Paper Offline Sheet Inspection System is designed for high-precision inspection of individual sheets in controlled environments.
Sheet Scanning System
Security paper sheets are captured using high-resolution scanning devices or industrial scanning systems capable of capturing fine details of the paper surface and embedded features.
Precision Illumination System
Specialized lighting ensures uniform illumination of the sheet surface, enabling accurate detection of defects and verification of security elements.
Image Processing Software
Advanced inspection software analyzes scanned sheet images and identifies defects or deviations from predefined quality criteria.
Processing and Control Unit
A dedicated processing system manages image acquisition, inspection algorithms, and defect analysis during sheet inspection.
Operator Inspection Interface
The operator interface allows quality control teams to review scanned sheet images, inspect detected defects, and manage inspection parameters.

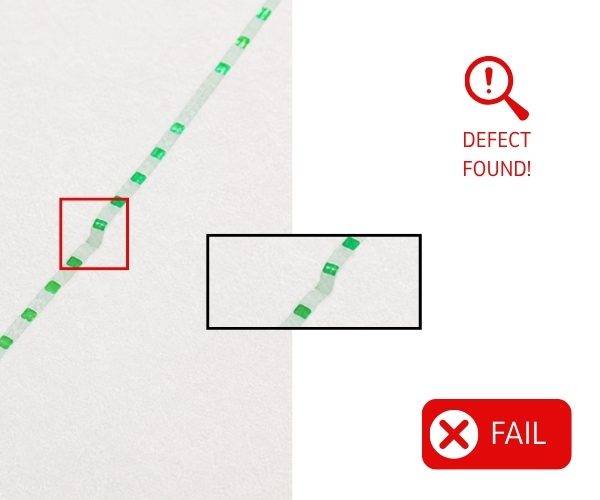

Key System Capabilities
The Security Paper Offline Sheet Inspection System provides several capabilities designed for detailed sheet verification:
- High-resolution inspection of individual security paper sheets
- Detection of surface defects and contamination
- Verification of embedded security features
- Inspection of watermark regions
- Defect image recording and reporting
- Quality control documentation and traceability
These capabilities support rigorous quality verification of security paper before printing operations begin.

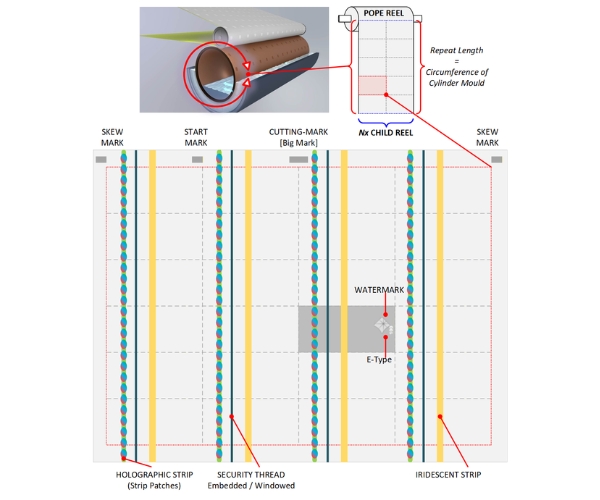

Integration with Banknote Production Workflows
The system is designed to integrate with quality control workflows used in security paper and banknote production facilities.
Typical usage scenarios include:
- Inspection of security paper sheets before banknote printing
- Verification of paper batches received from paper manufacturing facilities
- Quality control verification in security printing environments
This ensures that security paper sheets are approved for printing only after successful inspection.

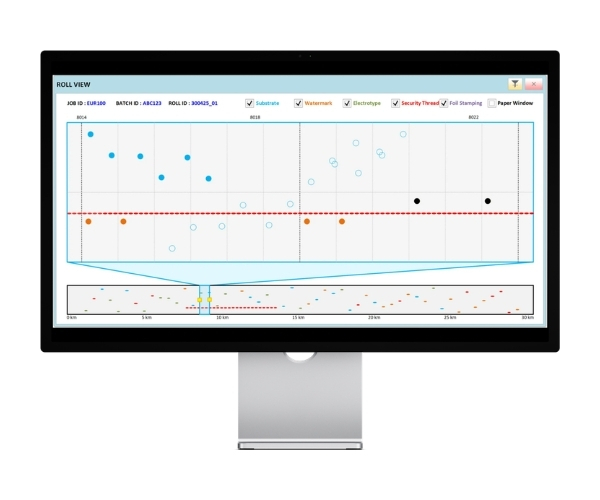

Operator Interface & Workflow
The operator interface provides tools for reviewing sheet inspection results and performing detailed quality verification.
Key features include:
- Visualization of scanned sheet images
- Defect highlighting and review
- Zoom and navigation tools for detailed inspection
- Configurable inspection parameters
- Inspection reports and documentation
Quality control teams can quickly identify defective sheets and prevent them from entering the banknote printing process.
Benefits
Advantages of Controlled Sheet Inspection
Implementing an Offline Sheet Inspection System provides several advantages for security paper and banknote production facilities:
01
High-precision inspection of individual security paper sheets
02
Improved quality control before banknote printing
03
Detection of defects not identified during inline inspection
04
Improved monitoring of security feature integrity
05
Enhanced traceability and documentation of inspection results
By verifying security paper sheets in a controlled inspection environment, manufacturers can ensure that only fully compliant sheets are used in banknote printing operations.
Get the Full Guide
Comprehensive quality checks for security paper sheets
Get the detailed PDF to discover how our offline sheet inspection system ensures accurate defect detection and quality verification before printing banknotes.
