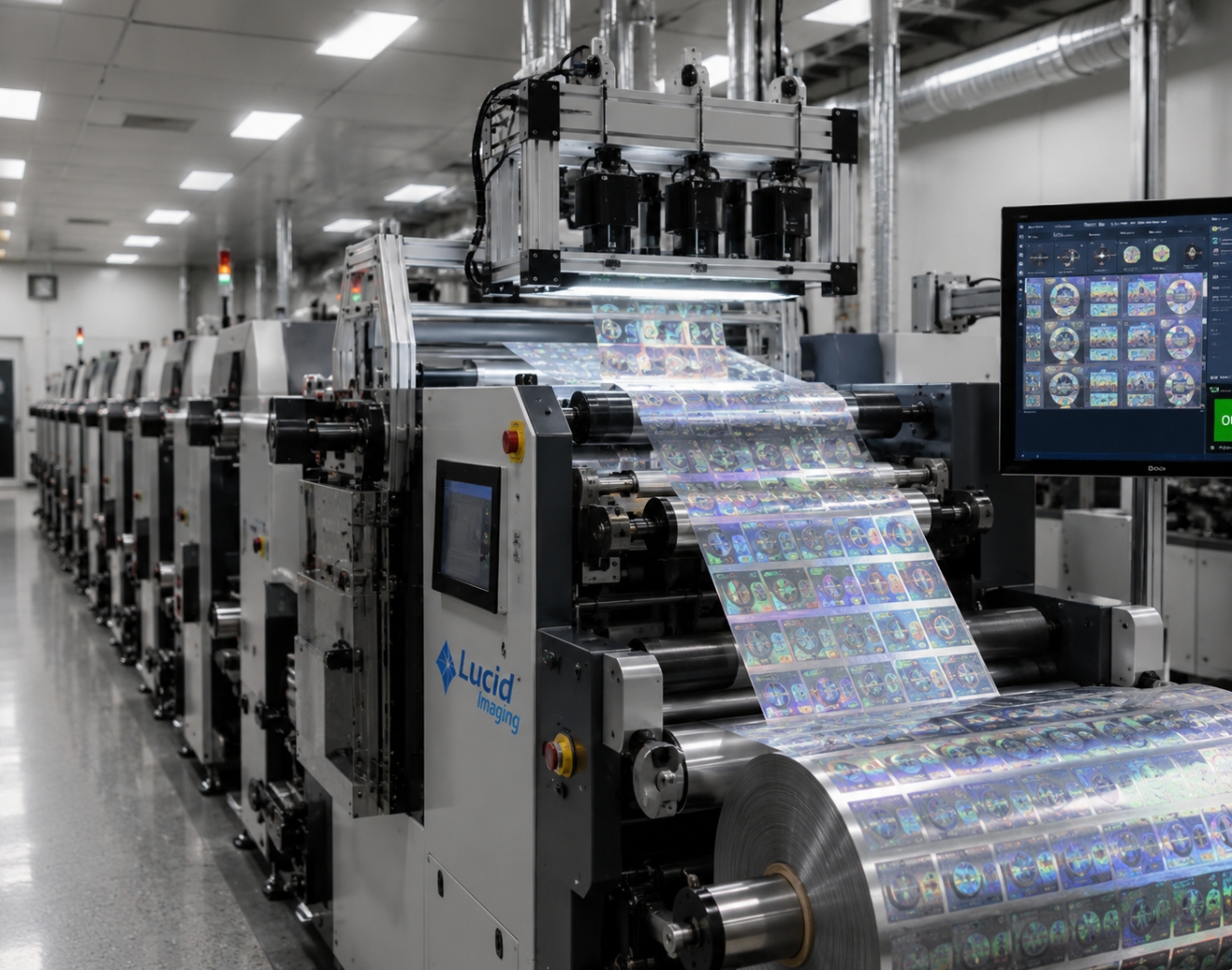

Hologram Inspection
Ensuring Authenticity and Quality of Security Holograms
Holograms are widely used as security features for product authentication, brand protection, and anti-counterfeiting applications. They are commonly found on items such as currency, passports, identity documents, pharmaceutical packaging, tax stamps, and branded consumer products.
Holographic elements contain complex optical structures that create distinctive visual effects when viewed under different lighting conditions. These security features are designed to be difficult to replicate and play a critical role in protecting products and documents against counterfeiting.
During the production and application of holograms, defects may occur due to issues in embossing, metallization, lamination, or application processes. Defects such as incomplete holographic patterns, misalignment, or surface damage can reduce the effectiveness of the security feature.
Lucid Imaging provides machine vision solutions designed for inspection of holographic security elements during production and verification processes. These systems analyze holographic features and detect defects or inconsistencies, enabling manufacturers and security printers to maintain strict quality standards.
inspection systems
Where This Inspection Is Used
Hologram inspection systems are used in security printing facilities and authentication product manufacturing environments.
Typical inspection applications include:
Inspection Applications
- Inspection of holographic labels during production
- Verification of holographic security features on documents
- Inspection of holographic elements applied to packaging
- Quality control of holographic foils and laminates
Deployment Areas
- Security hologram labels
- Holographic tax stamps
- Holographic seals for product authentication
- Holographic security features on official documents
Automated inspection helps ensure that holographic security elements meet the required quality and authentication standards.
Inspection Scope
Comprehensive Verification of Hologram Quality and Placement
The Hologram Inspection System verifies optical structure, alignment, and surface quality of holographic elements.
Typical inspection scope includes:
Holographic Pattern Verification
Verification of holographic design structures
Detection of incomplete or distorted holographic patterns
Identification of misaligned holographic features
Surface Defect Detection
Scratches or surface damage on holographic films
Contamination or foreign particles
Wrinkles or distortions in holographic materials
Application & Position Verification
Verification of hologram placement on products or documents
Detection of misapplied or missing holograms
Monitoring of alignment with printed artwork or packaging design
These inspections ensure that holographic security features remain effective for authentication and brand protection purposes.

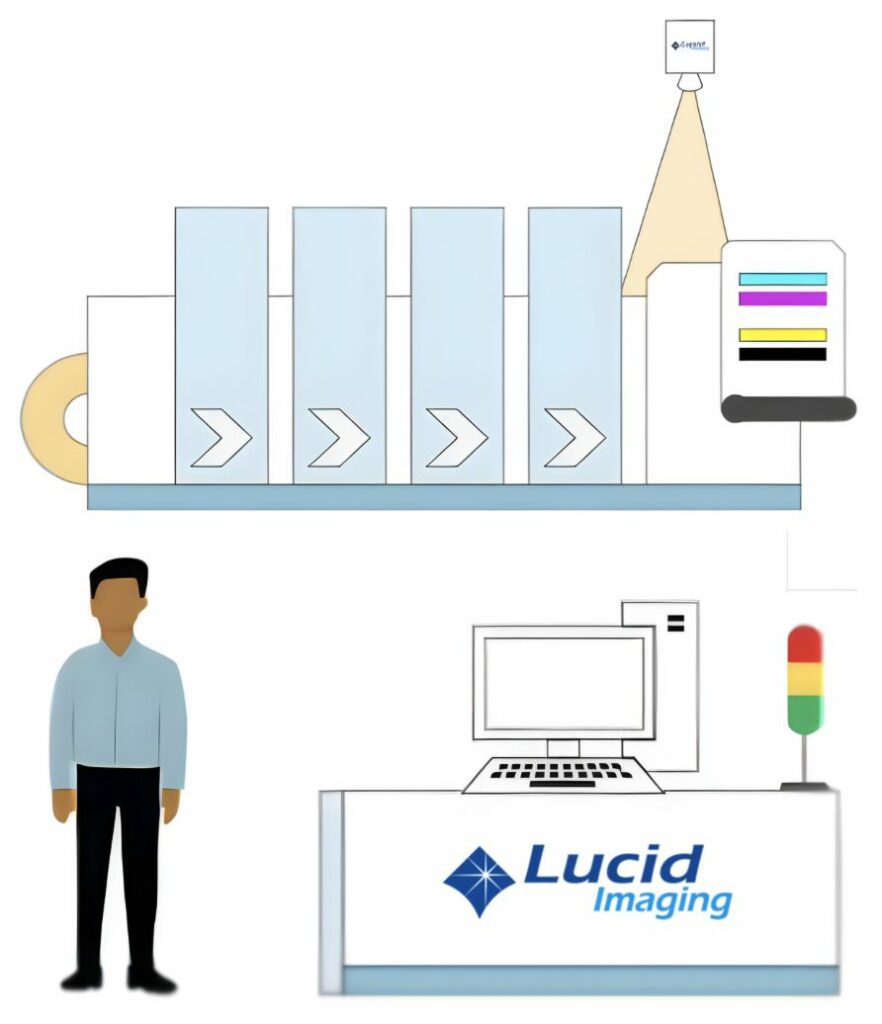

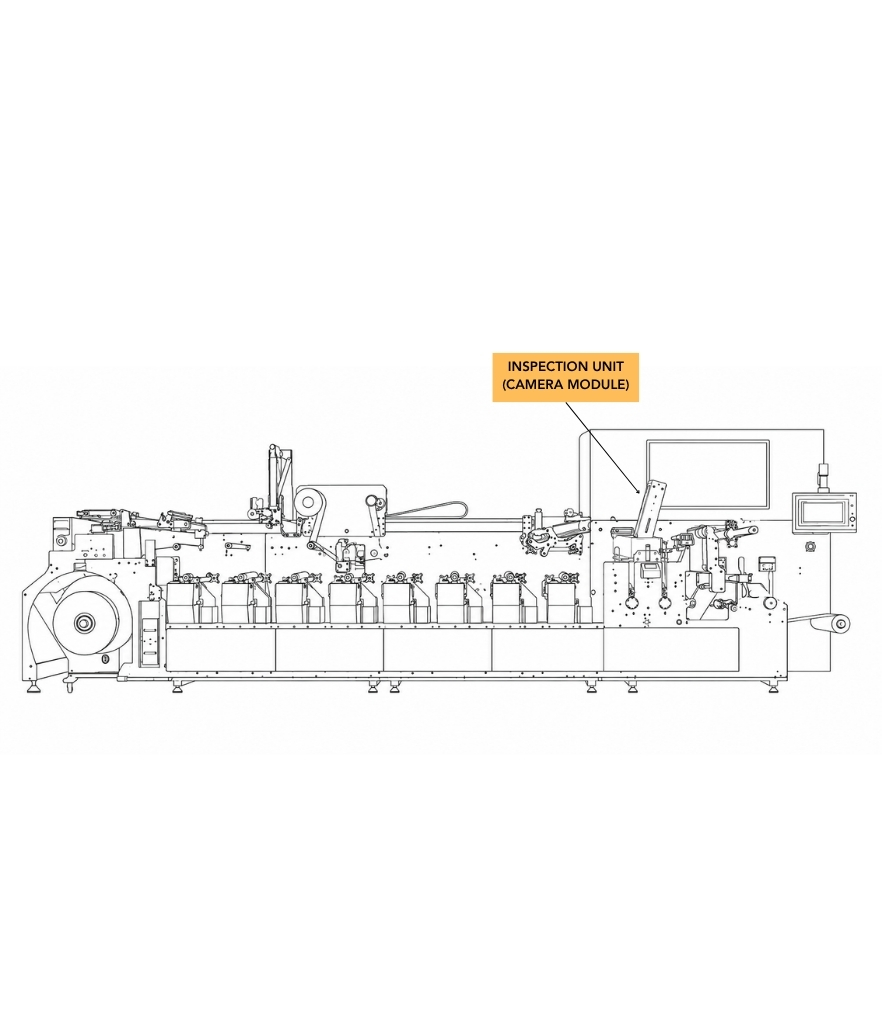

System Architecture
Advanced Imaging and Processing for Hologram Inspection
The Hologram Inspection System is designed for inspection of reflective and optically complex holographic materials.
High-Resolution Industrial Cameras
High-resolution cameras capture detailed images of holographic elements during production or verification stages.
Specialized Illumination System
Controlled illumination is used to highlight holographic structures and optical patterns that are difficult to detect using standard lighting.
Image Processing Software
Advanced vision algorithms analyze captured images to detect defects, verify holographic patterns, and confirm proper placement.
System Processing Unit
A high-performance processing system manages image acquisition, defect detection algorithms, and communication with the production line.
Operator Monitoring Interface
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.

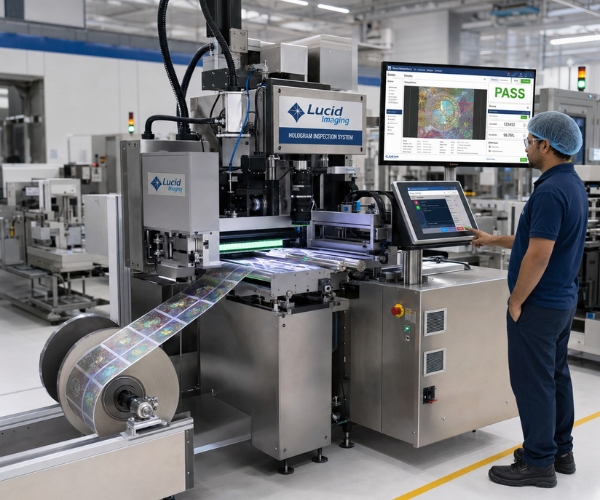

Key System Capabilities
The Hologram Inspection System provides capabilities designed for security printing and authentication environments:
- Inspection of holographic security elements
- Detection of defects in holographic patterns
- Verification of hologram placement and alignment
- Detection of surface damage or contamination
- Automated defect classification and reporting
- Real-time monitoring of hologram production quality
These capabilities help manufacturers maintain high-quality holographic security features for authentication applications.

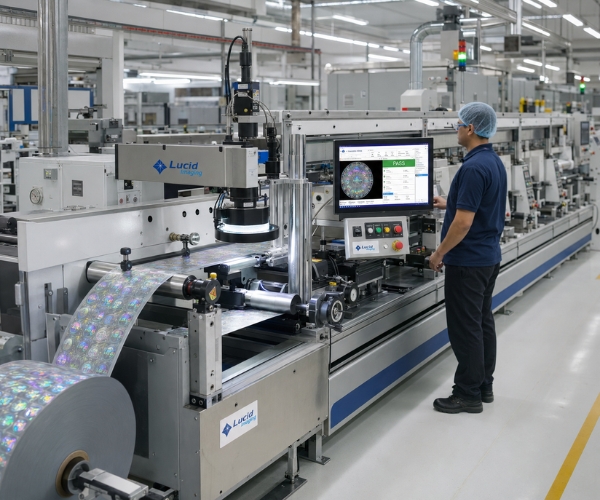

Integration with Hologram Production Lines
The inspection system integrates with hologram manufacturing and application equipment.
Typical integration features include:
- Installation of camera modules along hologram production lines
- Synchronization with label or packaging production systems
- Communication with production control systems
- Automatic rejection or marking of defective materials
This integration allows inspection to operate seamlessly within hologram manufacturing workflows.

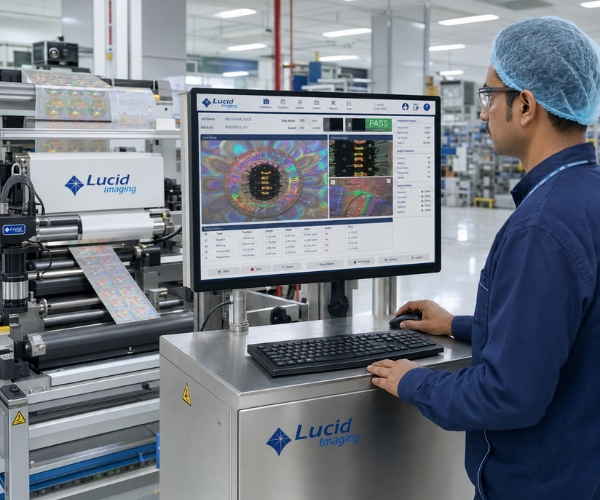

Operator Interface & Workflow
The operator interface provides tools for monitoring inspection results and maintaining authentication product quality.
Key features include:
- Real-time visualization of inspected holographic elements
- Defect image display and classification
- Configurable inspection parameters and thresholds
- Inspection reports and production statistics
Operators can quickly identify defects and maintain consistent hologram production quality.
Benefits
Enhanced Quality, Security, and Reliability of Holograms
Implementing a Hologram Inspection System provides several advantages for authentication and security printing manufacturers:
01
Improved detection of defects in holographic materials
02
Enhanced quality control of security features
03
Reduced risk of defective authentication labels reaching the market
04
Improved consistency in hologram production
05
Enhanced protection against counterfeiting risks
By verifying holographic security elements during production, manufacturers can ensure that authentication features remain reliable and effective for brand protection and security applications.
