Non-Woven Surface Inspection
Non-woven materials are widely used in industries such as medical products, hygiene products, filtration media, automotive interiors, and industrial textiles. These materials are produced through processes such as spunbond, meltblown, needle-punching, or hydroentanglement, where fibers are bonded together to create continuous sheets or webs.
Because non-woven materials are often used in critical applications such as medical masks, hygiene products, and filtration systems, maintaining consistent material quality is essential. Defects such as holes, thin spots, fiber clumps, contamination, or uneven fiber distribution can affect the performance and reliability of the final product.

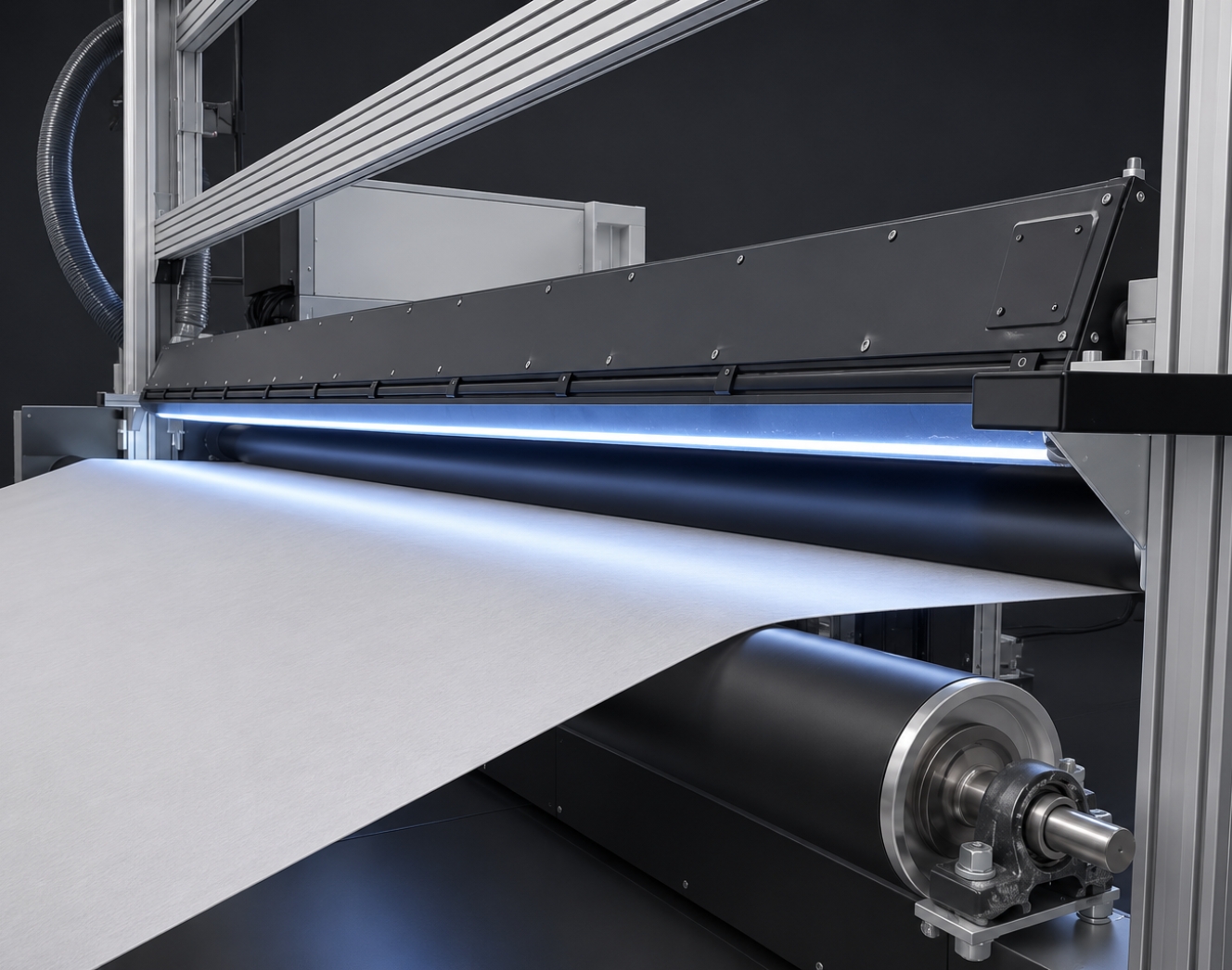

Lucid Imaging provides machine vision solutions designed for surface inspection of non-woven materials during manufacturing processes. These systems continuously monitor the moving web and detect surface defects in real time, enabling manufacturers to maintain consistent product quality and process stability.
inspection systems
Where This Inspection Is Used
Non-woven surface inspection systems are used in non-woven manufacturing lines where fiber webs are produced and processed at high speeds.
Typical inspection applications include:
Inspection Applications
- Inspection of non-woven web surfaces during production
- Detection of holes, thin spots, or fiber accumulation
- Identification of contamination or foreign particles
- Monitoring of fiber distribution and surface consistency
Deployment Areas
- Medical and hygiene products (masks, wipes, diapers)
- Filtration media
- Automotive interior materials
- Industrial textile products
Automated inspection allows manufacturers to detect defects early and maintain consistent quality across high-volume production lines.
Inspection Scope
Maintaining High Standards in Non-Woven Manufacturing
The Non-woven Surface Inspection System verifies surface quality, fiber distribution, and structural consistency of the material.
Typical inspection scope includes:
Surface Defect Detection
Holes or tears in the material
Thin spots or uneven fiber distribution
Fiber clumps or agglomerations
Wrinkles or folds in the web
Contamination Detection
Dirt, dust, or foreign particles
Embedded contaminants within the fiber structure
Process-related contamination
Material Consistency Monitoring
Verification of fiber distribution across the web
Monitoring of web uniformity
Detection of process-related variations in material structure
These inspections ensure that non-woven materials meet required quality and performance standards for downstream applications.

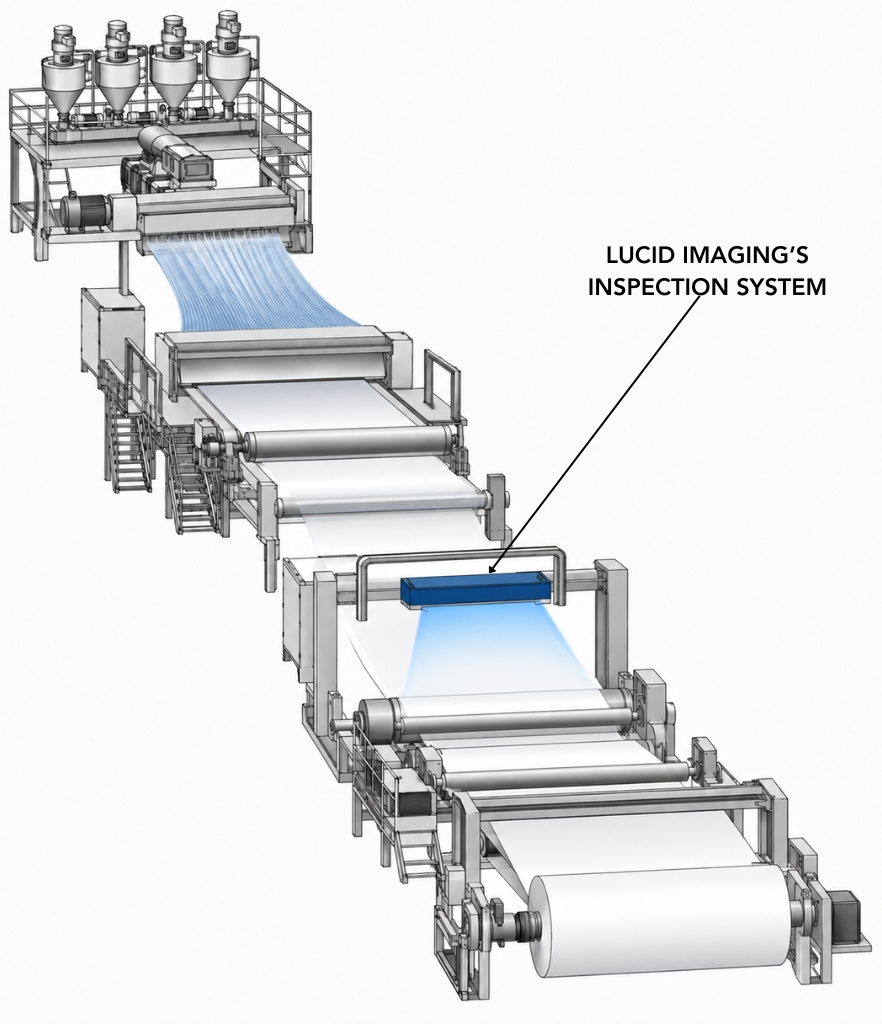

System Architecture
Integrated Architecture for Real-Time Defect Detection
The Non-woven Surface Inspection System is designed for continuous inspection of high-speed non-woven production lines.
Line-Scan Camera Modules
High-resolution line-scan cameras capture detailed images of the moving non-woven web across its full width.
Precision Illumination System
Specialized lighting systems are used to highlight fiber structures and surface variations, enabling reliable detection of defects.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and detects surface defects based on defined detection criteria.
System Processing Unit
A high-performance processing system manages image acquisition, defect detection algorithms, and communication with the production line.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.

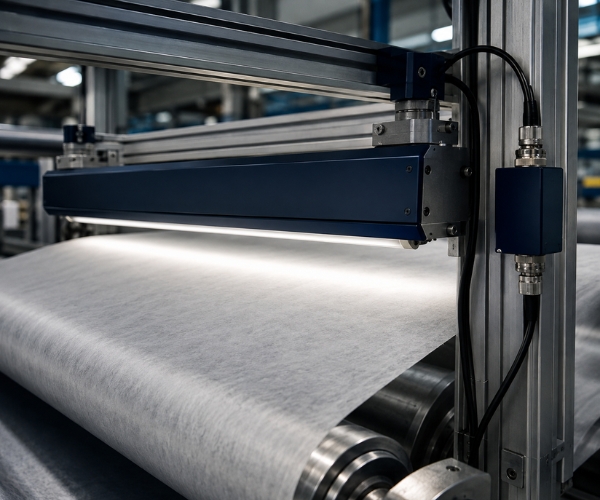

Key System Capabilities
The Non-woven Surface Inspection System provides capabilities designed for high-speed web inspection:
- Continuous inspection of non-woven materials during production
- Detection of holes, thin spots, and fiber irregularities
- Identification of contamination and foreign particles
- Monitoring of fiber distribution and material uniformity
- Automated defect classification and reporting
- Statistical monitoring of production quality
These capabilities help manufacturers maintain consistent material quality and stable production conditions.
Integration with Non-woven Production Lines
The inspection system integrates with non-woven manufacturing equipment used in fiber web production.
Typical integration features include:
- Installation of camera modules across the web width
- Synchronization with web speed and production line encoders
- Communication with production control systems
- Real-time alerts when defects are detected
This integration allows inspection to operate seamlessly alongside the manufacturing process without affecting production speed.

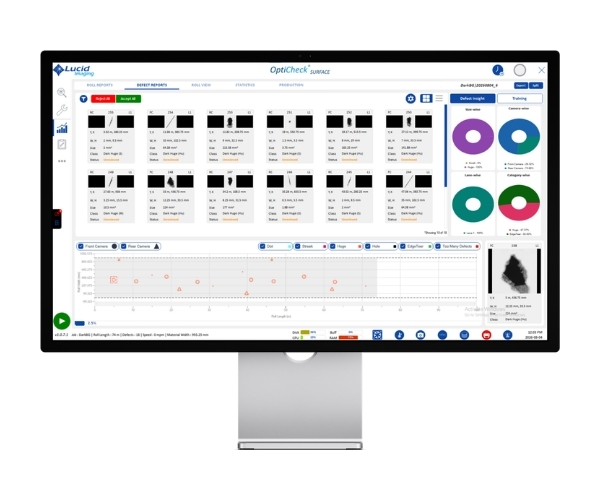

Operator Interface & Workflow
The operator interface provides tools for monitoring inspection results and managing material quality.
Key features include:
- Real-time visualization of inspected web areas
- Defect image display and classification
- Configurable inspection parameters and thresholds
- Defect mapping across the web width
- Production statistics and inspection reports
Operators can quickly identify process issues and adjust production parameters to maintain stable material quality.
Benefits
Key Advantages of Automated Non-Woven Inspection
Implementing a Non-woven Surface Inspection System provides several advantages for manufacturers:
01
Early detection of defects during production
02
Improved monitoring of fiber distribution and material uniformity
03
Reduced production waste and quality losses
04
Improved consistency of non-woven products
05
Enhanced process control in non-woven manufacturing
By inspecting the material surface continuously during production, manufacturers can ensure that only high-quality non-woven materials proceed to downstream processing and final product manufacturing.
