Document & Publication Inspection System
Document and publication printing involves the high-speed production of materials such as books, magazines, newspapers, catalogs, and commercial print publications. These printing processes typically run on wide web offset presses where maintaining consistent print quality across long production runs is critical.
Lucid Imaging’s Document & Publication Inspection System enables continuous inspection of printed webs during high-speed publication printing. The system monitors the printed material in real time and detects defects such as missing text, registration errors, print distortions, and artwork inconsistencies. By identifying defects early in the printing process, the system helps publishers and printing companies maintain consistent print quality while minimizing waste and production disruptions.
Printing Stage
Real-Time Inspection for Publication Printing

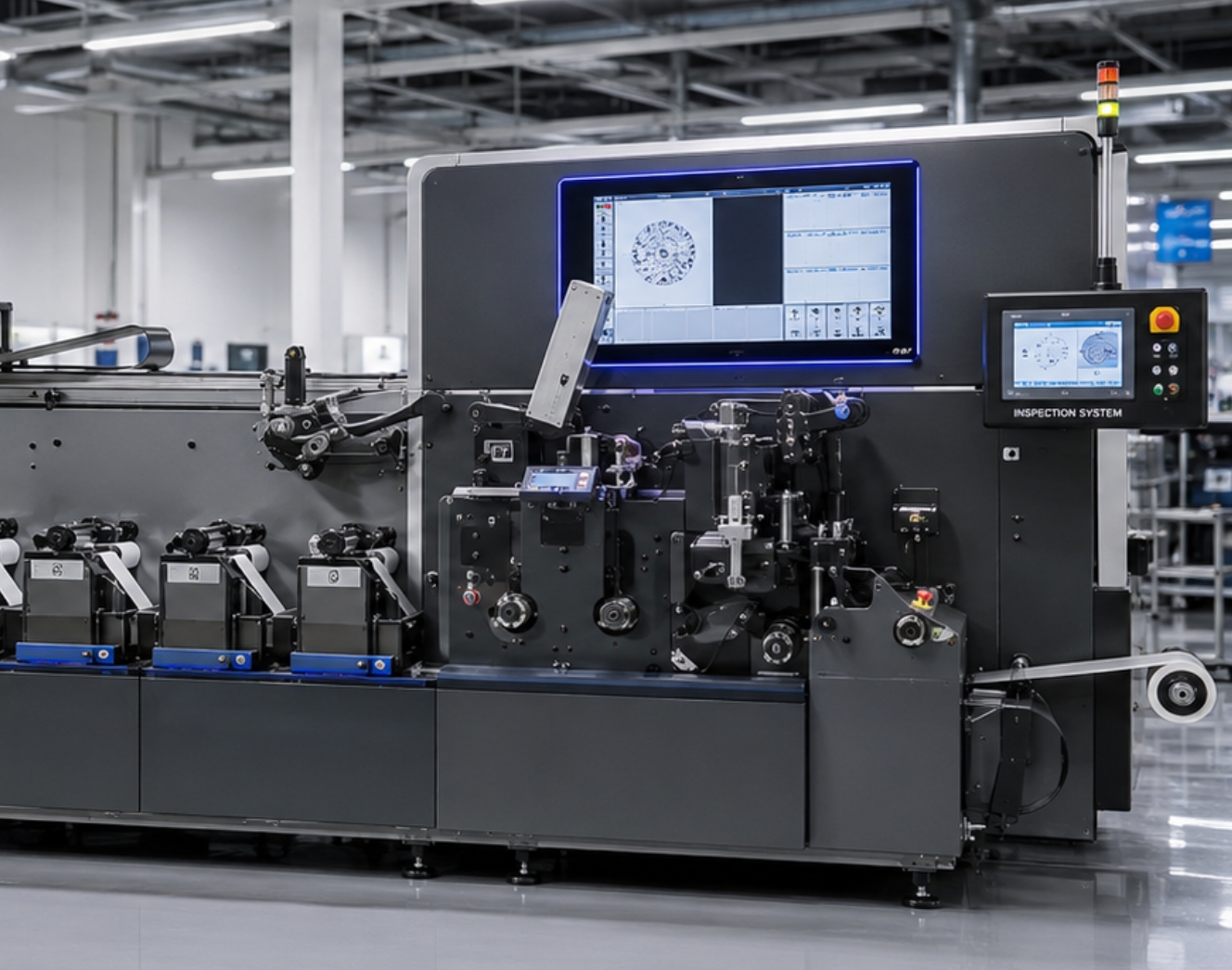

Inspection is performed inline on wide web printing presses used for publication and commercial printing. The system captures images of the printed web as it passes through the press, allowing continuous monitoring of print quality during production.
Inline inspection during publication printing allows operators to:
01
Continuous Monitoring
Detect defects during long production runs
02
Print Consistency
Maintain consistent print quality across thousands of copies
03
Issue Identification
Identify issues with plates, ink flow, or press alignment
This inspection stage is particularly valuable for newspaper and magazine printing, where production speeds are extremely high, and errors must be detected immediately.
Inspection Scope
Comprehensive Inspection for Publication Printing
The Document & Publication Inspection System verifies both print quality and content consistency across the printed web.
Typical inspection scope includes:
Print Quality Inspection
Missing Print Detection

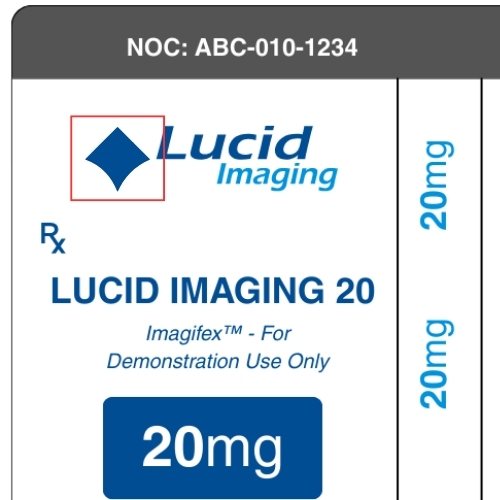

Ink Smearing or Ink Spread
Print density variations
Print Streaks or Banding Defects
Print Registration Errors
Content & Layout Verification
Missing text detection
Graphic and image verification
Page layout consistency
Detection of printing distortions
Code & Identification Inspection

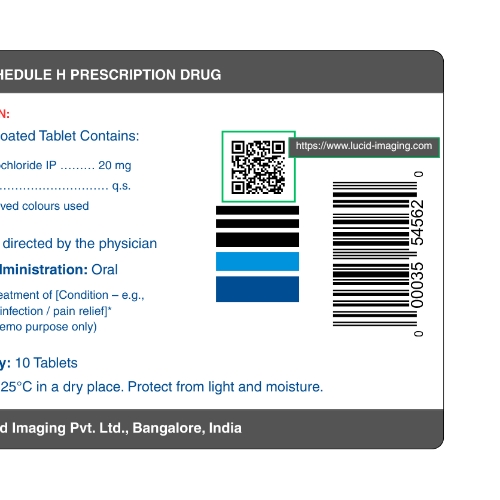

Barcode verification where applicable

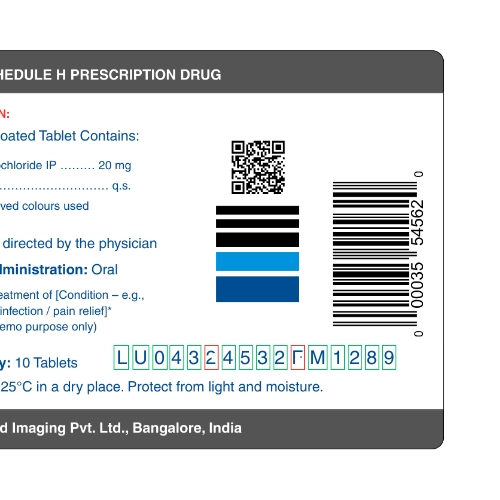

Text verification using OCR / OCV

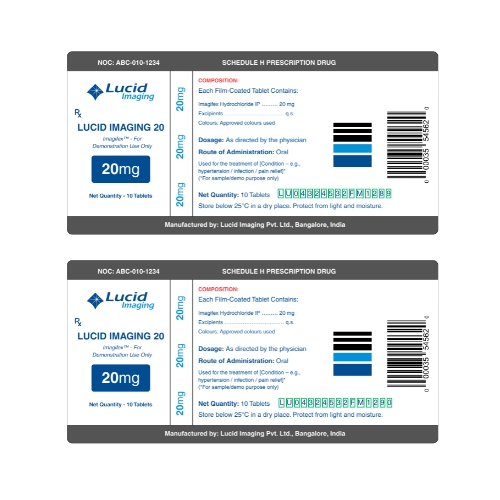

Verification of printed identification codes
This inspection ensures that each printed page maintains consistent visual quality and content accuracy.
System Architecture
Advanced Architecture for Publication Inspection
The Document & Publication Inspection System is designed for high-speed web offset printing environments, where inspection must be reliable even at extremely high press speeds.
High-Resolution Camera Modules
Industrial cameras capture detailed images of the printed web as it moves through the press. These cameras are capable of detecting fine text and graphic details while operating at high production speeds.
Precision Illumination System
Uniform lighting ensures consistent illumination across the web width. Proper lighting enables accurate detection of print defects, density variations, and alignment issues.
Real-Time Image Processing
Advanced inspection software processes captured images in real time and compares them with approved reference images. Deviations from the reference artwork are automatically detected and flagged.
System Processing Unit
A dedicated processing unit manages image acquisition, inspection algorithms, and communication with the printing press control system.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and manage inspection parameters during the printing process.

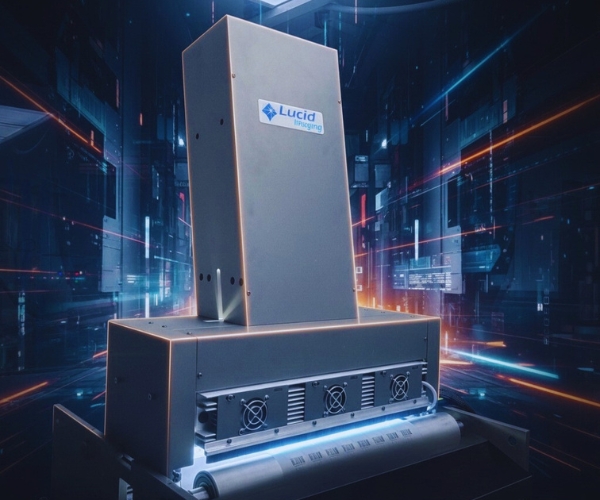

Key System Capabilities
The inspection system provides capabilities specifically suited for publication printing environments:
- Continuous inspection during high-speed web printing
- Real-time detection of print defects and layout errors
- Automated comparison with reference pages or artwork
- Verification of text, graphics, and page layout
- Defect image recording and reporting
- Production quality monitoring and statistical analysis
These capabilities help printing companies maintain consistent quality across long publication runs.

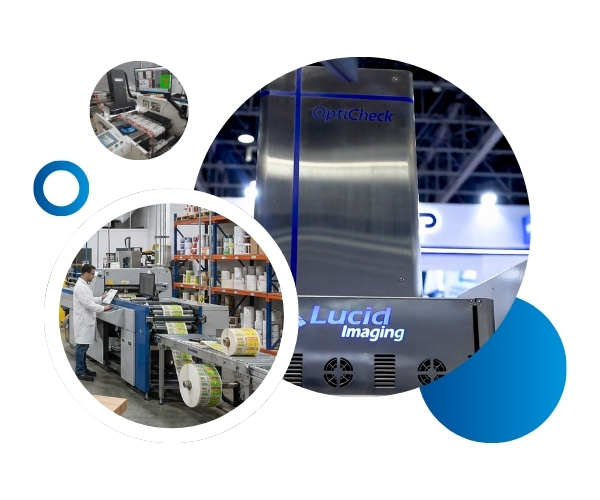

Integration with Printing Lines
The inspection system integrates directly with wide web printing presses used for document and publication printing.
Typical integration features include:

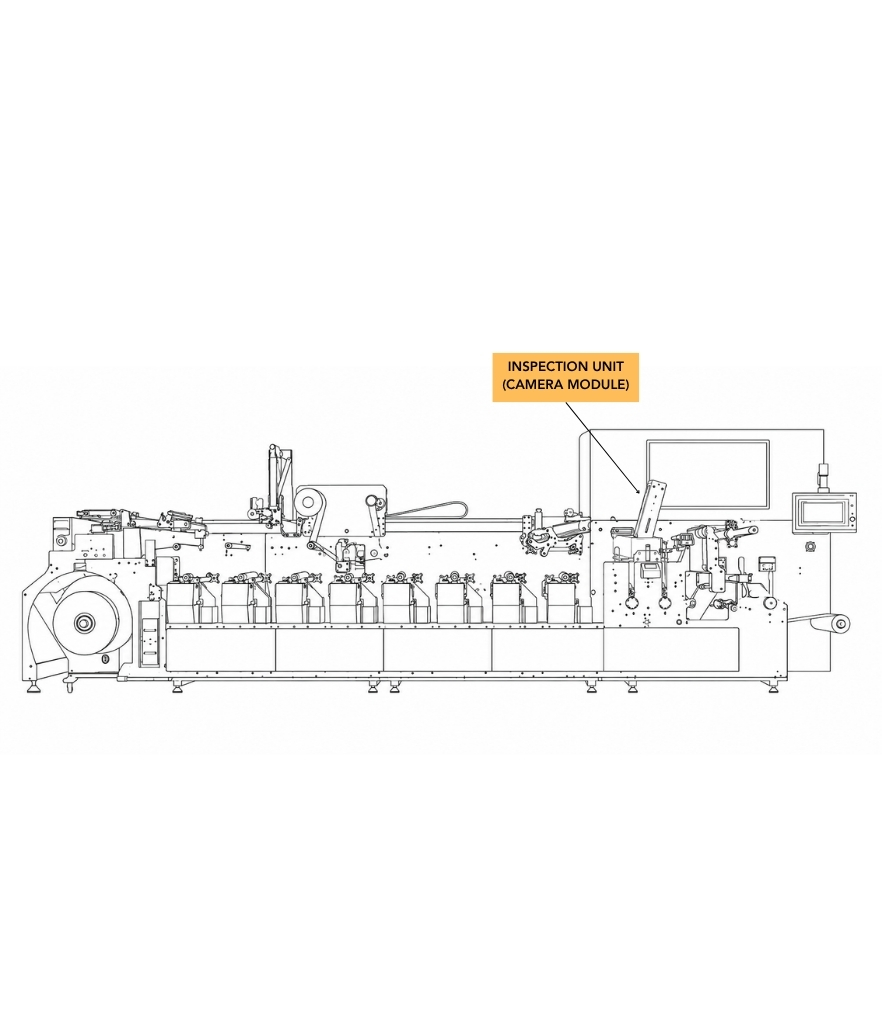

- Camera installation along the printed web path
- Synchronization with press speed and encoder signals
- Communication with press control systems
- Automated alerts when defects are detected
This integration allows the inspection system to operate continuously during production without interrupting press performance.

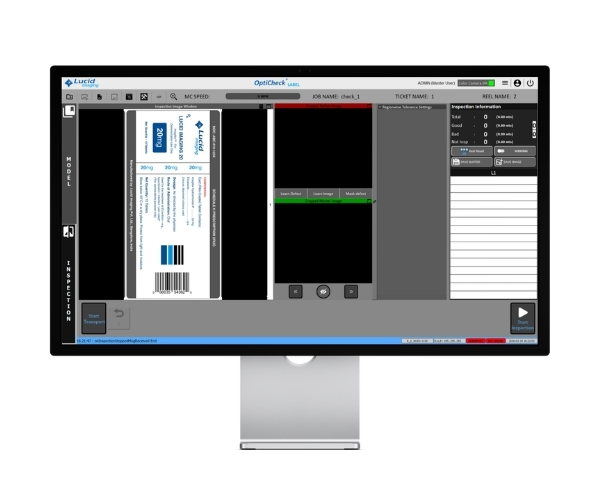

Operator Interface & Workflow
The operator interface provides a clear view of inspection results and allows production teams to manage the inspection process efficiently.
Key features include:
- Real-time visualization of inspected pages
- Defect image review and classification
- Inspection parameter configuration
- Production statistics and reporting
- Operator alerts and notifications
This workflow enables operators to quickly identify printing issues and maintain stable production quality.
Benefits
Improving Quality in Publication Printing
Implementing a Document & Publication Inspection System provides several benefits for commercial printing and publication production:
01
Early detection of printing defects
02
Improved consistency across long production runs
03
Reduced waste and reprints
04
Enhanced production efficiency
05
Improved quality control for publication printing
By continuously monitoring the printed web, the system ensures that books, magazines, newspapers, and other publications maintain consistent print quality throughout production.
