Banknote Numbering Inspection System - OEM Integration
The serial numbering stage is a critical part of banknote production where unique identification numbers are printed on each banknote sheet using specialized numbering presses. These serial numbers enable traceability of every banknote produced and play an important role in production control and security verification.
Lucid Imaging’s Banknote Numbering Inspection System – OEM Integration enables automated verification of serial numbers printed during the numbering process. Integrated directly into the numbering press architecture, the system performs real-time inspection of printed sheets and verifies that serial numbers are correctly printed, properly aligned, and follow the required numbering sequence. By detecting numbering errors immediately during production, the system helps ensure that only correctly numbered banknote sheets proceed to the next stages of the production workflow.
Printing Stage
Monitoring Numbering Quality and Sequence
Inspection is performed during the letterpress numbering process, where serial numbers are applied to banknote sheets after the main printing stages such as offset and intaglio printing.
At this stage, the inspection system captures images of the printed serial numbers on each sheet and verifies their correctness.
Inline inspection during numbering enables production teams to:
01
Number Verification
Verify that serial numbers are printed clearly and accurately
02
Sequence Validation
Confirm that numbering sequences follow the required order
03
Number Defect Detection
Detect numbering defects such as missing or misprinted digits
04
Processing Control
Prevent incorrectly numbered sheets from proceeding to further processing
This stage is essential for maintaining traceability and integrity in banknote production.
Inspection Scope
Serial Number Accuracy and Verification
The Banknote Numbering Inspection System verifies serial number accuracy, sequence integrity, and print quality.
Typical inspection scope includes:
Serial Number Verification

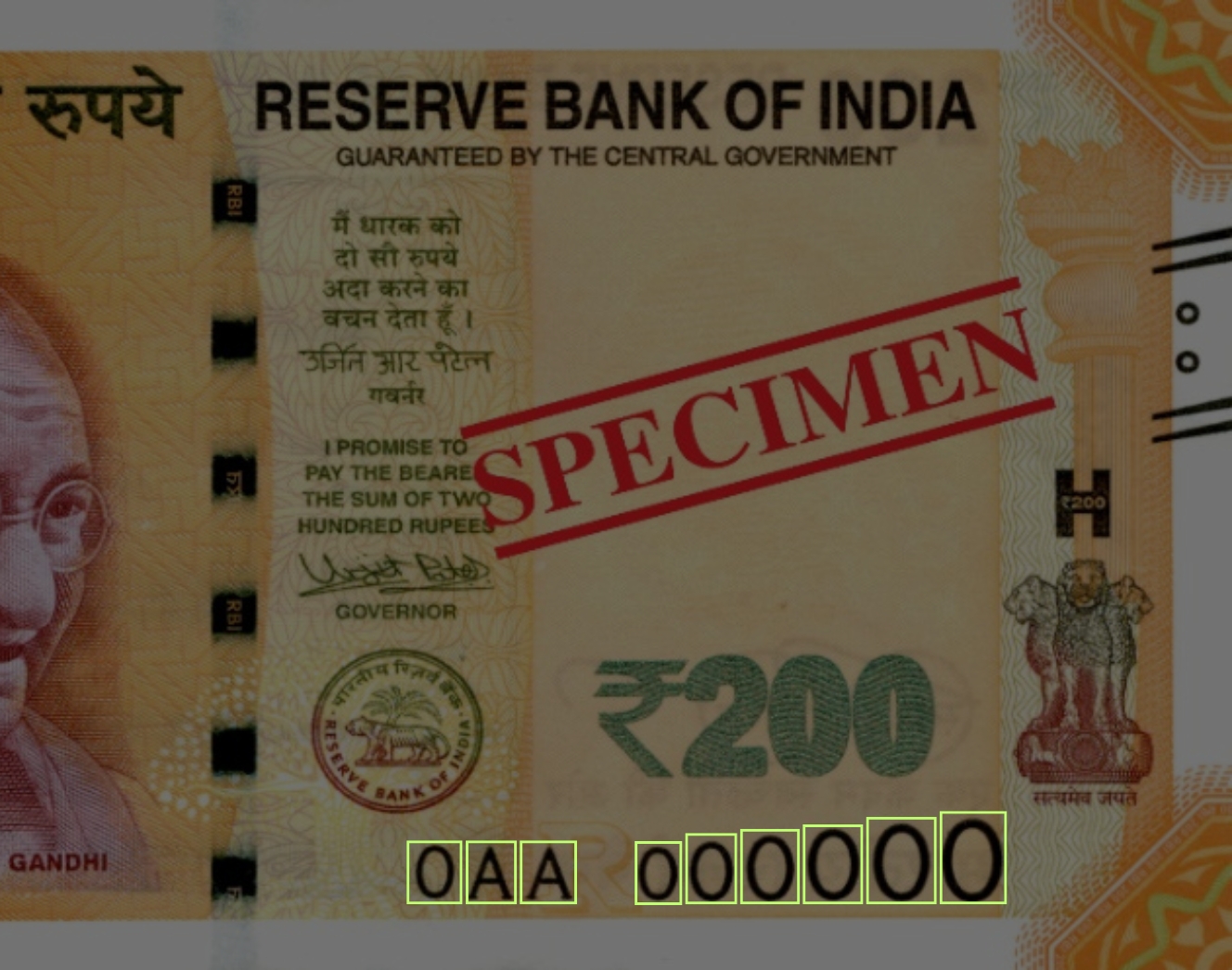

OCR / OCV verification of printed serial numbers
Detection of missing digits
Detection of incorrect or unreadable characters
Verification of number formatting

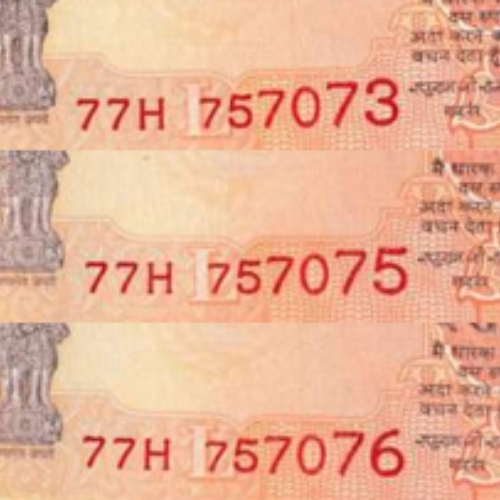

Numbering Sequence Verification
Validation of serial number sequence progression

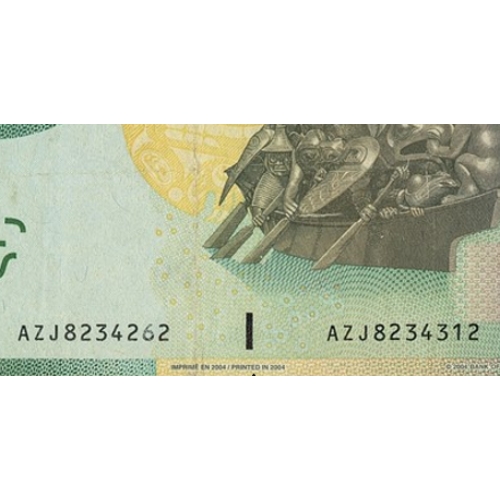

Detection of duplicate numbers
Detection of skipped numbers
Monitoring of numbering consistency across sheets
Print Quality Inspection
Missing print detection in numbering fields

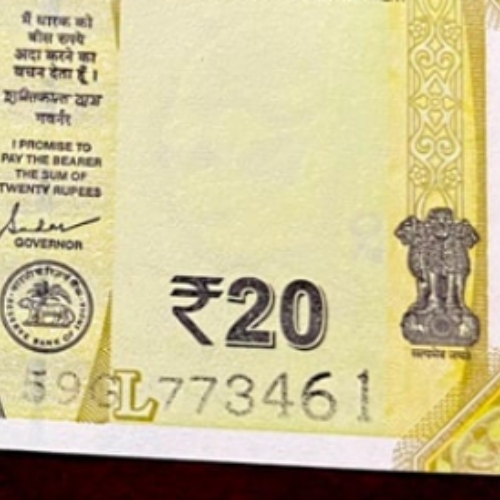

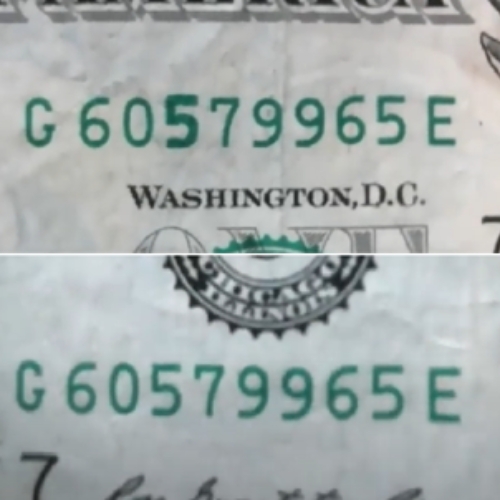

Ink density variations in printed numbers

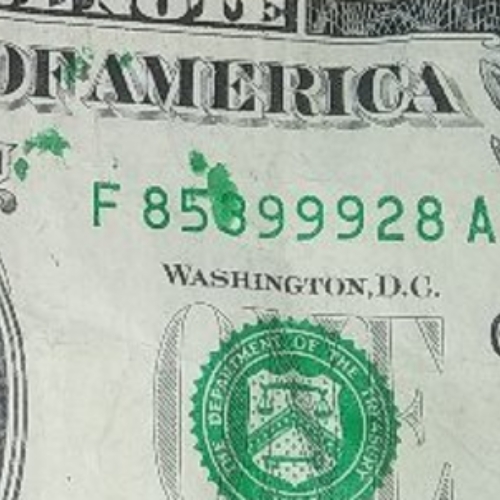

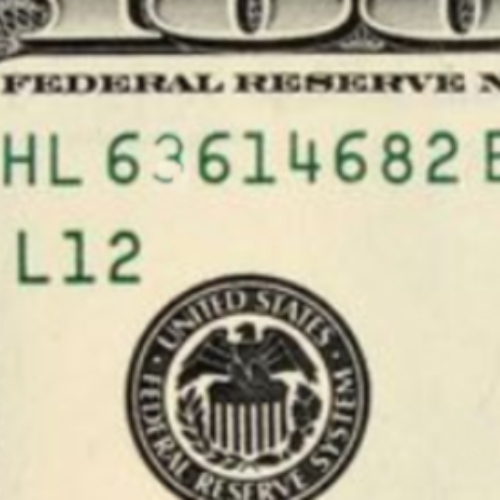

Detection of smudged or distorted digits

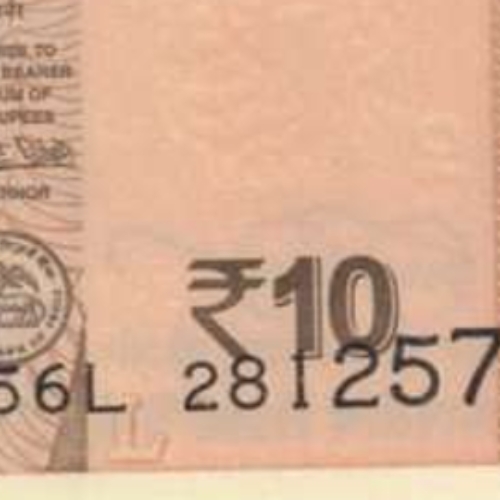

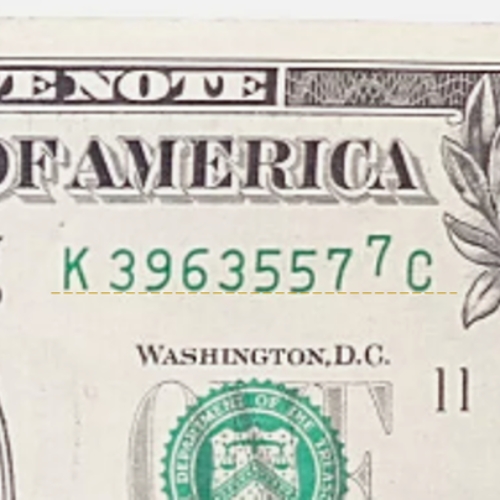

Alignment verification of numbering positions
These inspections ensure that serial numbers printed on banknote sheets meet the strict traceability and security requirements of currency production.
System Architecture

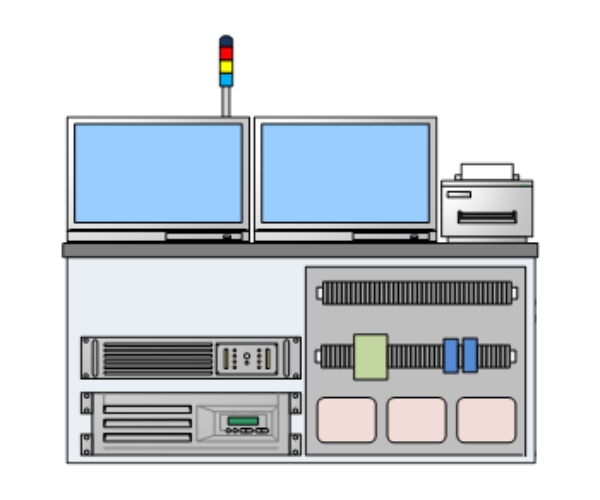

Components of Numbering Inspection System
The Banknote Numbering Inspection System is designed for high-speed numbering presses used in banknote printing facilities.
High-Resolution Camera Modules
Industrial cameras capture images of serial numbers printed on banknote sheets as they pass through the numbering press.
Precision Illumination System
Specialized lighting systems provide controlled illumination of the numbering area to ensure reliable capture of printed digits and characters.
OCR / OCV Processing Engine
Advanced optical character recognition algorithms read the printed serial numbers and verify their correctness.
Sequence Verification Module
The system tracks serial number progression and validates the numbering sequence across production batches.
System Processing Unit
A high-performance processing unit manages image acquisition, inspection algorithms, and communication with the numbering press.
Operator Monitoring Station
The operator interface allows production teams to monitor numbering verification results and review detected numbering errors.

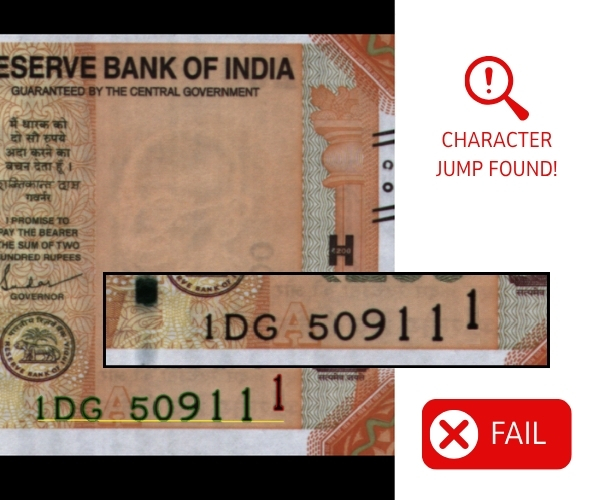

Key System Capabilities
The Banknote Numbering Inspection System provides capabilities specifically designed for numbering verification in currency production:
- Automated OCR / OCV inspection of serial numbers
- Real-time verification of numbering sequence
- Detection of missing or duplicated numbers
- Detection of unreadable or distorted digits
- Defect image recording and reporting
- Production statistics and traceability monitoring
These capabilities ensure that numbering operations maintain the strict control required in banknote production environments.

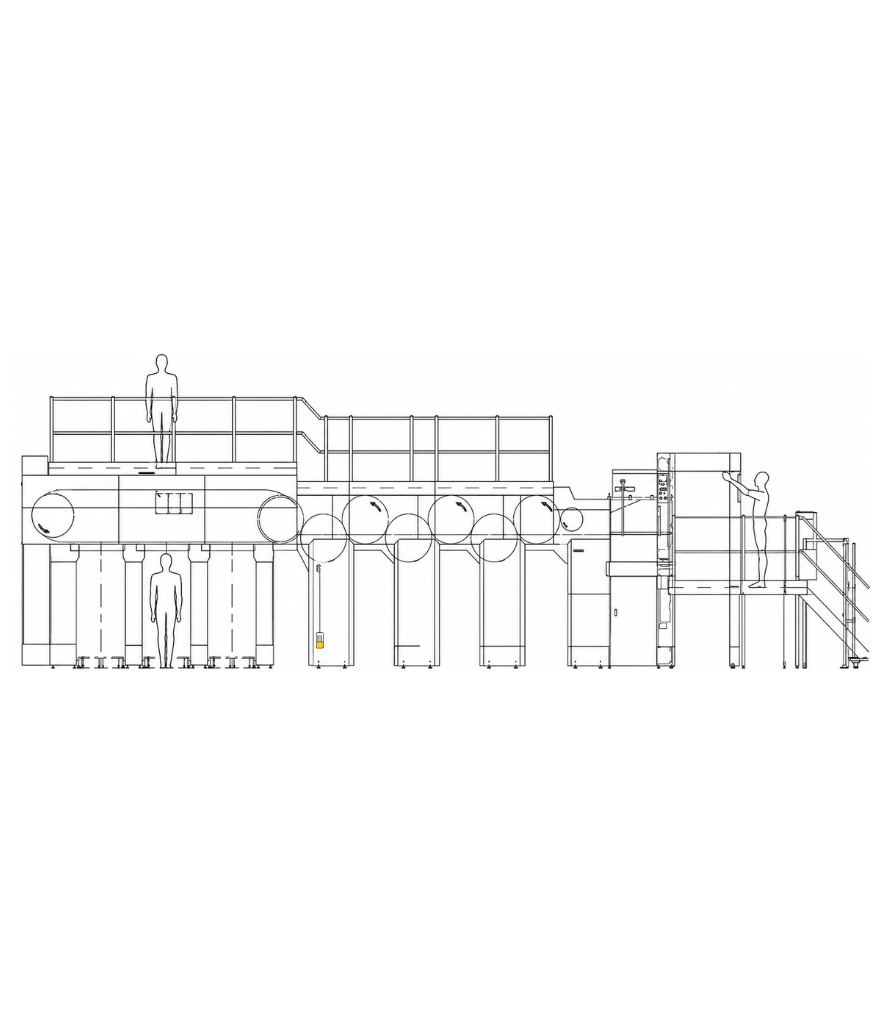

Integration with Numbering Presses
The OEM integration solution is designed for direct integration with new letterpress numbering presses used in banknote printing facilities.
Typical integration features include:
- Installation of camera modules along the sheet transport path
- Synchronization with press speed and sheet movement
- Communication with numbering press control systems
- Automated alerts when numbering errors are detected
This integration allows the inspection system to operate seamlessly with the numbering press without affecting production performance.

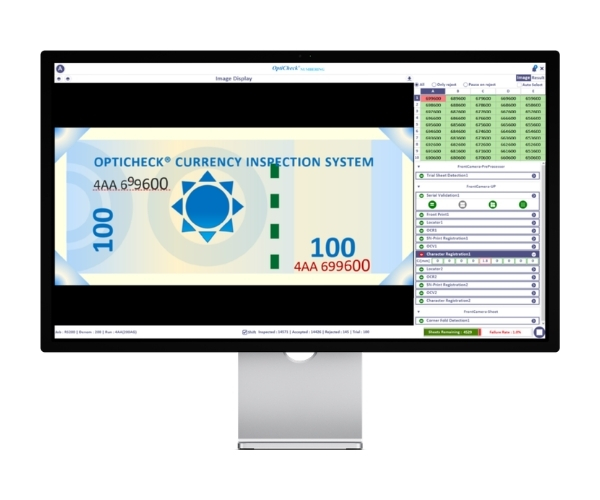

Operator Interface & Workflow
The operator interface provides an intuitive environment for monitoring numbering inspection results during production.
Key features include:
- Real-time visualization of inspected serial numbers
- OCR results display and verification
- Defect image display and review
- Configurable inspection parameters
- Numbering sequence monitoring and reporting
Operators can quickly identify numbering issues and take corrective actions to maintain accurate production.
Benefits
Advantages of Serial Number Verification
Implementing an OEM-integrated Banknote Numbering Inspection System provides several advantages for banknote printing facilities:
01
Automated verification of serial numbers during production
02
Prevention of incorrect numbering sequences
03
Improved traceability of banknote production
04
Reduced risk of numbering errors in circulation currency
05
Enhanced quality control in banknote manufacturing
By verifying serial numbers during the numbering process, manufacturers can ensure that every banknote sheet carries accurate and compliant identification numbers.
