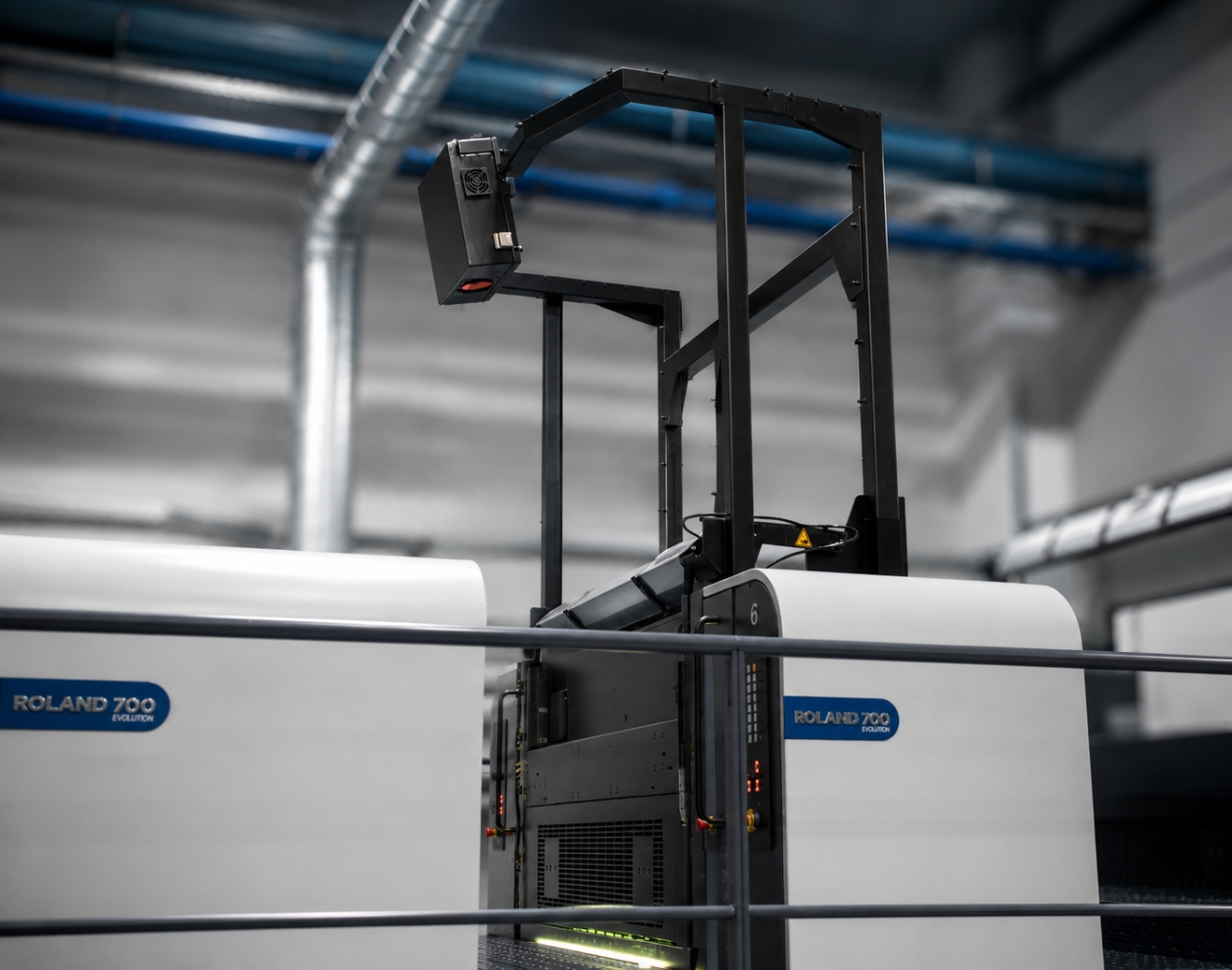

Printing Overview
Inline Sheet Inspection System
Sheet-fed printing is widely used in industries such as commercial printing, carton packaging, security printing, and high-value printed products. These printing processes involve the production of individual sheets at high speeds, where maintaining consistent print quality across every sheet is critical.
Lucid Imaging’s Inline Sheet Inspection System enables automated inspection of printed sheets directly on sheet-fed printing presses. The system monitors each printed sheet in real time, detecting printing defects such as missing elements, colour deviations, mis-registration, and artwork inconsistencies. By identifying defects immediately during production, the system helps printers maintain consistent quality while minimizing waste and production interruptions.
Printing Stage
Real-Time Inspection for Sheet-Fed Printing

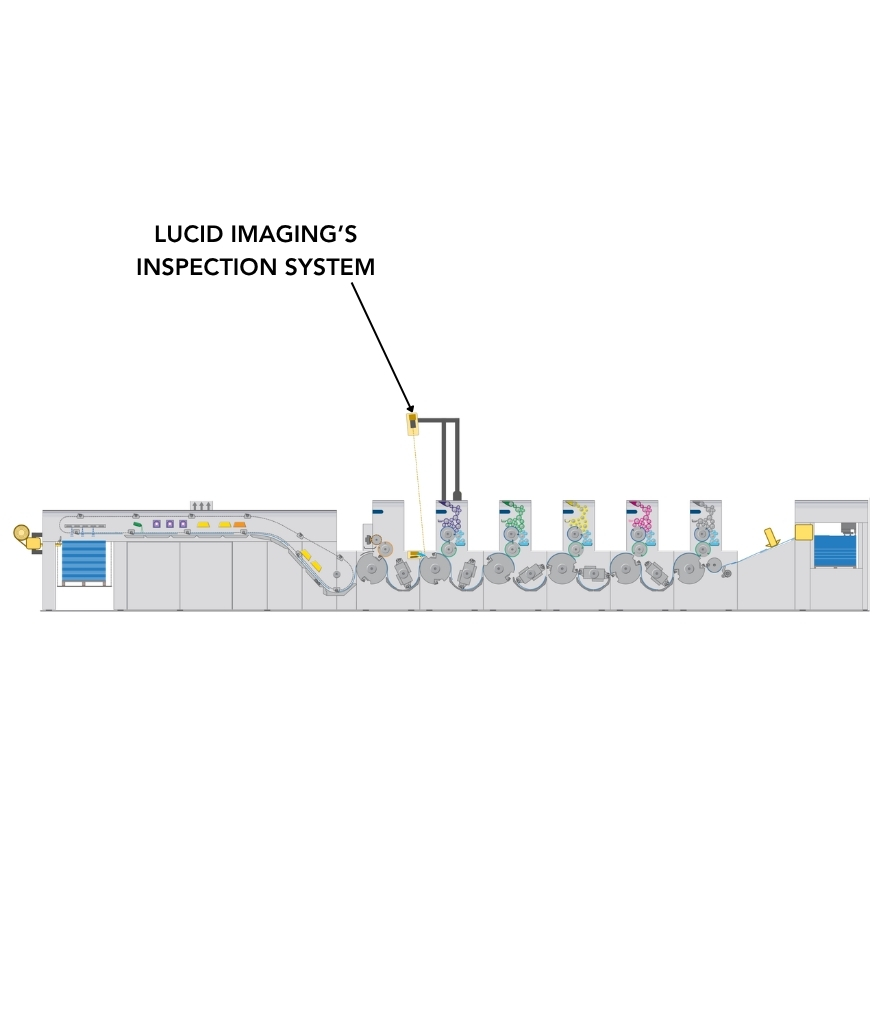

Inline sheet inspection is performed during the printing process on sheet-fed presses, where individual sheets pass through multiple printing units before being delivered to the output stacker.
The inspection system captures images of each printed sheet as it moves through the press, allowing real-time verification of print quality.
This inspection stage helps printing companies to:
01
Real-Time Detection
Detect printing defects as soon as they occur
02
Issue Identification
Identify issues with plates, ink flow, or press alignment
03
Waste Prevention
Prevent large quantities of defective sheets from being produced
Inline inspection is particularly valuable in applications where print quality and accuracy are critical, such as packaging cartons, commercial print products, and security print materials.
Inspection Scope
Comprehensive Inspection for Sheet Printing
The Inline Sheet Inspection System verifies both visual print quality and printed information on every sheet.
Typical inspection scope includes:
Print Quality Inspection
Missing Print Detection
Ink Smearing or Ink Spread
Colour deviation detection
Print density variations
Print Registration Errors
Artwork & Graphic Inspection
Logo verification
Graphic alignment verification
Detection of missing design elements
Detection of printing distortions
Code & Data Inspection
Barcode and QR code verification
OCR / OCV inspection
Serial number verification
Variable data verification
This inspection ensures that each printed sheet meets the required quality and information accuracy standards.
System Architecture
High-Performance Architecture for Sheet Inspection
The Inline Sheet Inspection System is designed to operate reliably in high-speed sheet-fed printing environments, where inspection must be synchronized with individual sheet movement.
High-Resolution Camera System
Industrial cameras capture images of every printed sheet as it passes through the inspection station. The camera system is designed to capture fine print details and detect defects even at high production speeds.
Precision Lighting System
Specialized lighting ensures uniform illumination across the sheet surface. Proper lighting is essential for detecting colour variations, print defects, and surface irregularities.
Real-Time Image Processing
Advanced image processing software analyzes captured sheet images in real time. The software compares each sheet with a reference image and automatically detects deviations from the approved artwork.
System Processing Unit
A dedicated processing unit manages image acquisition, inspection algorithms, and communication with the printing press. Inspection data is processed continuously to ensure accurate defect detection.
Operator Monitoring Station
The operator interface provides real-time monitoring of inspection results, allowing operators to review detected defects and manage inspection parameters during production.

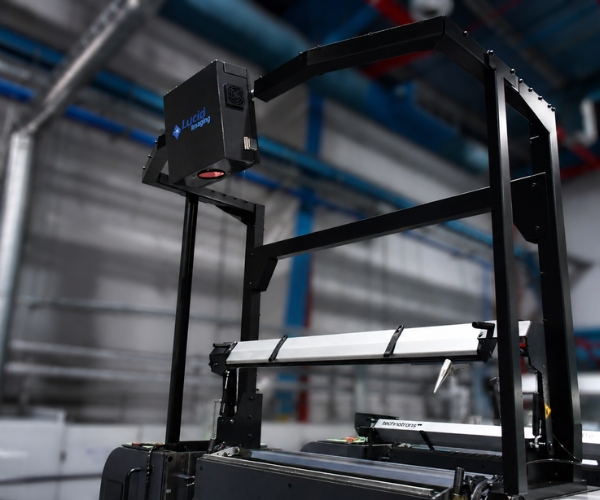

Key System Capabilities
The Inline Sheet Inspection System provides several advanced capabilities for sheet-fed printing operations:
- Inspection of every printed sheet in real time
- Automatic comparison with reference artwork
- Detection of print defects and mis-registration
- Barcode and code verification
- Variable data inspection
- Defect image recording and reporting
- Production statistics and quality monitoring
These capabilities help printers maintain consistent quality across entire print runs.

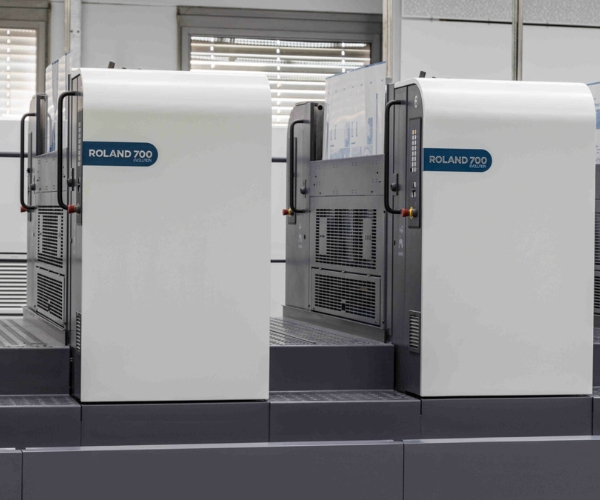

Integration with Printing Lines
The system can be integrated with a wide range of sheet-fed printing presses used in commercial and packaging printing.
The inspection solution is designed to work with presses from leading manufacturers as well as other sheet-fed printing equipment used in the industry.
Examples of compatible press manufacturers include:
- Heidelberg
- Koenig & Bauer (KBA)
- Komori
- Manroland
- Other sheet-fed offset printing presses
The inspection system synchronizes with the sheet movement and press speed, allowing seamless integration without affecting production performance.

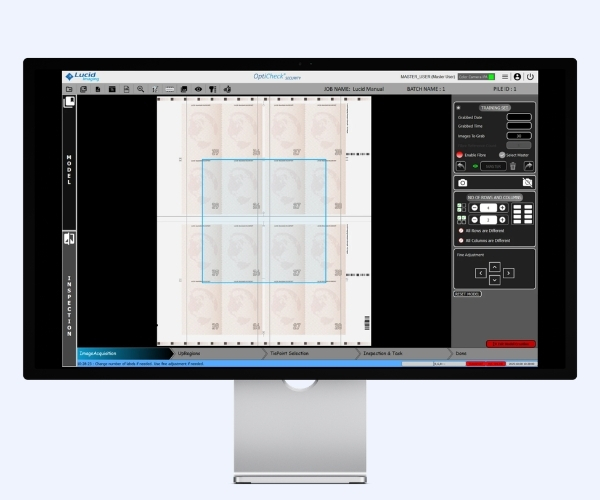

Operator Interface & Workflow
The operator interface allows production teams to monitor inspection results and manage the inspection process efficiently.
Key features include:
- Real-time visualization of inspected sheets
- Defect image display and review
- Configurable inspection parameters
- Defect classification and reporting
- Production statistics and quality reports
Operators can quickly identify the location and nature of defects, enabling rapid corrective action during production.
Benefits
Improving Efficiency in Sheet Printing
Implementing an Inline Sheet Inspection System provides several advantages for printing companies:
01
Early detection of printing defects
02
Reduced material waste and reprints
03
Improved production efficiency
04
Consistent print quality across entire print runs
05
Enhanced quality control for high-value printed products
By inspecting every printed sheet during production, the system helps ensure that only high-quality sheets proceed to finishing and downstream processes.
Get the Full Guide
Complete System Overview
Get detailed insights into our sheet inspection solutions designed for high-precision and high-quality print production.
