Metal Surface Inspection
Metal sheets and coils are widely used in industries such as automotive manufacturing, construction materials, industrial equipment, packaging, and appliance production. These materials must meet strict quality standards because surface defects can affect both the mechanical performance and visual appearance of the final product.
Metal sheets are typically produced through processes such as rolling, annealing, coating, galvanizing, and finishing, where large metal coils are processed at high speeds. During these manufacturing stages, defects such as scratches, dents, cracks, scale marks, coating defects, or surface contamination may occur.
Lucid Imaging provides machine vision solutions designed for surface inspection of metal sheets and coils during manufacturing and processing operations. The system continuously monitors the moving metal surface and detects defects in real time, enabling manufacturers to identify production issues early and maintain consistent product quality.
Automated inspection helps metal manufacturers improve process stability, reduce production waste, and ensure that only high-quality material proceeds to downstream processing.
inspection systems
Where This Inspection Is Used
Metal surface inspection systems are used in metal production facilities and metal processing plants where sheets or coils are produced and processed.
Typical inspection applications include:
Inspection Applications
- Inspection of metal sheets during rolling processes
- Detection of surface defects during coating or galvanizing operations
- Inspection of metal coils during finishing or processing stages
- Monitoring of metal surface quality during cutting or forming operations
Deployment Areas
- Steel sheets and coils
- Aluminum sheets and strips
- Coated or galvanized metal materials
- Industrial metal components
Automated inspection allows manufacturers to maintain consistent metal quality across high-speed production lines.
Inspection Scope
Ensuring Defect-Free Metal Surfaces and Coating Quality
The Metal Surface Inspection System verifies surface integrity, coating quality, and structural consistency of metal sheets and coils.
Typical inspection scope includes:
Surface Defect Detection
Scratches or abrasion marks on the metal surface
Dents or surface deformations
Cracks or material fractures
Scale marks or rolling defects
Contamination Detection
Dirt, oil, or residue on the metal surface
Foreign particles embedded in the material
Contamination introduced during processing
Coating & Surface Treatment Inspection
Coating irregularities or defects
Uneven galvanizing or finishing layers
Defects caused during surface treatment processes
Material Consistency Monitoring
Monitoring of surface uniformity across the metal coil width
Detection of process-related surface variations
Identification of rolling or processing defects
These inspections ensure that metal materials meet the required quality standards for automotive, industrial, or construction applications.
System Architecture
Scalable System for Efficient Metal Quality Control
The Metal Surface Inspection System is designed for continuous inspection in high-speed metal production environments.

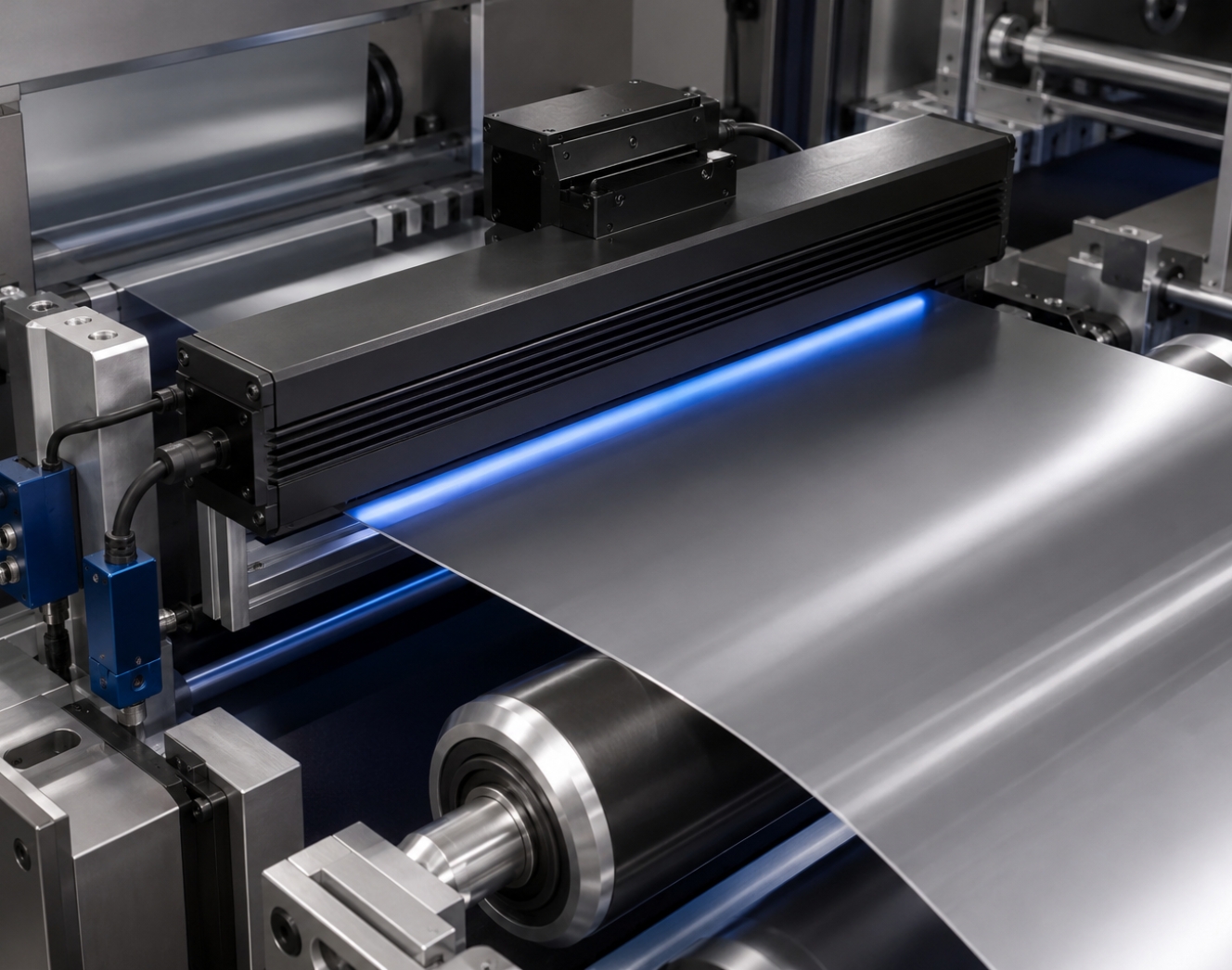

Line-Scan Camera Modules
High-resolution line-scan cameras capture detailed images of the moving metal surface across its full width.
Precision Illumination System
Specialized lighting systems highlight surface irregularities and texture variations on reflective metal surfaces.
Real-Time Image Processing Software
Advanced inspection software analyzes captured images in real time and identifies surface defects based on defined inspection parameters.
System Processing Unit
A high-performance processing system manages image acquisition, defect detection algorithms, and communication with the production line.
Operator Monitoring Station
The operator interface allows production teams to monitor inspection results, review detected defects, and configure inspection parameters.
Key System Capabilities
The Metal Surface Inspection System provides capabilities designed for high-speed metal manufacturing lines:
- Continuous inspection of metal sheets and coils during production
- Detection of scratches, dents, and rolling defects
- Monitoring of coating and surface treatment quality
- Automated defect classification and reporting
- Real-time alerts for production issues
- Statistical monitoring of metal production quality
These capabilities allow manufacturers to maintain consistent metal surface quality and stable production processes.
Integration with Metal Production Lines
The inspection system integrates with metal rolling mills and metal processing equipment.
Typical integration features include:
- Installation of camera modules across the metal sheet or coil width
- Synchronization with production line speed and encoder signals
- Communication with rolling mill or coating line control systems
- Automatic tracking or marking of detected defects
This integration allows inspection to operate seamlessly within metal manufacturing workflows.

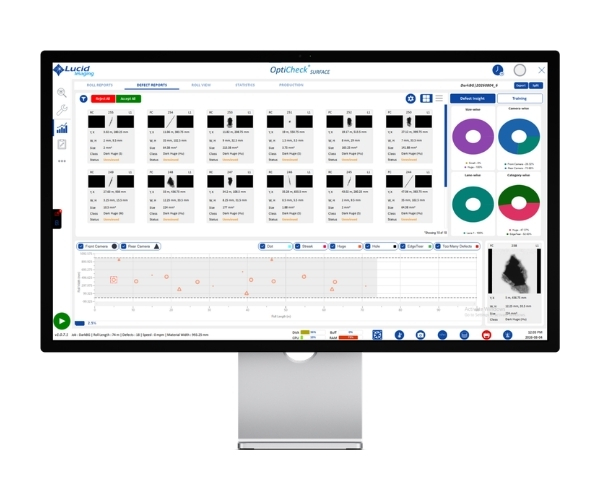

Operator Interface & Workflow
The operator interface provides tools for monitoring inspection results and maintaining production quality.
Key features include:
- Real-time visualization of inspected metal surfaces
- Defect image display and classification
- Configurable inspection parameters and thresholds
- Defect mapping across the metal width
- Production statistics and inspection reports
Operators can quickly identify defect patterns and adjust production parameters to maintain stable material quality.
Benefits
Ensuring Reliable and High-Quality Metal Output
Implementing a Metal Surface Inspection System provides several advantages for metal manufacturers:
01
Early detection of surface defects during production
02
Improved monitoring of rolling and coating processes
03
Reduced waste and defective material
04
Improved consistency of metal products
05
Enhanced quality assurance for downstream applications
By inspecting metal surfaces continuously during production, manufacturers can ensure that only high-quality metal materials proceed to automotive, industrial, and construction applications.
Get the Full Guide
Metal Quality Control Solutions
Download the PDF to explore how our system identifies scratches, cracks, and surface defects in real time.
