VDP Inspection System
Real-Time Variable Data Inspection for Zero-Error Printing
The VDP Inspection System from Lucid Imaging is an advanced vision-based solution for real-time verification of variable data printing. Designed for high-speed production, it ensures every piece of variable data such as text, barcodes, and 2D codes is correct, readable, and exactly as intended.
Solution Overview
High-Resolution Inline Inspection for Text, Barcodes, and 2D Codes
Variable data is critical for traceability, authentication, and compliance, but it is also one of the most error-prone aspects of printing. The VDP Inspection System continuously inspects alphanumeric text, 1D barcodes, and 2D codes to verify correctness against intended data.
Using high-resolution imaging and intelligent inspection algorithms, the system detects incorrect, missing, duplicated, or unreadable variable elements in real time. This prevents costly errors, reduces reprints, and ensures consistent data integrity across high-volume production environments.
Where This Solution Is Used
The VDP Inspection System is designed for seamless deployment across variable-data workflows:
- Inline on printing and converting lines
- During variable data printing stages, without slowing production
- Before finishing or dispatch, to prevent faulty output
- High-speed environments, where manual verification is not feasible
This placement ensures errors are detected immediately, not after production.
Inspection Challenges
Key problems this Solution Solves
Incorrect Variable Data
Detect mismatched data against approved variable content instantly.

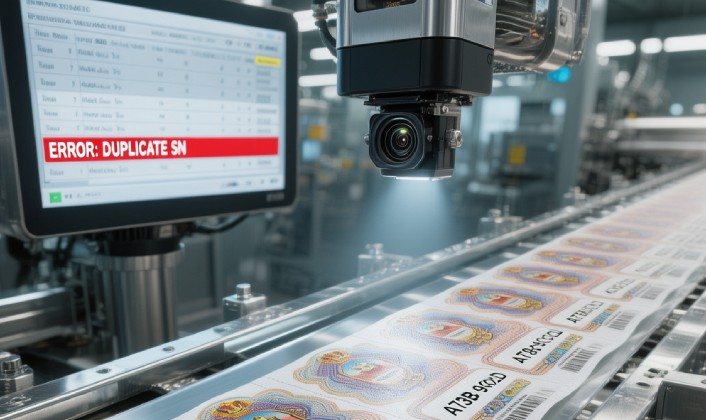

Missing or Duplicated Codes
Identify absent, repeated, or incorrect serial elements.
Unreadable 1D & 2D Codes
Detect poor print quality affecting barcode readability.
Late Data Error Detection
Prevent costly reprints caused by delayed verification.
High-Speed Manual Limitations
Eliminate inspection errors on fast production lines.

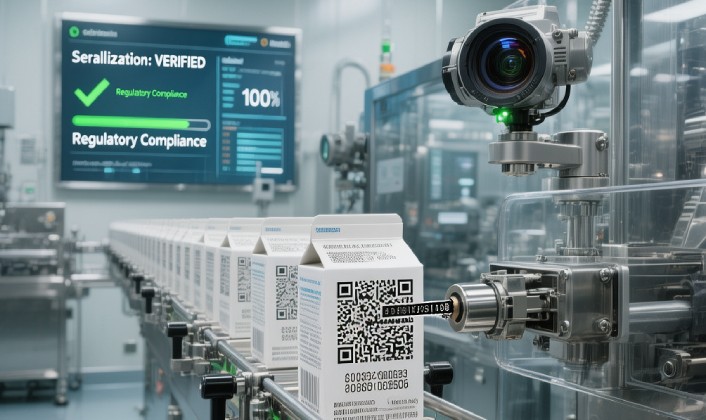

Traceability & Compliance Risks
Ensure reliable data integrity for regulated workflows.
How It WOrks
How the Solution Works
The VDP Inspection System operates through a structured real-time workflow:
01
High-Resolution Image Capture
Inspect every printed item at full production speed.
02
OCR & Code Decoding
Read alphanumeric text, barcodes, and 2D codes accurately.
03
Data-to-Reference Verification
Compare printed variable data with intended source content.
04
Readability & Quality Assessment
Evaluate code clarity and print integrity automatically.
05
Real-Time Alerts & Outputs
Trigger corrective actions upon detection of deviations.
06
Data Logging & Reporting
Store inspection results for traceability and audits.
Scope of Inspection
The system supports comprehensive variable data inspection, including:
Alphanumeric Text Verification
Validate accuracy of variable text and characters.
Serial Number Validation
Ensure correct sequencing and uniqueness of serials.
1D Barcode Inspection
Read and verify linear barcode integrity and compliance.
2D Code Verification
Decode and validate QR and DataMatrix codes.
Data Accuracy Detection
Identify missing, duplicated, or incorrect variable elements.
Print Quality Assessment
Detect smudging, distortion, and readability degradation.
Item & Batch-Level Reporting
Generate structured defect logs for full traceability.
OUR Industries
Industries Applicable
The VDP Inspection System is used across industries where data accuracy and traceability are critical:
Hologram & Authentication
Ensure secure, accurate variable data in authentication products.
Each industry benefits from reduced risk, improved efficiency, and reliable variable data integrity.
Contact us
Ensure Every Variable Data Element Is Right - Every Time
Eliminate variable data errors and protect traceability with real-time VDP inspection built for high-speed production.
Connect with our experts to configure a VDP Inspection System for your application.
Customer Testimonials
What Our Customers Say
FAQs
Frequently Asked Questions
Find answers to common questions about system capabilities, integration, deployment flexibility, and performance accuracy.
Can the system inspect variable data at full production speed?
Yes. The system performs real-time inspection without impacting throughput.
Does it support both barcodes and 2D codes?
Absolutely. It inspects 1D barcodes and 2D codes along with alphanumeric text.
Can unreadable or poor-quality codes be detected?
Yes. The system checks readability and print quality, not just presence.
Is the system configurable for different data formats?
Yes. It supports multiple formats, layouts, and data rules.
Does VDP inspection reduce waste and rework?
Yes. Early detection of variable data errors significantly reduces reprints and operational losses.
