Single Sheet Inspection System
High-Resolution Single Sheet Inspection for Early Defect Detection
The Single Sheet Inspection System from Lucid Imaging is designed for offline sampling and quality verification in high-security printing environments. By comparing printed sheets against an approved master or original PDF, the system detects even the finest deviations before issues escalate in production.
Solution Overview
High-Resolution Sheet Comparison for Early Error Detection
The Single Sheet Inspection System is a high-resolution, scan-bed-based inspection solution used to verify production samples in security and banknote printing. It enables precise comparison of a printed sheet against a pre-approved master image or the original print PDF, ensuring absolute fidelity to design and security specifications.
This solution is ideal for early-stage quality checks, process validation, and investigation of suspected issues. By identifying deviations at the sampling stage, manufacturers can take corrective actions quickly, reduce production risk, and maintain consistent compliance with stringent quality standards.
Where This Solution Is Used
The system is used as an offline inspection and verification tool, independent of the press:
- Sampling inspection during production
- Pre-production and make-ready validation
- Quality audits and reference checks
- Investigation of suspected defects or deviations
- Approval checks before long production runs
This placement makes it a critical tool for quality assurance teams and security printing supervisors.
Inspection Challenges
Key problems this Solution Solves
Missed Fine Defects
Detect subtle defects overlooked during manual sampling.
Artwork Comparison Difficulties
Enable accurate comparison against original master designs.
Color & Registration Deviations
Identify early shifts in tone and alignment.
Repeat Defect Risks
Prevent recurring defects across extended production runs.
Subjective Quality Decisions
Eliminate human bias in security print evaluation.
Limited Root-Cause Tools
Provide analytical data for structured defect investigation.
How It WOrks
How the Solution Works
The Single Sheet Inspection System follows a precise inspection workflow:
01

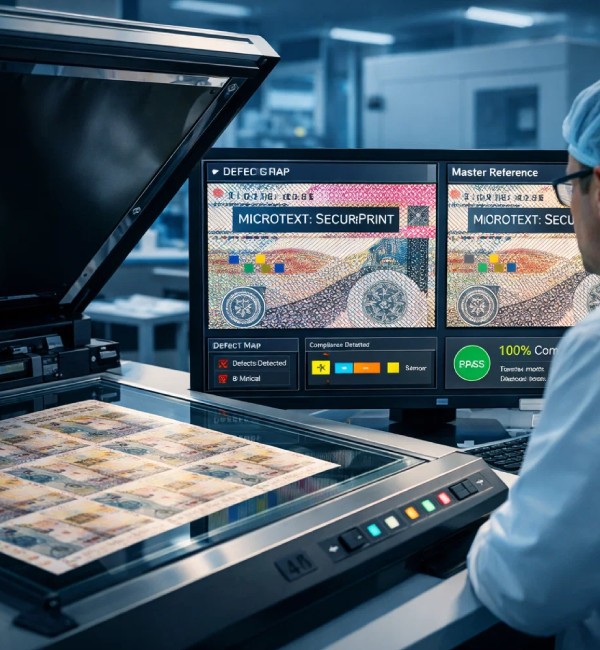

High-Resolution Scan-Bed Capture
Digitize entire printed sheets with precision imaging.
02
Master Image Alignment
Align scanned sheet with approved PDF or master artwork.
03
Pixel-Level Comparison Engine
Detect microscopic deviations in print and layout.
04
Defect Highlighting & Classification
Flag color, print, and registration inconsistencies clearly.
05
Reporting & Documentation Workflow
Generate visual reports supporting corrective actions.
06

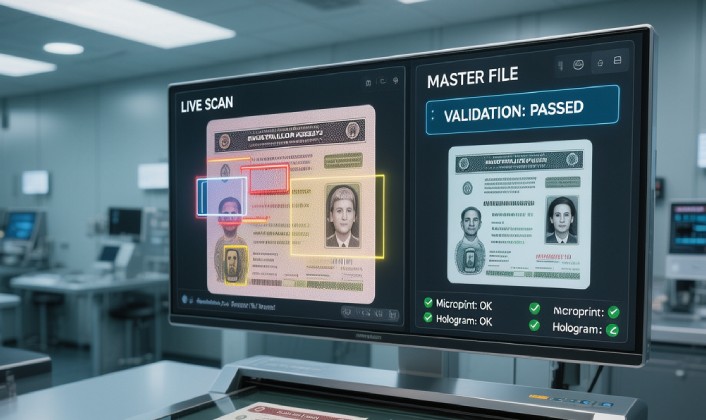

Side-by-Side Comparison
Enable quick master-to-sample visual verification.
Scope of Inspection
The Single Sheet Inspection System supports detailed inspection of:
Fine Print Defect Detection
Identify missing elements and subtle print anomalies.
Color & Shade Verification
Detect tonal deviations from approved references.
Layer Registration Accuracy
Verify precise alignment between printed layers.
Micro-Detail Integrity
Inspect line thickness and fine security details.
Security Artwork Validation
Confirm background patterns match approved designs.
Localized Defect Identification
Detect isolated defects on sampled sheets.
Visual Difference Mapping
Generate structured deviation maps for analysis.
OUR Industries
Industries Applicable
This solution is purpose-built for industries with zero tolerance for deviation:
These applications benefit from early detection, precise comparison, and strict quality compliance.
Contact us
Detect Deviations Early. Protect High-Value Production.
Strengthen your quality assurance process with high-resolution, reference-based single sheet inspection.
Speak with our experts to configure a system aligned with your security printing workflow.
Customer Testimonials
What Our Customers Say
FAQs
Frequently Asked Questions
Find answers to common questions about system capabilities, integration, deployment flexibility, and performance accuracy.
Does the system compare prints with the original PDF file?
Yes. The system supports direct comparison with approved master images or original PDF files.
Is this solution used inline with production?
No. It is an offline sampling and verification system, independent of press operation.
Can very fine defects be detected?
Absolutely. The system is designed for high-resolution, pixel-level inspection.
Is the system suitable for audits and quality documentation?
Yes. Inspection results and visual difference maps can be stored and documented.
Who typically uses this system?
It is commonly used by quality assurance teams, supervisors, and security printing authorities.
