Hologram Inspection System
Reliable Hologram Inspection for Consistent Authentication & Brand Protection

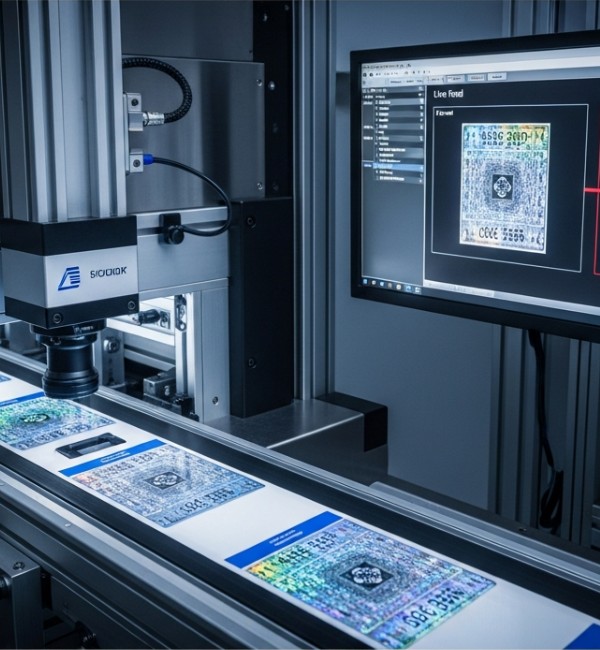

The Hologram Inspection System from Lucid Imaging enables thorough, automated inspection of holograms and holographic security features. It ensures every hologram meets defined quality and security standards protecting against defects that could compromise authentication, compliance, or brand trust.
Solution Overview
Advanced 3D Connector Pin Inspection for Precision Assembly
Holograms are critical authentication elements used to prevent counterfeiting and protect revenue and brands. The Hologram Inspection System verifies hologram quality by inspecting both holographic features and associated printed content against approved references.
The system detects physical defects, alignment issues, design inconsistencies, and finishing errors across different hologram orientations. By providing objective, repeatable inspection results, it helps manufacturers maintain consistent hologram quality across high-speed and high-mix production environments.
Where This Solution Is Used
The Hologram Inspection System can be deployed at multiple stages of hologram production and application:
- Inline during hologram application or printing
- Post-application inspection, before cutting or finishing
- After die-cutting or slitting, to verify alignment and removal
- Before dispatch, ensuring only compliant holograms move forward
This flexible placement allows inspection without disrupting production flow.
Inspection Challenges
Key problems this Solution Solves
Surface Damage & Foil Scratches
Detect scratches, holes, and damaged holographic foil areas.
Incomplete Foil Transfer
Identify uneven, missing, or excess hologram foil regions.
Missing Holostrips
Detect partially applied or absent holographic strips.
Alignment & Orientation Errors
Identify rotation, shift, and placement inconsistencies instantly.
Design & Pattern Deviations
Validate hologram artwork against approved master references.
Print & Color Inconsistencies
Detect text errors and subtle color variations accurately.
Cutting & Waste Residue Issues
Verify die-cut precision and unwanted material removal.
How It WOrks
How the Solution Works
The Hologram Inspection System follows a structured inspection workflow:
01
Multi-Orientation Image Capture
Inspect holograms under optimized imaging configurations.
02
Reference-Based Design Validation
Compare hologram patterns with approved master artwork.
03
Defect Detection Algorithms
Identify physical, optical, and positional inconsistencies.
04
Cutting & Removal Verification
Ensure precise die-cut alignment and clean material separation.
05
Clear Defect Visualization
Highlight issues for quick operator understanding.
06
Defect Logging & Reporting
Record inspection data for quality control and audits.
Scope of Inspection
The system supports a comprehensive inspection scope, including:
Surface Integrity Verification
Detect scratches, holes, and physical foil damage.
Foil Transfer Accuracy
Inspect uniformity and completeness of hologram foil application.
Holostrip Presence Check
Ensure correct placement and structural integrity of strips.
Alignment & Orientation Control
Validate correct hologram positioning and angular alignment.
Artwork & Pattern Inspection
Confirm hologram design matches approved security patterns.
Text & Color Validation
Detect printed text deviations and color inconsistencies.
Die-Cut & Waste Removal Inspection
Verify cutting precision and absence of residual material.
OUR Industries
Industries Applicable
The Hologram Inspection System is used across industries where authentication and anti-counterfeiting are critical:
Contact us
Ensure Every Hologram Delivers Its Security Promise
Protect your products, brands, and revenue with automated hologram inspection built for accuracy and reliability.
Speak with our experts to configure a Hologram Inspection System for your production line.
Customer Testimonials
What Our Customers Say
FAQs
Frequently Asked Questions
Find answers to common questions about system capabilities, integration, deployment flexibility, and performance accuracy.
Can the system detect partially transferred or missing hologram foil?
Yes. It reliably detects uneven, missing, or excess foil areas.
Does the system verify hologram design and printed content?
Absolutely. It compares hologram patterns and printed text or graphics against approved references.
Can alignment and orientation issues be detected?
Yes. The system identifies misalignment, rotation, and orientation errors.
Is the solution suitable for high-speed production lines?
Yes. Inspection is performed in real time without slowing production.
Does the system help reduce counterfeiting risks?
Yes. By ensuring consistent hologram quality, it strengthens authentication and anti-counterfeiting measures.
